Mercedes-Benz Sprinter dimensions

W907/W910 (2018-present)

Published exterior dimensions for all 7 Mercedes-Benz Sprinter panel van sizes, with the wheelbase, the load floor height, the maximum internal load width and height, and the unladen weight you start a conversion from. Every size below can be loaded into the free 3D planner.

The Sprinter is the van most people picture when they picture a conversion, and the range is the main reason why: seven bodies from a 5,267 mm L1H1 that parks like a large estate to a 7,367 mm L4H3 with 4,810 mm of floor behind the bulkhead. Two of those seven are modelled in both front- and rear-wheel drive, and where you get the choice it costs you height: the rear-wheel-drive load floor sits up to 629 mm off the ground against 566 mm for the equivalent front-wheel-drive body, which is 63 mm you never get back once the bed is in.

Plan a Sprinter conversion - free

Mercedes-Benz Sprinter L1H1 FWD

The Mercedes-Benz Sprinter L1H1 FWD is 5,267 mm (17 ft 3 in) long, 2,020 mm (6 ft 8 in) wide and 2,356 mm (7 ft 9 in) tall, on a 3,259 mm (10 ft 8 in) wheelbase, with a load floor 576 mm (1 ft 11 in) off the ground, and 2,732 mm (9 ft) of floor behind the bulkhead. It weighs about 2,105 kg (4,641 lb) unladen.

Also known as: Short wheelbase, standard roof.

Front-wheel drive

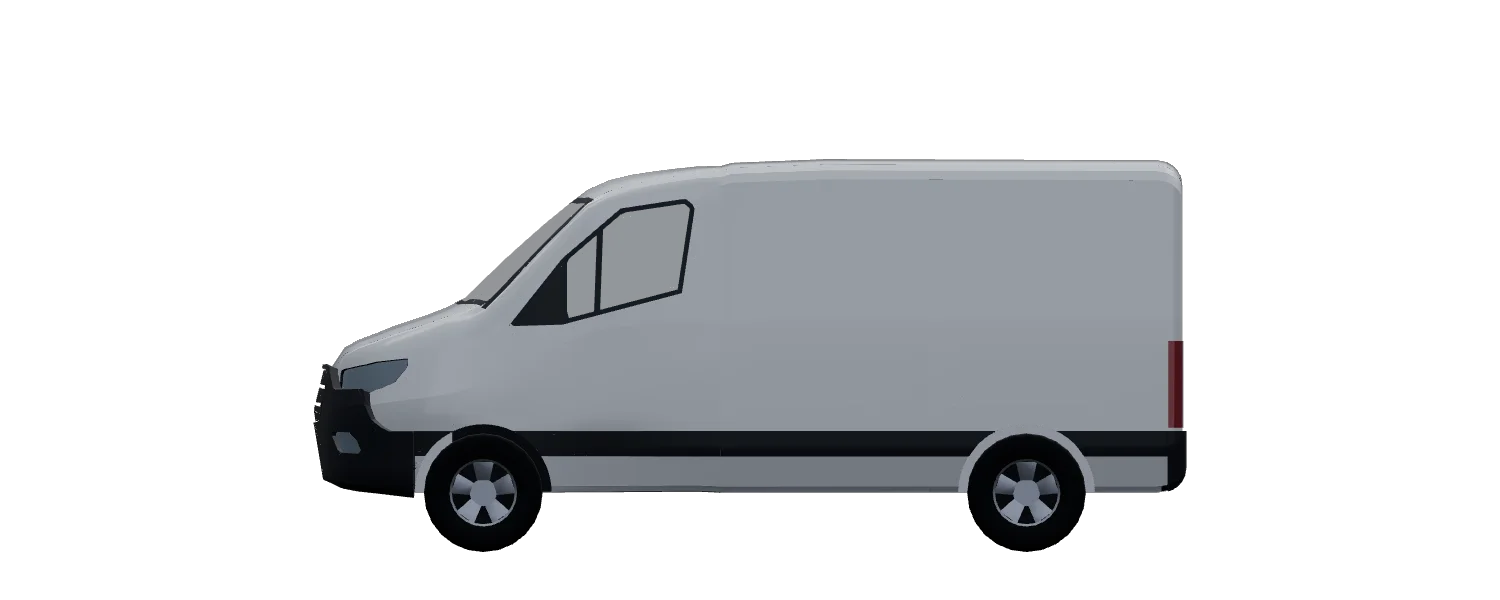

Side elevation of a Mercedes-Benz Sprinter L1H1 FWD

Mercedes-Benz Sprinter L1H1 FWD dimensions
Measurement	Metric	Imperial
Overall length	5,267 mm	17 ft 3 in
Overall width (excluding mirrors)	2,020 mm	6 ft 8 in
Overall height	2,356 mm	7 ft 9 in
Wheelbase	3,259 mm	10 ft 8 in
Side door opening	1,250 mm	4 ft 1 in
Load length at floor	2,732 mm	9 ft
Maximum internal load width	1,787 mm	5 ft 10 in
Maximum internal load height	1,789 mm	5 ft 10 in
Load floor height	576 mm	1 ft 11 in
Kerb weight (approximate)	2,105 kg	4,641 lb

Plan a Sprinter L1H1 FWD layout Compare with another van

Mercedes-Benz Sprinter L2H1 FWD

The Mercedes-Benz Sprinter L2H1 FWD is 5,932 mm (19 ft 6 in) long, 2,020 mm (6 ft 8 in) wide and 2,351 mm (7 ft 9 in) tall, on a 3,924 mm (12 ft 10 in) wheelbase, with a load floor 569 mm (1 ft 10 in) off the ground, and 3,397 mm (11 ft 2 in) of floor behind the bulkhead. It weighs about 2,155 kg (4,751 lb) unladen.

Also known as: Medium wheelbase, standard roof.

Front-wheel drive

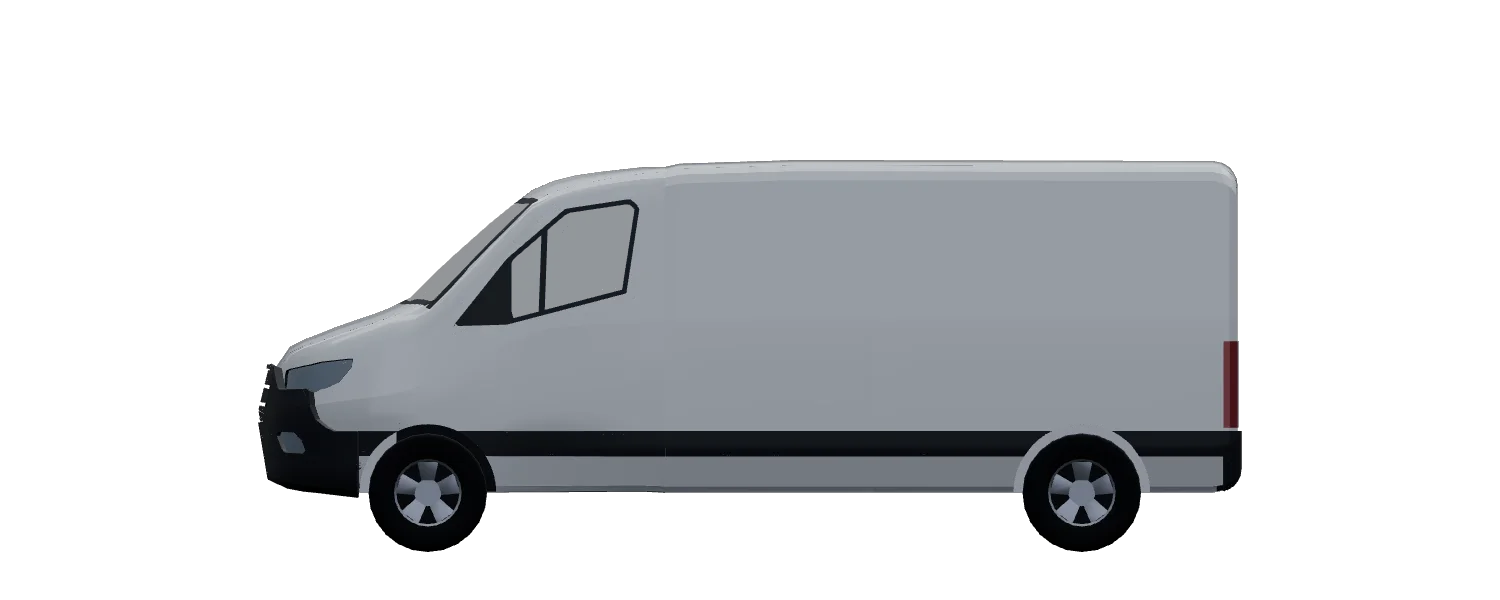

Side elevation of a Mercedes-Benz Sprinter L2H1 FWD

Mercedes-Benz Sprinter L2H1 FWD dimensions
Measurement	Metric	Imperial
Overall length	5,932 mm	19 ft 6 in
Overall width (excluding mirrors)	2,020 mm	6 ft 8 in
Overall height	2,351 mm	7 ft 9 in
Wheelbase	3,924 mm	12 ft 10 in
Side door opening	1,250 mm	4 ft 1 in
Load length at floor	3,397 mm	11 ft 2 in
Maximum internal load width	1,787 mm	5 ft 10 in
Maximum internal load height	1,789 mm	5 ft 10 in
Load floor height	569 mm	1 ft 10 in
Kerb weight (approximate)	2,155 kg	4,751 lb

Plan a Sprinter L2H1 FWD layout Compare with another van

Mercedes-Benz Sprinter L2H1 RWD

The Mercedes-Benz Sprinter L2H1 RWD is 5,932 mm (19 ft 6 in) long, 2,020 mm (6 ft 8 in) wide and 2,351 mm (7 ft 9 in) tall, on a 3,924 mm (12 ft 10 in) wheelbase, with a load floor 629 mm (2 ft 1 in) off the ground, and 3,272 mm (10 ft 9 in) of floor behind the bulkhead. It weighs about 2,215 kg (4,883 lb) unladen.

Also known as: Medium wheelbase, standard roof.

Rear-wheel drive

Side elevation of a Mercedes-Benz Sprinter L2H1 RWD

Mercedes-Benz Sprinter L2H1 RWD dimensions
Measurement	Metric	Imperial
Overall length	5,932 mm	19 ft 6 in
Overall width (excluding mirrors)	2,020 mm	6 ft 8 in
Overall height	2,351 mm	7 ft 9 in
Wheelbase	3,924 mm	12 ft 10 in
Side door opening	1,250 mm	4 ft 1 in
Load length at floor	3,272 mm	10 ft 9 in
Maximum internal load width	1,787 mm	5 ft 10 in
Maximum internal load height	1,719 mm	5 ft 8 in
Load floor height	629 mm	2 ft 1 in
Kerb weight (approximate)	2,215 kg	4,883 lb

Plan a Sprinter L2H1 RWD layout Compare with another van

Mercedes-Benz Sprinter L2H2 FWD

The Mercedes-Benz Sprinter L2H2 FWD is 5,932 mm (19 ft 6 in) long, 2,020 mm (6 ft 8 in) wide and 2,638 mm (8 ft 8 in) tall, on a 3,924 mm (12 ft 10 in) wheelbase, with a load floor 566 mm (1 ft 10 in) off the ground, and 3,397 mm (11 ft 2 in) of floor behind the bulkhead. It weighs about 2,195 kg (4,839 lb) unladen.

Also known as: Medium wheelbase, high roof.

Front-wheel drive

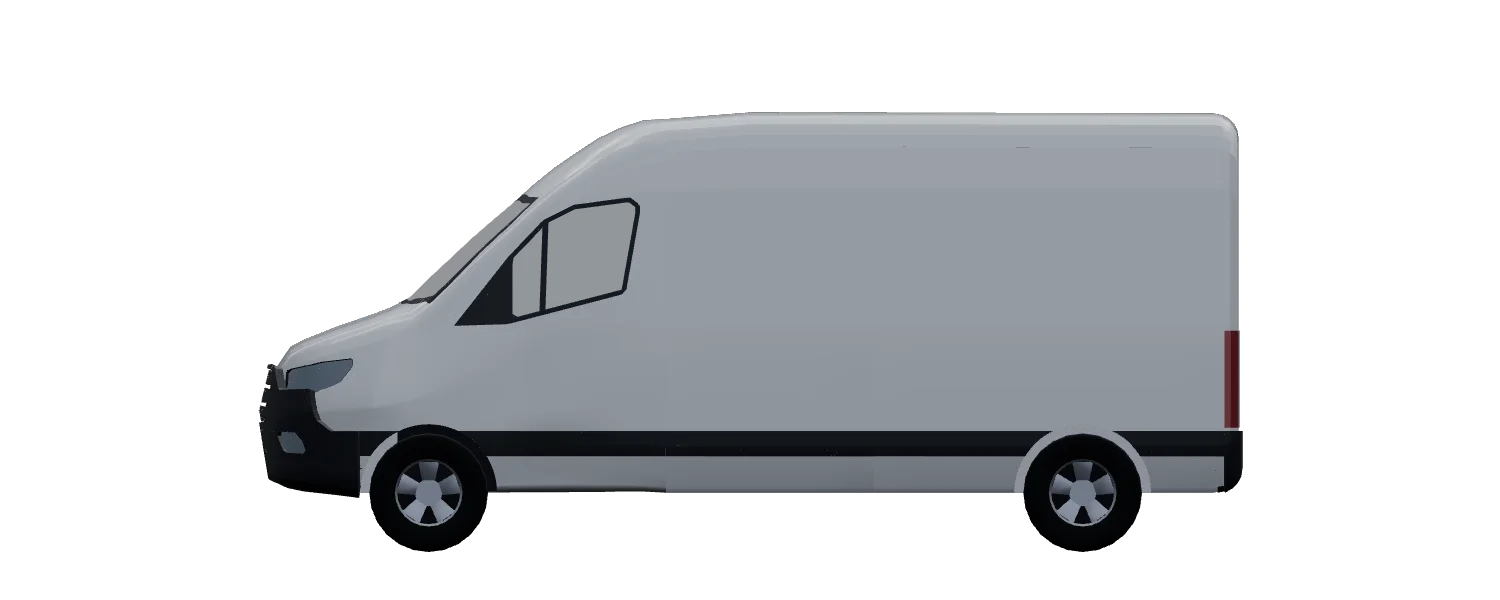

Side elevation of a Mercedes-Benz Sprinter L2H2 FWD

Mercedes-Benz Sprinter L2H2 FWD dimensions
Measurement	Metric	Imperial
Overall length	5,932 mm	19 ft 6 in
Overall width (excluding mirrors)	2,020 mm	6 ft 8 in
Overall height	2,638 mm	8 ft 8 in
Wheelbase	3,924 mm	12 ft 10 in
Side door opening	1,250 mm	4 ft 1 in
Load length at floor	3,397 mm	11 ft 2 in
Maximum internal load width	1,787 mm	5 ft 10 in
Maximum internal load height	2,079 mm	6 ft 10 in
Load floor height	566 mm	1 ft 10 in
Kerb weight (approximate)	2,195 kg	4,839 lb

Plan a Sprinter L2H2 FWD layout Compare with another van

Mercedes-Benz Sprinter L2H2 RWD

The Mercedes-Benz Sprinter L2H2 RWD is 5,932 mm (19 ft 6 in) long, 2,020 mm (6 ft 8 in) wide and 2,630 mm (8 ft 8 in) tall, on a 3,924 mm (12 ft 10 in) wheelbase, with a load floor 626 mm (2 ft 1 in) off the ground, and 3,272 mm (10 ft 9 in) of floor behind the bulkhead. It weighs about 2,255 kg (4,971 lb) unladen.

Also known as: Medium wheelbase, high roof.

Rear-wheel drive

Side elevation of a Mercedes-Benz Sprinter L2H2 RWD

Mercedes-Benz Sprinter L2H2 RWD dimensions
Measurement	Metric	Imperial
Overall length	5,932 mm	19 ft 6 in
Overall width (excluding mirrors)	2,020 mm	6 ft 8 in
Overall height	2,630 mm	8 ft 8 in
Wheelbase	3,924 mm	12 ft 10 in
Side door opening	1,250 mm	4 ft 1 in
Load length at floor	3,272 mm	10 ft 9 in
Maximum internal load width	1,787 mm	5 ft 10 in
Maximum internal load height	2,009 mm	6 ft 7 in
Load floor height	626 mm	2 ft 1 in
Kerb weight (approximate)	2,255 kg	4,971 lb

Plan a Sprinter L2H2 RWD layout Compare with another van

Mercedes-Benz Sprinter L3H2 RWD

The Mercedes-Benz Sprinter L3H2 RWD is 6,967 mm (22 ft 10 in) long, 2,020 mm (6 ft 8 in) wide and 2,616 mm (8 ft 7 in) tall, on a 4,325 mm (14 ft 2 in) wheelbase, with a load floor 621 mm (2 ft) off the ground, and 4,410 mm (14 ft 6 in) of floor behind the bulkhead. It weighs about 2,405 kg (5,302 lb) unladen.

Also known as: Long wheelbase, high roof.

Rear-wheel drive

Side elevation of a Mercedes-Benz Sprinter L3H2 RWD

Mercedes-Benz Sprinter L3H2 RWD dimensions
Measurement	Metric	Imperial
Overall length	6,967 mm	22 ft 10 in
Overall width (excluding mirrors)	2,020 mm	6 ft 8 in
Overall height	2,616 mm	8 ft 7 in
Wheelbase	4,325 mm	14 ft 2 in
Side door opening	1,250 mm	4 ft 1 in
Load length at floor	4,410 mm	14 ft 6 in
Maximum internal load width	1,787 mm	5 ft 10 in
Maximum internal load height	2,009 mm	6 ft 7 in
Load floor height	621 mm	2 ft
Kerb weight (approximate)	2,405 kg	5,302 lb

Plan a Sprinter L3H2 RWD layout Compare with another van

Mercedes-Benz Sprinter L3H3 RWD

The Mercedes-Benz Sprinter L3H3 RWD is 6,967 mm (22 ft 10 in) long, 2,020 mm (6 ft 8 in) wide and 2,831 mm (9 ft 3 in) tall, on a 4,325 mm (14 ft 2 in) wheelbase, with a load floor 621 mm (2 ft) off the ground, and 4,410 mm (14 ft 6 in) of floor behind the bulkhead. It weighs about 2,440 kg (5,379 lb) unladen.

Also known as: Long wheelbase, super-high roof.

Rear-wheel drive

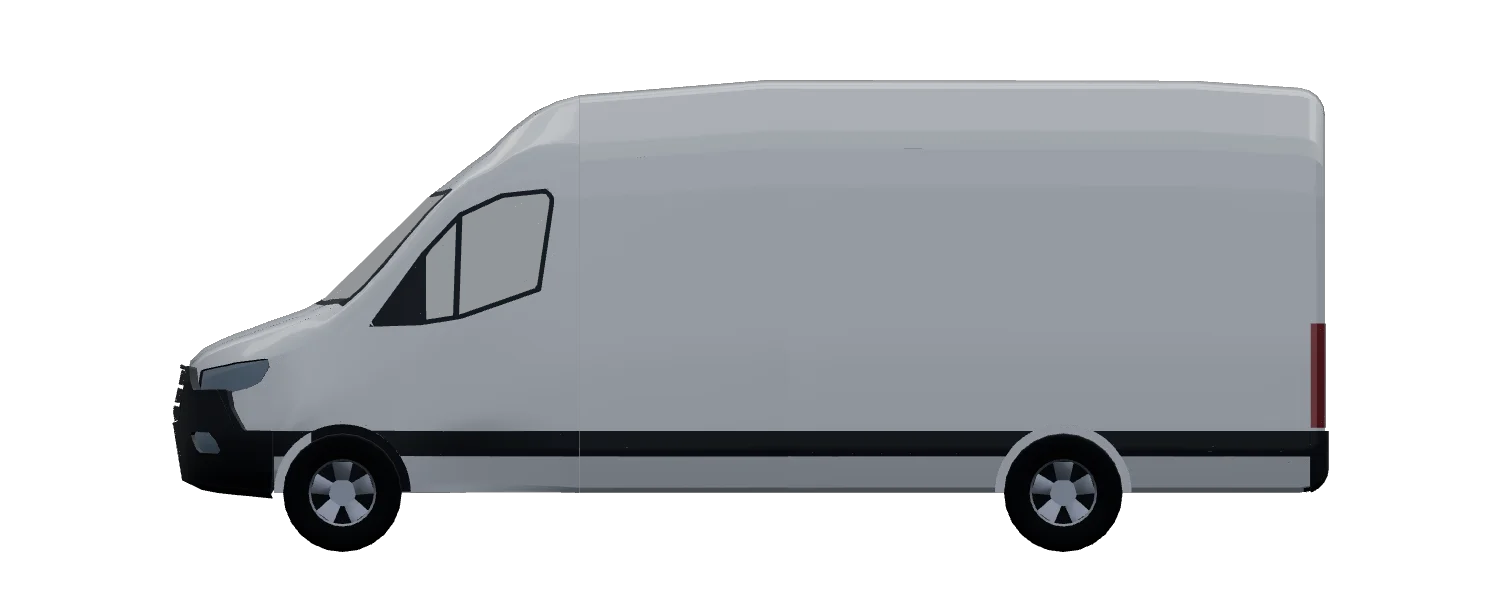

Side elevation of a Mercedes-Benz Sprinter L3H3 RWD

Mercedes-Benz Sprinter L3H3 RWD dimensions
Measurement	Metric	Imperial
Overall length	6,967 mm	22 ft 10 in
Overall width (excluding mirrors)	2,020 mm	6 ft 8 in
Overall height	2,831 mm	9 ft 3 in
Wheelbase	4,325 mm	14 ft 2 in
Side door opening	1,250 mm	4 ft 1 in
Load length at floor	4,410 mm	14 ft 6 in
Maximum internal load width	1,787 mm	5 ft 10 in
Maximum internal load height	2,243 mm	7 ft 4 in
Load floor height	621 mm	2 ft
Kerb weight (approximate)	2,440 kg	5,379 lb

Plan a Sprinter L3H3 RWD layout Compare with another van

Mercedes-Benz Sprinter L4H2 RWD

The Mercedes-Benz Sprinter L4H2 RWD is 7,367 mm (24 ft 2 in) long, 2,020 mm (6 ft 8 in) wide and 2,613 mm (8 ft 7 in) tall, on a 4,325 mm (14 ft 2 in) wheelbase, with a load floor 617 mm (2 ft) off the ground, and 4,810 mm (15 ft 9 in) of floor behind the bulkhead. It weighs about 2,445 kg (5,390 lb) unladen.

Also known as: Extra-long wheelbase, high roof.

Rear-wheel drive

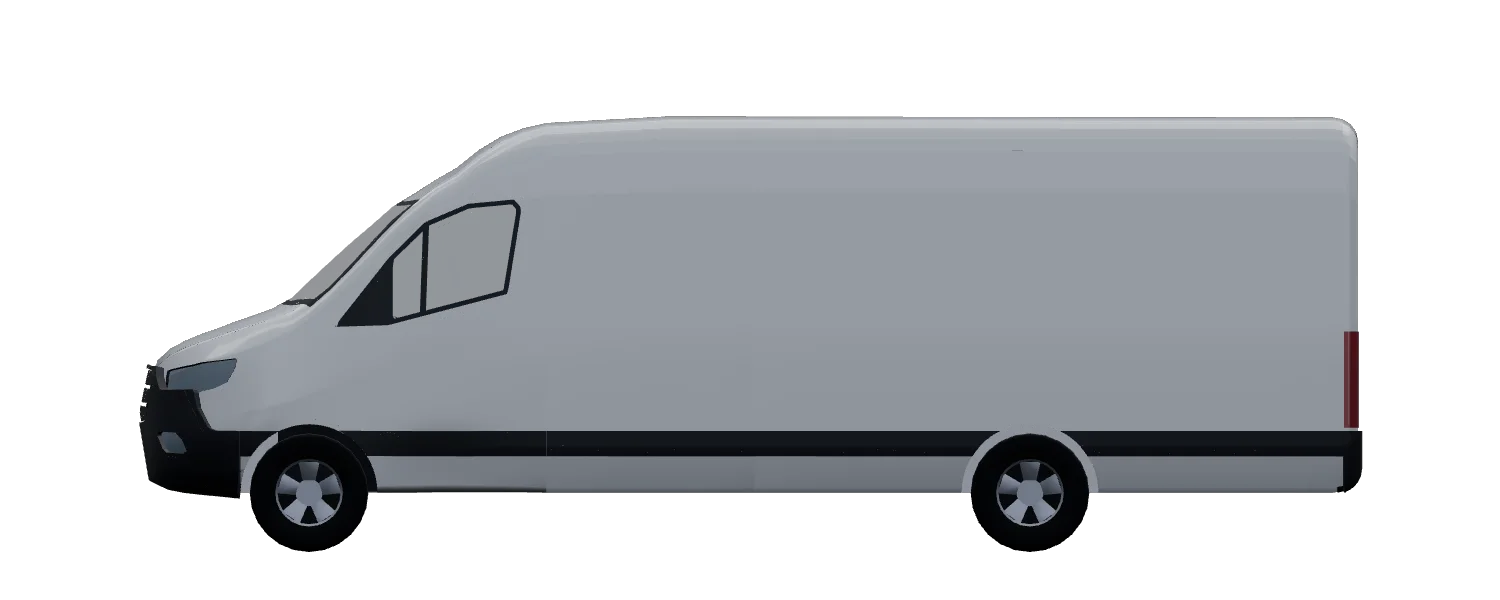

Side elevation of a Mercedes-Benz Sprinter L4H2 RWD

Mercedes-Benz Sprinter L4H2 RWD dimensions
Measurement	Metric	Imperial
Overall length	7,367 mm	24 ft 2 in
Overall width (excluding mirrors)	2,020 mm	6 ft 8 in
Overall height	2,613 mm	8 ft 7 in
Wheelbase	4,325 mm	14 ft 2 in
Side door opening	1,250 mm	4 ft 1 in
Load length at floor	4,810 mm	15 ft 9 in
Maximum internal load width	1,787 mm	5 ft 10 in
Maximum internal load height	2,009 mm	6 ft 7 in
Load floor height	617 mm	2 ft
Kerb weight (approximate)	2,445 kg	5,390 lb

Plan a Sprinter L4H2 RWD layout Compare with another van

Mercedes-Benz Sprinter L4H3 RWD

The Mercedes-Benz Sprinter L4H3 RWD is 7,367 mm (24 ft 2 in) long, 2,020 mm (6 ft 8 in) wide and 2,825 mm (9 ft 3 in) tall, on a 4,325 mm (14 ft 2 in) wheelbase, with a load floor 617 mm (2 ft) off the ground, and 4,810 mm (15 ft 9 in) of floor behind the bulkhead. It weighs about 2,480 kg (5,467 lb) unladen.

Also known as: Extra-long wheelbase, super-high roof.

Rear-wheel drive

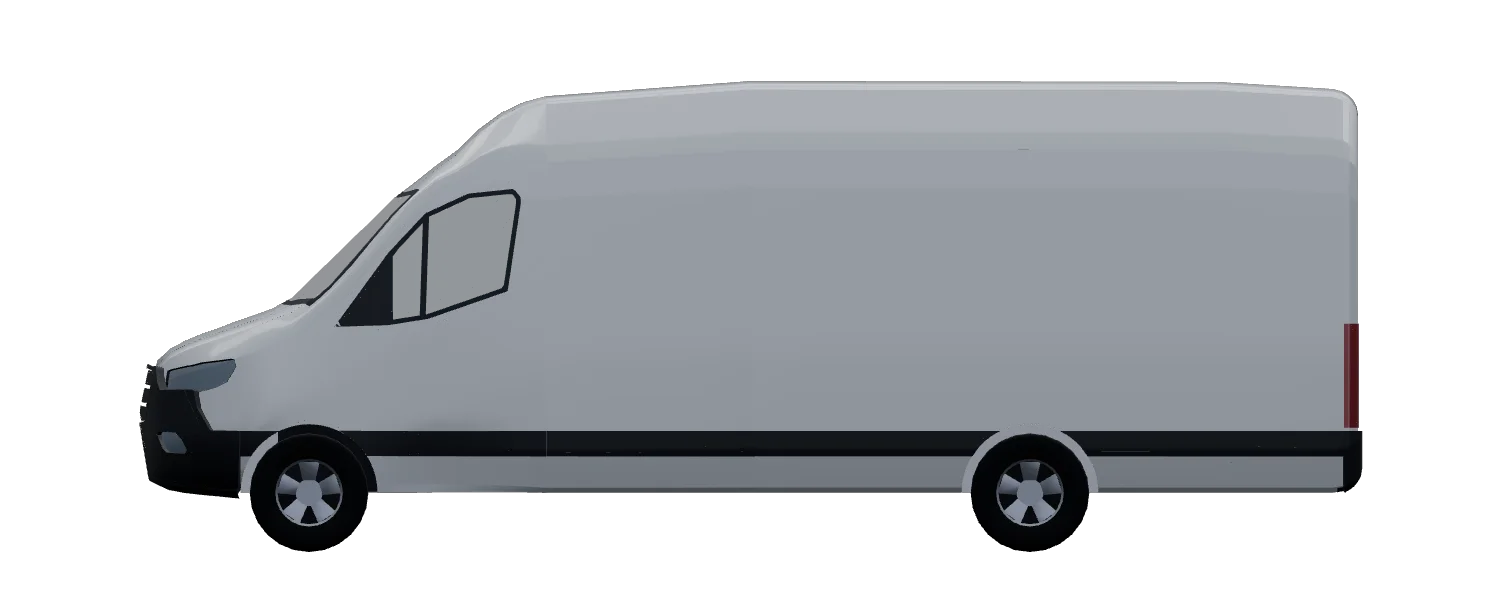

Side elevation of a Mercedes-Benz Sprinter L4H3 RWD

Mercedes-Benz Sprinter L4H3 RWD dimensions
Measurement	Metric	Imperial
Overall length	7,367 mm	24 ft 2 in
Overall width (excluding mirrors)	2,020 mm	6 ft 8 in
Overall height	2,825 mm	9 ft 3 in
Wheelbase	4,325 mm	14 ft 2 in
Side door opening	1,250 mm	4 ft 1 in
Load length at floor	4,810 mm	15 ft 9 in
Maximum internal load width	1,787 mm	5 ft 10 in
Maximum internal load height	2,243 mm	7 ft 4 in
Load floor height	617 mm	2 ft
Kerb weight (approximate)	2,480 kg	5,467 lb

Plan a Sprinter L4H3 RWD layout Compare with another van

Every Mercedes-Benz Sprinter version, side by side

7 sizes across 9 versions: one size can be sold in more than one drive layout, which changes the load floor height, the kerb weight and sometimes the overall height, with the manufacturer's published overall figures side by side. Each one is drawn and specified in full above, in both metric and imperial.

Mercedes-Benz Sprinter dimensions by version
Version	Length	Width	Height	Wheelbase	Load length	Max load width	Max load height	Load floor	Kerb weight
L1H1 FWD	5,267 mm17 ft 3 in	2,020 mm6 ft 8 in	2,356 mm7 ft 9 in	3,259 mm10 ft 8 in	2,732 mm9 ft	1,787 mm5 ft 10 in	1,789 mm5 ft 10 in	576 mm1 ft 11 in	2,105 kg4,641 lb
L2H1 FWD	5,932 mm19 ft 6 in	2,020 mm6 ft 8 in	2,351 mm7 ft 9 in	3,924 mm12 ft 10 in	3,397 mm11 ft 2 in	1,787 mm5 ft 10 in	1,789 mm5 ft 10 in	569 mm1 ft 10 in	2,155 kg4,751 lb
L2H1 RWD	5,932 mm19 ft 6 in	2,020 mm6 ft 8 in	2,351 mm7 ft 9 in	3,924 mm12 ft 10 in	3,272 mm10 ft 9 in	1,787 mm5 ft 10 in	1,719 mm5 ft 8 in	629 mm2 ft 1 in	2,215 kg4,883 lb
L2H2 FWD	5,932 mm19 ft 6 in	2,020 mm6 ft 8 in	2,638 mm8 ft 8 in	3,924 mm12 ft 10 in	3,397 mm11 ft 2 in	1,787 mm5 ft 10 in	2,079 mm6 ft 10 in	566 mm1 ft 10 in	2,195 kg4,839 lb
L2H2 RWD	5,932 mm19 ft 6 in	2,020 mm6 ft 8 in	2,630 mm8 ft 8 in	3,924 mm12 ft 10 in	3,272 mm10 ft 9 in	1,787 mm5 ft 10 in	2,009 mm6 ft 7 in	626 mm2 ft 1 in	2,255 kg4,971 lb
L3H2 RWD	6,967 mm22 ft 10 in	2,020 mm6 ft 8 in	2,616 mm8 ft 7 in	4,325 mm14 ft 2 in	4,410 mm14 ft 6 in	1,787 mm5 ft 10 in	2,009 mm6 ft 7 in	621 mm2 ft	2,405 kg5,302 lb
L3H3 RWD	6,967 mm22 ft 10 in	2,020 mm6 ft 8 in	2,831 mm9 ft 3 in	4,325 mm14 ft 2 in	4,410 mm14 ft 6 in	1,787 mm5 ft 10 in	2,243 mm7 ft 4 in	621 mm2 ft	2,440 kg5,379 lb
L4H2 RWD	7,367 mm24 ft 2 in	2,020 mm6 ft 8 in	2,613 mm8 ft 7 in	4,325 mm14 ft 2 in	4,810 mm15 ft 9 in	1,787 mm5 ft 10 in	2,009 mm6 ft 7 in	617 mm2 ft	2,445 kg5,390 lb
L4H3 RWD	7,367 mm24 ft 2 in	2,020 mm6 ft 8 in	2,825 mm9 ft 3 in	4,325 mm14 ft 2 in	4,810 mm15 ft 9 in	1,787 mm5 ft 10 in	2,243 mm7 ft 4 in	617 mm2 ft	2,480 kg5,467 lb

Lengths exclude mirrors. Kerb weight is approximate - see how these figures were sourced at the bottom of the page.

Compare the Mercedes-Benz Sprinter

Rival vans (16)

Two sizes of one van (3)

How to read these figures

Kerb weights are researched from published manufacturer data, read on 5 August 2026. Basis: Sprinter 311/314/315 CDI (2.0 OM654 diesel), 3.5 t GVW panel van, base tune (lowest of range).

Kerb weight (curb weight in North America) is the unladen mass in running order (all fluids, a 90% full fuel tank and a 75 kg driver), for a base-specification panel van. It is researched and approximate: a real van with options fitted will weigh more, and VanCAD lets you edit the figure on your own design.

Load length is the manufacturer's published floor length behind the bulkhead, measured at floor level in the bare van. Lining, battens and a false floor all take from it, and the figure says nothing about the height or width available above it.

Interior figures are the manufacturer's published load length at floor, maximum internal load width and maximum internal load height, where available. These are before conversion: lining, insulation and flooring reduce usable space, and maximum dimensions do not apply everywhere inside the van. Check your own vehicle before cutting or building. VanCAD's traced interior shapes are illustrative and are never used as published measurements.

Maximum internal load width and height sources (Mercedes-Benz Sprinter): nd-mediagallery2-public-production.s3.amazonaws.com; vans.mercedes-benz.com.my

VanCAD models the mainstream panel van bodies and drive layouts for each van, not every factory option. A maker may also sell four-wheel-drive, chassis-cab or crew-van versions that are not listed here, so anything on this page about which layouts a van comes in describes the versions VanCAD offers rather than the maker's full range.

Source: www.mercedes-benz.co.uk
