RAM Promaster dimensions
X290 (2014-present, 2021 facelift)
Published exterior dimensions for all 7 RAM Promaster panel van sizes, with the wheelbase, the load floor height and the unladen weight you start a conversion from. Every size below can be loaded into the free 3D planner.
The Promaster is how this van is sold in North America, and it is the only badge on this site you will not find in Europe. Underneath it is the Fiat Ducato, so the body, the dimensions and the weights are the European van's, published here in both metric and imperial. Two things make it worth measuring for a conversion: all seven bodies are front-wheel drive, which gives it the lowest load floor of anything on this site at 535 mm, and its shortest body is 4,963 mm, so the small end of this range is genuinely small by North American standards.
The RAM Promaster is the same vehicle as the Fiat Ducato, Peugeot Boxer, Citroën Relay, Citroën Jumper, Toyota Proace Max, Vauxhall Movano (2021 on) and Opel Movano (2021 on). Same body, same dimensions, same weight; a different badge and grille.
See also: Fiat Ducato dimensions, Peugeot Boxer dimensions, Citroën Relay dimensions, Citroën Jumper dimensions, Toyota Proace Max dimensions, Vauxhall Movano (2021 on) dimensions, Opel Movano (2021 on) dimensions.

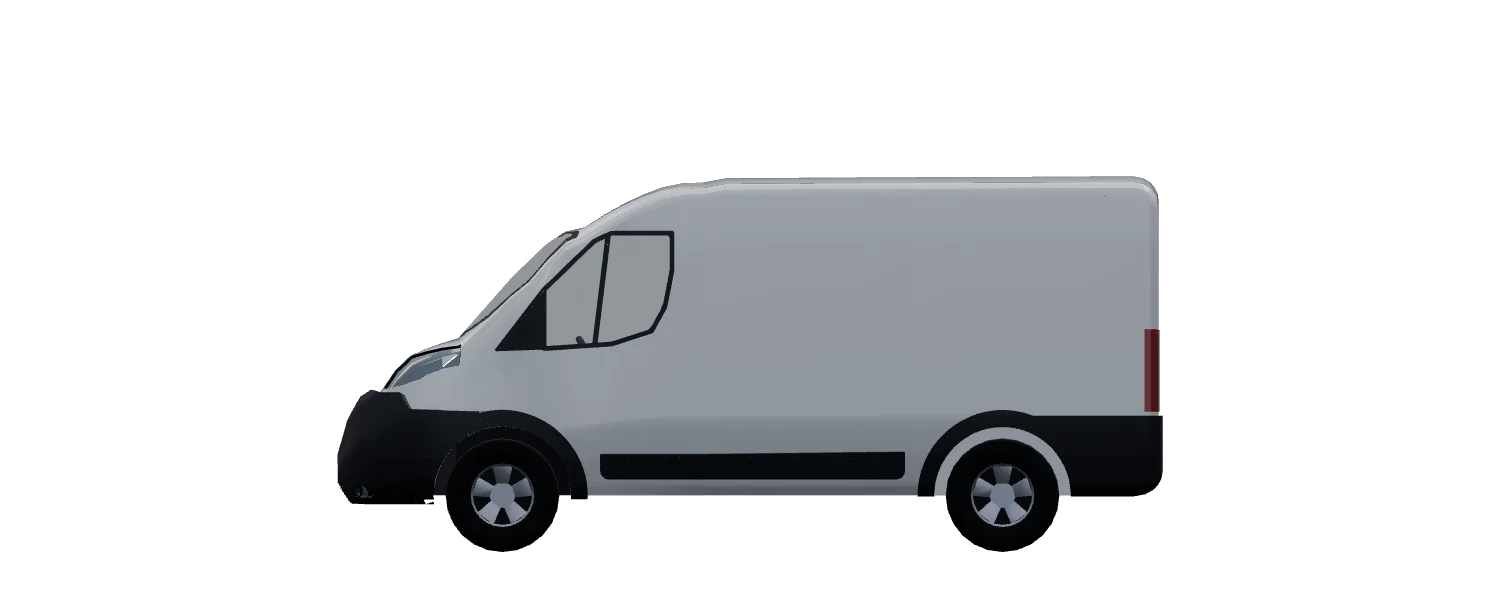

RAM Promaster L1H1
The RAM Promaster L1H1 is 4,963 mm (16 ft 3 in) long, 2,050 mm (6 ft 9 in) wide and 2,254 mm (7 ft 5 in) tall, on a 3,000 mm (9 ft 10 in) wheelbase, with a load floor 535 mm (1 ft 9 in) off the ground, and 2,670 mm (8 ft 9 in) of floor behind the bulkhead. It weighs about 1,940 kg (4,277 lb) unladen.
Also known as: 118 in. wheelbase, low roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 4,963 mm | 16 ft 3 in |
| Overall width (excluding mirrors) | 2,050 mm | 6 ft 9 in |
| Overall height | 2,254 mm | 7 ft 5 in |
| Wheelbase | 3,000 mm | 9 ft 10 in |
| Side door opening | 1,250 mm | 4 ft 1 in |
| Load length at floor | 2,670 mm | 8 ft 9 in |
| Load floor height | 535 mm | 1 ft 9 in |
| Kerb weight (approximate) | 1,940 kg | 4,277 lb |

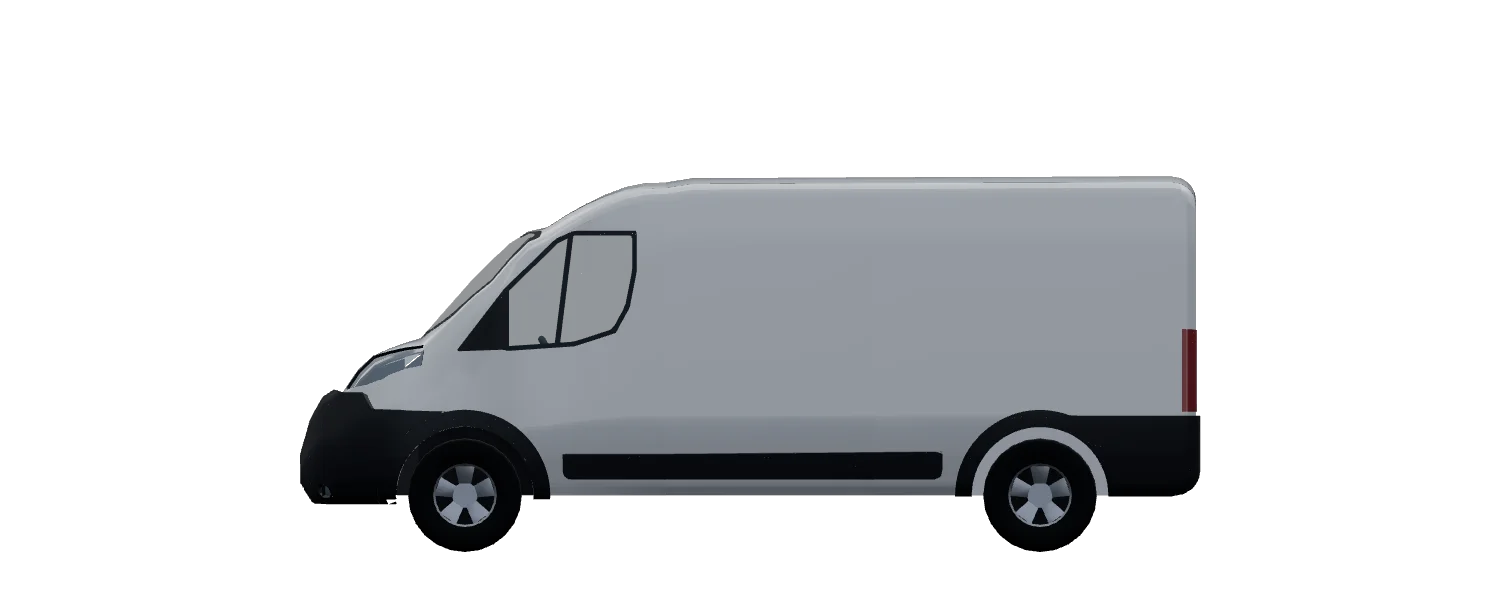

RAM Promaster L2H1
The RAM Promaster L2H1 is 5,413 mm (17 ft 9 in) long, 2,050 mm (6 ft 9 in) wide and 2,254 mm (7 ft 5 in) tall, on a 3,450 mm (11 ft 4 in) wheelbase, with a load floor 535 mm (1 ft 9 in) off the ground, and 3,120 mm (10 ft 3 in) of floor behind the bulkhead. It weighs about 1,980 kg (4,365 lb) unladen.
Also known as: 136 in. wheelbase, low roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,413 mm | 17 ft 9 in |
| Overall width (excluding mirrors) | 2,050 mm | 6 ft 9 in |
| Overall height | 2,254 mm | 7 ft 5 in |
| Wheelbase | 3,450 mm | 11 ft 4 in |
| Side door opening | 1,250 mm | 4 ft 1 in |
| Load length at floor | 3,120 mm | 10 ft 3 in |
| Load floor height | 535 mm | 1 ft 9 in |
| Kerb weight (approximate) | 1,980 kg | 4,365 lb |

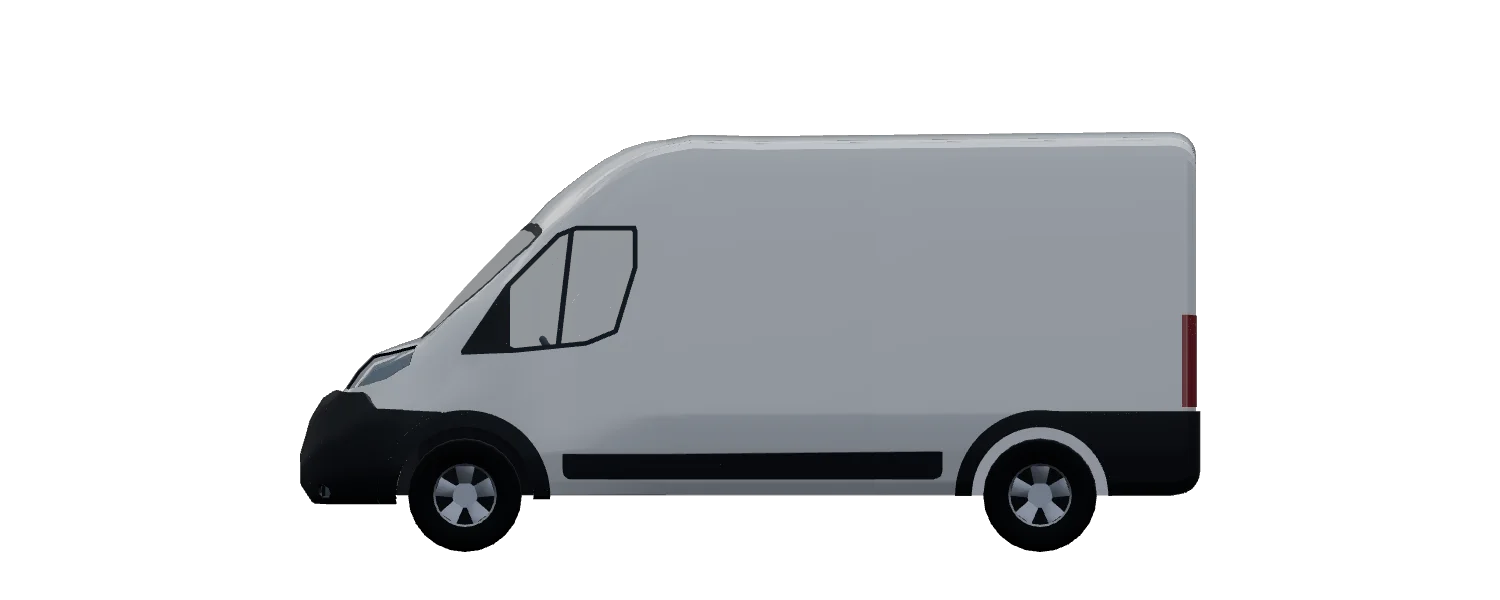

RAM Promaster L2H2
The RAM Promaster L2H2 is 5,413 mm (17 ft 9 in) long, 2,050 mm (6 ft 9 in) wide and 2,522 mm (8 ft 3 in) tall, on a 3,450 mm (11 ft 4 in) wheelbase, with a load floor 535 mm (1 ft 9 in) off the ground, and 3,120 mm (10 ft 3 in) of floor behind the bulkhead. It weighs about 2,020 kg (4,453 lb) unladen.
Also known as: 136 in. wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,413 mm | 17 ft 9 in |
| Overall width (excluding mirrors) | 2,050 mm | 6 ft 9 in |
| Overall height | 2,522 mm | 8 ft 3 in |
| Wheelbase | 3,450 mm | 11 ft 4 in |
| Side door opening | 1,250 mm | 4 ft 1 in |
| Load length at floor | 3,120 mm | 10 ft 3 in |
| Load floor height | 535 mm | 1 ft 9 in |
| Kerb weight (approximate) | 2,020 kg | 4,453 lb |
RAM Promaster L3H2
The RAM Promaster L3H2 is 5,998 mm (19 ft 8 in) long, 2,050 mm (6 ft 9 in) wide and 2,522 mm (8 ft 3 in) tall, on a 4,035 mm (13 ft 3 in) wheelbase, with a load floor 550 mm (1 ft 10 in) off the ground, and 3,705 mm (12 ft 2 in) of floor behind the bulkhead. It weighs about 2,095 kg (4,619 lb) unladen.
Also known as: 159 in. wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,998 mm | 19 ft 8 in |
| Overall width (excluding mirrors) | 2,050 mm | 6 ft 9 in |
| Overall height | 2,522 mm | 8 ft 3 in |
| Wheelbase | 4,035 mm | 13 ft 3 in |
| Side door opening | 1,250 mm | 4 ft 1 in |
| Load length at floor | 3,705 mm | 12 ft 2 in |
| Load floor height | 550 mm | 1 ft 10 in |
| Kerb weight (approximate) | 2,095 kg | 4,619 lb |

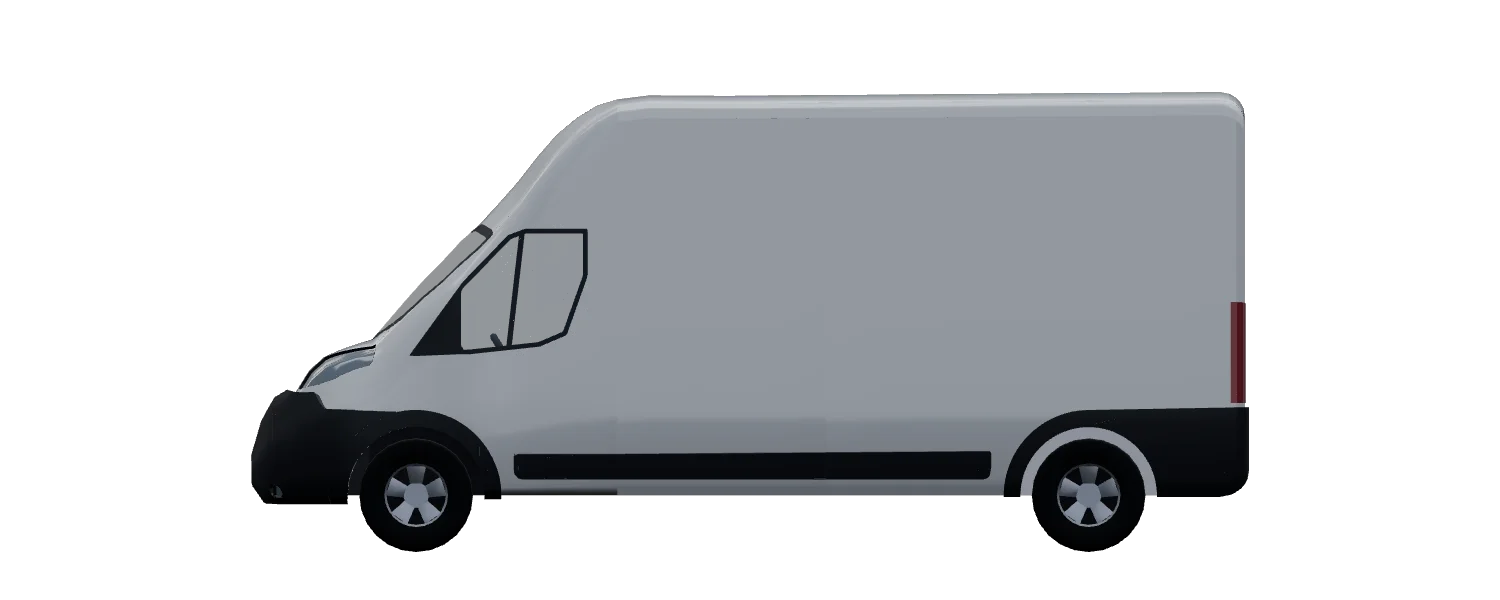

RAM Promaster L3H3
The RAM Promaster L3H3 is 5,998 mm (19 ft 8 in) long, 2,050 mm (6 ft 9 in) wide and 2,760 mm (9 ft 1 in) tall, on a 4,035 mm (13 ft 3 in) wheelbase, with a load floor 550 mm (1 ft 10 in) off the ground, and 3,705 mm (12 ft 2 in) of floor behind the bulkhead. It weighs about 2,130 kg (4,696 lb) unladen.
Also known as: Long wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,998 mm | 19 ft 8 in |
| Overall width (excluding mirrors) | 2,050 mm | 6 ft 9 in |
| Overall height | 2,760 mm | 9 ft 1 in |
| Wheelbase | 4,035 mm | 13 ft 3 in |
| Side door opening | 1,250 mm | 4 ft 1 in |
| Load length at floor | 3,705 mm | 12 ft 2 in |
| Load floor height | 550 mm | 1 ft 10 in |
| Kerb weight (approximate) | 2,130 kg | 4,696 lb |

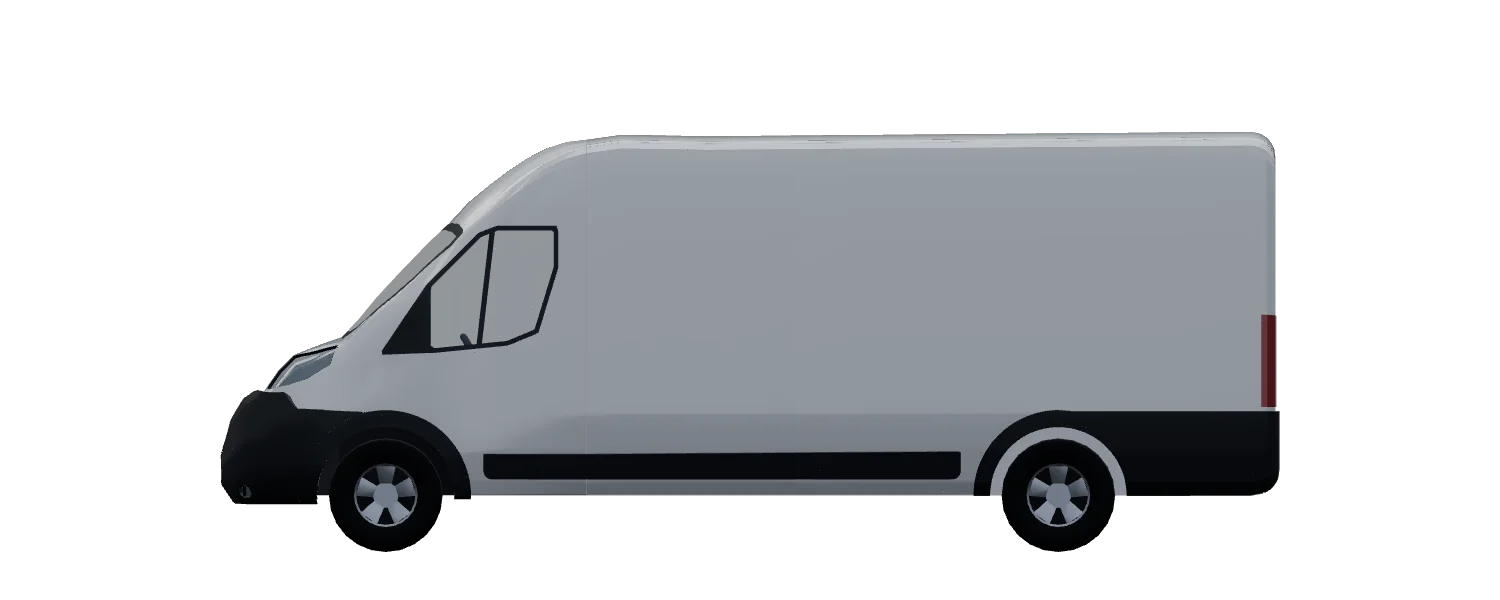

RAM Promaster L4H2
The RAM Promaster L4H2 is 6,363 mm (20 ft 11 in) long, 2,050 mm (6 ft 9 in) wide and 2,522 mm (8 ft 3 in) tall, on a 4,035 mm (13 ft 3 in) wheelbase, with a load floor 550 mm (1 ft 10 in) off the ground, and 4,070 mm (13 ft 4 in) of floor behind the bulkhead. It weighs about 2,235 kg (4,927 lb) unladen.
Also known as: 159 in. wheelbase, high roof, extended body.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,363 mm | 20 ft 11 in |
| Overall width (excluding mirrors) | 2,050 mm | 6 ft 9 in |
| Overall height | 2,522 mm | 8 ft 3 in |
| Wheelbase | 4,035 mm | 13 ft 3 in |
| Side door opening | 1,250 mm | 4 ft 1 in |
| Load length at floor | 4,070 mm | 13 ft 4 in |
| Load floor height | 550 mm | 1 ft 10 in |
| Kerb weight (approximate) | 2,235 kg | 4,927 lb |

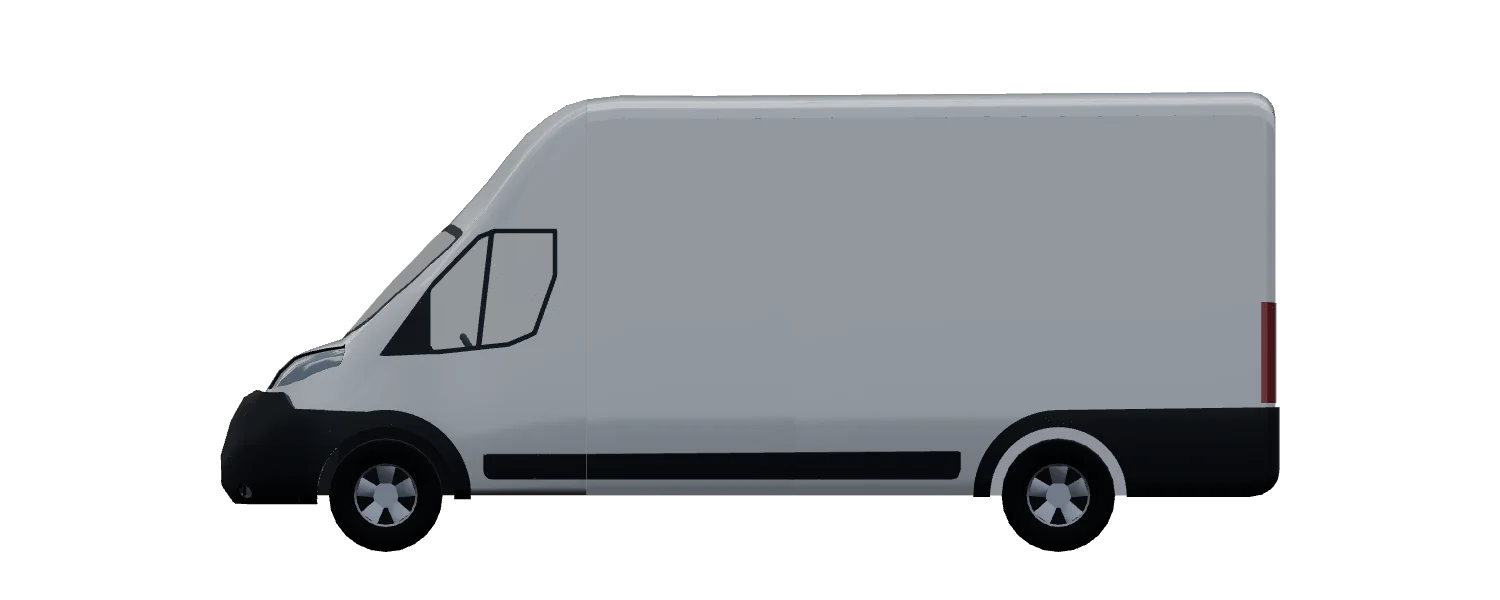

RAM Promaster L4H3
The RAM Promaster L4H3 is 6,363 mm (20 ft 11 in) long, 2,050 mm (6 ft 9 in) wide and 2,760 mm (9 ft 1 in) tall, on a 4,035 mm (13 ft 3 in) wheelbase, with a load floor 550 mm (1 ft 10 in) off the ground, and 4,070 mm (13 ft 4 in) of floor behind the bulkhead. It weighs about 2,270 kg (5,004 lb) unladen.
Also known as: Extra-long wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,363 mm | 20 ft 11 in |
| Overall width (excluding mirrors) | 2,050 mm | 6 ft 9 in |
| Overall height | 2,760 mm | 9 ft 1 in |
| Wheelbase | 4,035 mm | 13 ft 3 in |
| Side door opening | 1,250 mm | 4 ft 1 in |
| Load length at floor | 4,070 mm | 13 ft 4 in |
| Load floor height | 550 mm | 1 ft 10 in |
| Kerb weight (approximate) | 2,270 kg | 5,004 lb |
Every RAM Promaster version, side by side
7 sizes, with the manufacturer's published overall figures side by side. Each one is drawn and specified in full above, in both metric and imperial.
| Version | Length | Width | Height | Wheelbase | Load length | Load floor | Kerb weight |
|---|---|---|---|---|---|---|---|
| L1H1 | 4,963 mm16 ft 3 in | 2,050 mm6 ft 9 in | 2,254 mm7 ft 5 in | 3,000 mm9 ft 10 in | 2,670 mm8 ft 9 in | 535 mm1 ft 9 in | 1,940 kg4,277 lb |
| L2H1 | 5,413 mm17 ft 9 in | 2,050 mm6 ft 9 in | 2,254 mm7 ft 5 in | 3,450 mm11 ft 4 in | 3,120 mm10 ft 3 in | 535 mm1 ft 9 in | 1,980 kg4,365 lb |
| L2H2 | 5,413 mm17 ft 9 in | 2,050 mm6 ft 9 in | 2,522 mm8 ft 3 in | 3,450 mm11 ft 4 in | 3,120 mm10 ft 3 in | 535 mm1 ft 9 in | 2,020 kg4,453 lb |
| L3H2 | 5,998 mm19 ft 8 in | 2,050 mm6 ft 9 in | 2,522 mm8 ft 3 in | 4,035 mm13 ft 3 in | 3,705 mm12 ft 2 in | 550 mm1 ft 10 in | 2,095 kg4,619 lb |
| L3H3 | 5,998 mm19 ft 8 in | 2,050 mm6 ft 9 in | 2,760 mm9 ft 1 in | 4,035 mm13 ft 3 in | 3,705 mm12 ft 2 in | 550 mm1 ft 10 in | 2,130 kg4,696 lb |
| L4H2 | 6,363 mm20 ft 11 in | 2,050 mm6 ft 9 in | 2,522 mm8 ft 3 in | 4,035 mm13 ft 3 in | 4,070 mm13 ft 4 in | 550 mm1 ft 10 in | 2,235 kg4,927 lb |
| L4H3 | 6,363 mm20 ft 11 in | 2,050 mm6 ft 9 in | 2,760 mm9 ft 1 in | 4,035 mm13 ft 3 in | 4,070 mm13 ft 4 in | 550 mm1 ft 10 in | 2,270 kg5,004 lb |
Lengths exclude mirrors. Kerb weight is approximate - see how these figures were sourced at the bottom of the page.
How to read these figures
Kerb weights are researched from published Fiat Ducato data - the same vehicle, read on 5 August 2026. Basis: 2.2 MultiJet 120 diesel, 3500 kg (35) GVW, FWD, base spec.
Kerb weight (curb weight in North America) is the unladen mass in running order (all fluids, a 90% full fuel tank and a 75 kg driver), for a base-specification panel van at around 3.5 t gross. It is researched and approximate: a real van with options fitted will weigh more, and VanCAD lets you edit the figure on your own design.
Load length is the manufacturer's published floor length behind the bulkhead, measured at floor level in the bare van. Lining, battens and a false floor all take from it, and the figure says nothing about the height or width available above it.
One interior figure is published here, and it is the manufacturer's own: the load length at floor. Everything else about the inside of the van is deliberately absent. VanCAD's interior shapes come from traced reference models, so our own figures for load height, load width or the gap between the wheel arches would be wrong at the precision somebody cutting a bed frame needs, and a cited-and-wrong number is worse than none. Whether a given bed, shower or bike fits is a question the 3D tool answers by putting it in the van.
VanCAD models the mainstream panel van bodies and drive layouts for each van, not every factory option. A maker may also sell four-wheel-drive, chassis-cab or crew-van versions that are not listed here, so anything on this page about which layouts a van comes in describes the versions VanCAD offers rather than the maker's full range.
Source: www.fiatprofessional.com
