Renault Master dimensions
X62 (2010-2024)
Published exterior dimensions for all 8 Renault Master panel van sizes, with the wheelbase, the load floor height and the unladen weight you start a conversion from. Every size below can be loaded into the free 3D planner.
The Master is the size ladder with the most rungs at the small end: eight bodies starting at 5,048 mm, so if your constraint is a driveway or a height barrier rather than the build, this is the range with the most room to compromise in. It is also the widest van we model, at 2,070 mm across the body, which is the figure that decides whether a bed goes across or along. Both drive layouts appear in the range, but only two of the eight bodies are modelled in both: the small end is front-wheel drive and the largest bodies rear-wheel drive, and that alone moves the load floor from 542 mm to 674 mm.
The Renault Master is the same vehicle as the Vauxhall Movano (pre-2021), Opel Movano (pre-2021), Nissan NV400 and Nissan Interstar. Same body, same dimensions, same weight; a different badge and grille.
See also: Vauxhall Movano (pre-2021) dimensions, Opel Movano (pre-2021) dimensions, Nissan NV400 dimensions, Nissan Interstar dimensions.

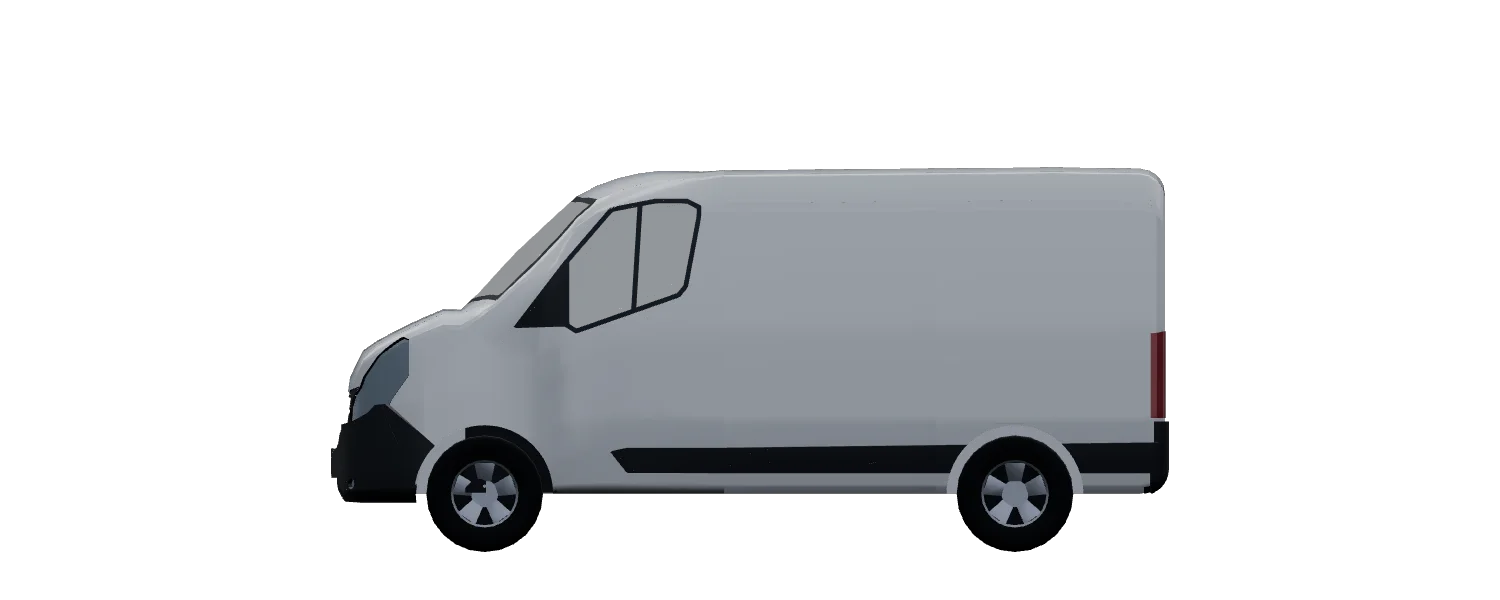

Renault Master L1H1 FWD
The Renault Master L1H1 FWD is 5,048 mm (16 ft 7 in) long, 2,070 mm (6 ft 9 in) wide and 2,307 mm (7 ft 7 in) tall, on a 3,182 mm (10 ft 5 in) wheelbase, with a load floor 546 mm (1 ft 9 in) off the ground, and 2,583 mm (8 ft 6 in) of floor behind the bulkhead. It weighs about 2,038 kg (4,493 lb) unladen.
Also known as: Short wheelbase, low roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,048 mm | 16 ft 7 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,307 mm | 7 ft 7 in |
| Wheelbase | 3,182 mm | 10 ft 5 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 2,583 mm | 8 ft 6 in |
| Load floor height | 546 mm | 1 ft 9 in |
| Kerb weight (approximate) | 2,038 kg | 4,493 lb |

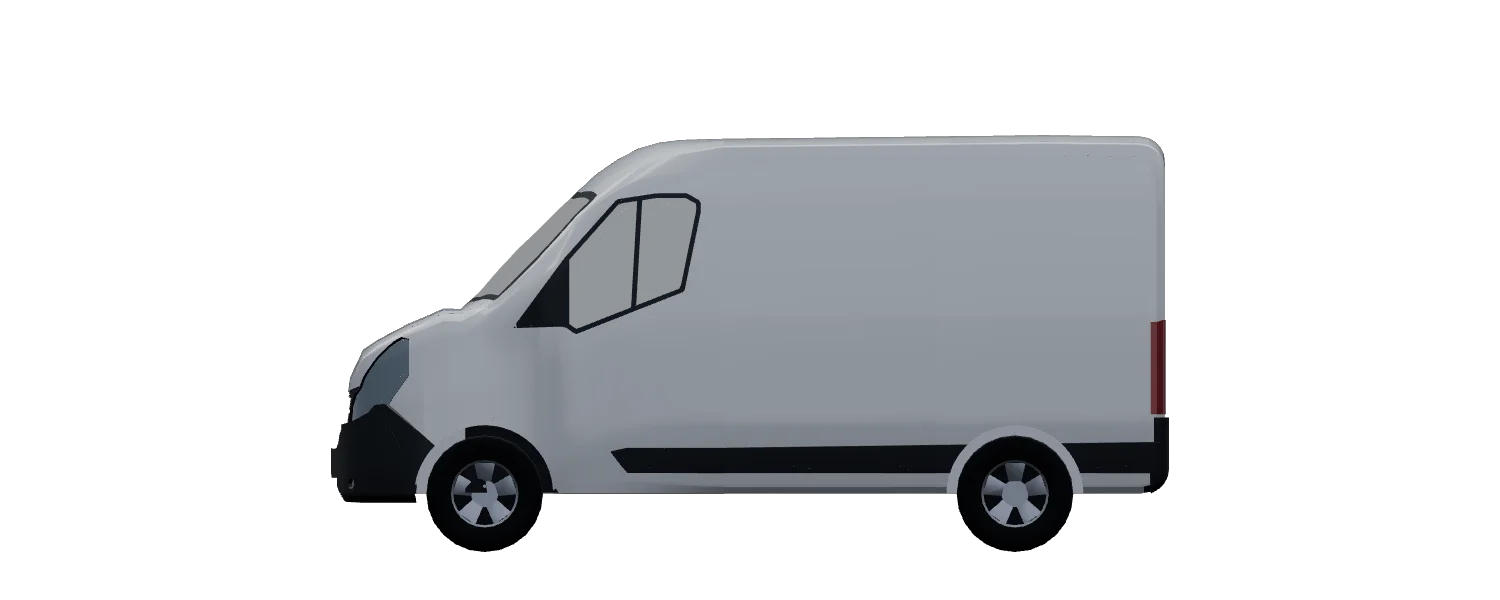

Renault Master L1H2 FWD
The Renault Master L1H2 FWD is 5,048 mm (16 ft 7 in) long, 2,070 mm (6 ft 9 in) wide and 2,500 mm (8 ft 2 in) tall, on a 3,182 mm (10 ft 5 in) wheelbase, with a load floor 546 mm (1 ft 9 in) off the ground, and 2,583 mm (8 ft 6 in) of floor behind the bulkhead. It weighs about 2,066 kg (4,555 lb) unladen.
Also known as: Short wheelbase, medium roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,048 mm | 16 ft 7 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,500 mm | 8 ft 2 in |
| Wheelbase | 3,182 mm | 10 ft 5 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 2,583 mm | 8 ft 6 in |
| Load floor height | 546 mm | 1 ft 9 in |
| Kerb weight (approximate) | 2,066 kg | 4,555 lb |

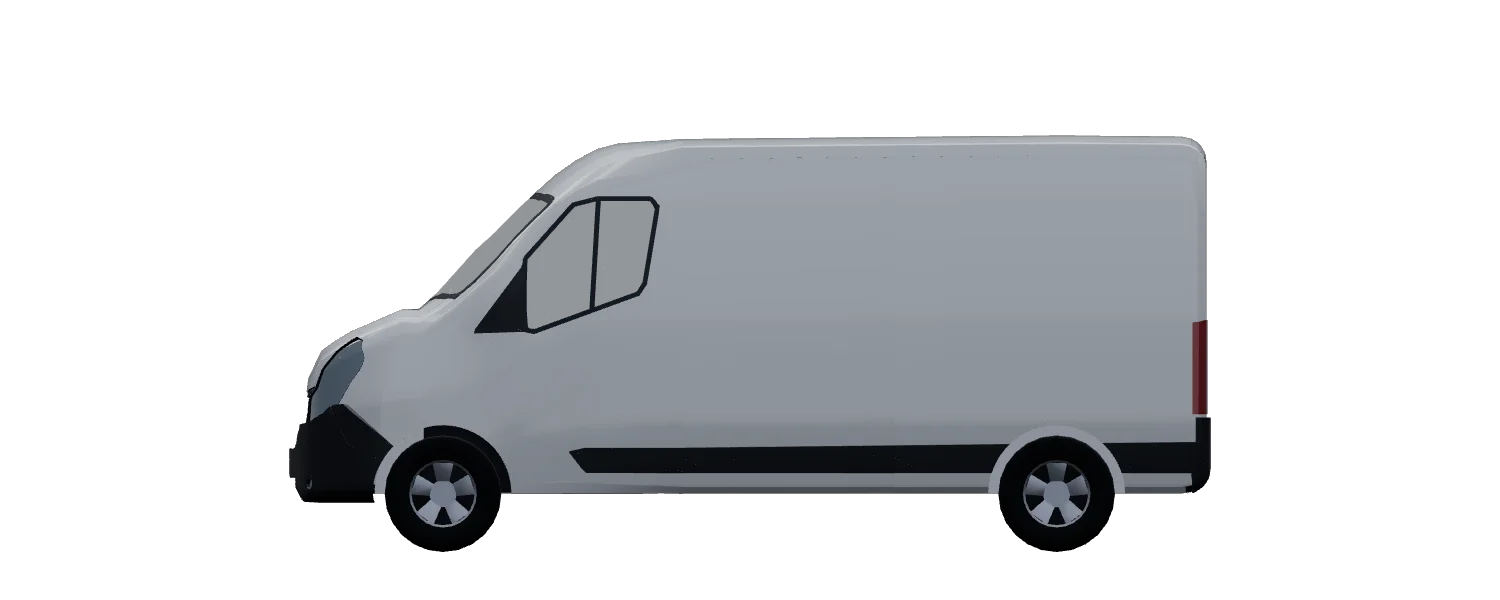

Renault Master L2H2 FWD
The Renault Master L2H2 FWD is 5,548 mm (18 ft 2 in) long, 2,070 mm (6 ft 9 in) wide and 2,499 mm (8 ft 2 in) tall, on a 3,682 mm (12 ft 1 in) wheelbase, with a load floor 544 mm (1 ft 9 in) off the ground, and 3,083 mm (10 ft 1 in) of floor behind the bulkhead. It weighs about 2,110 kg (4,652 lb) unladen.
Also known as: Medium wheelbase, medium roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,548 mm | 18 ft 2 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,499 mm | 8 ft 2 in |
| Wheelbase | 3,682 mm | 12 ft 1 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 3,083 mm | 10 ft 1 in |
| Load floor height | 544 mm | 1 ft 9 in |
| Kerb weight (approximate) | 2,110 kg | 4,652 lb |

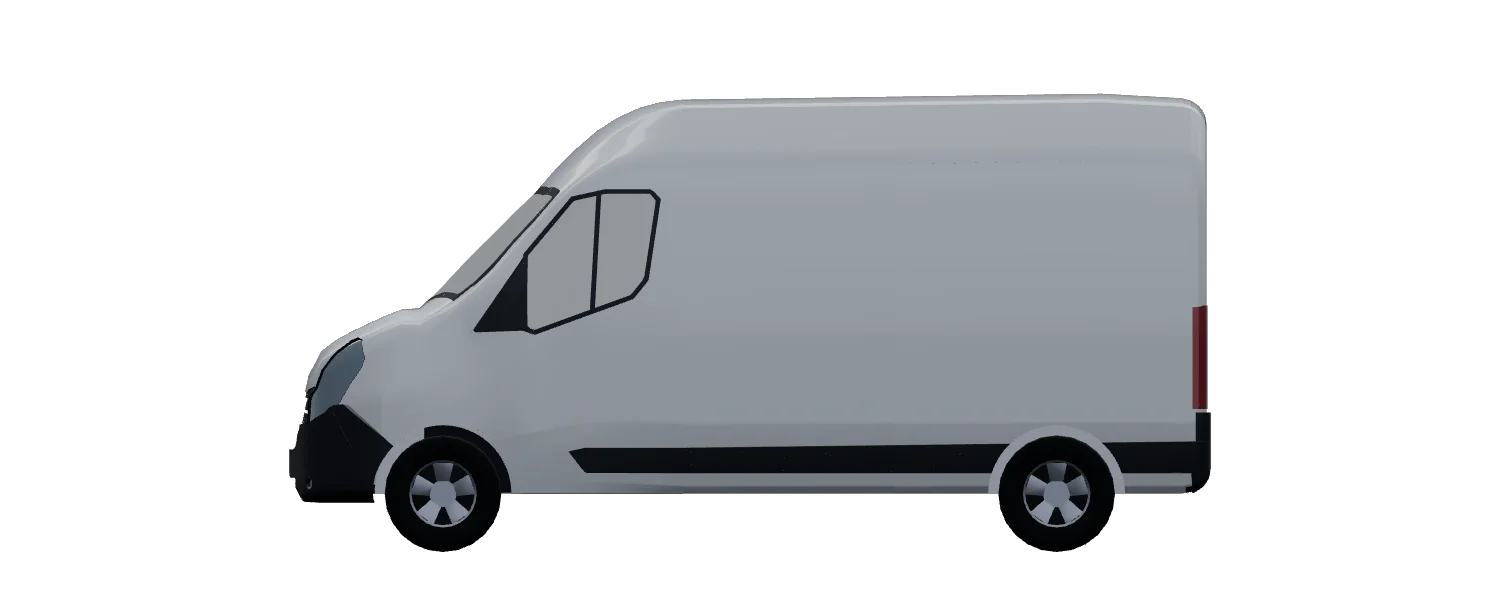

Renault Master L2H3 FWD
The Renault Master L2H3 FWD is 5,548 mm (18 ft 2 in) long, 2,070 mm (6 ft 9 in) wide and 2,749 mm (9 ft) tall, on a 3,682 mm (12 ft 1 in) wheelbase, with a load floor 544 mm (1 ft 9 in) off the ground, and 3,083 mm (10 ft 1 in) of floor behind the bulkhead. It weighs about 2,151 kg (4,742 lb) unladen.
Also known as: Medium wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,548 mm | 18 ft 2 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,749 mm | 9 ft |
| Wheelbase | 3,682 mm | 12 ft 1 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 3,083 mm | 10 ft 1 in |
| Load floor height | 544 mm | 1 ft 9 in |
| Kerb weight (approximate) | 2,151 kg | 4,742 lb |
Renault Master L3H2 FWD
The Renault Master L3H2 FWD is 6,198 mm (20 ft 4 in) long, 2,070 mm (6 ft 9 in) wide and 2,488 mm (8 ft 2 in) tall, on a 4,332 mm (14 ft 3 in) wheelbase, with a load floor 542 mm (1 ft 9 in) off the ground, and 3,733 mm (12 ft 3 in) of floor behind the bulkhead. It weighs about 2,191 kg (4,830 lb) unladen.
Also known as: Long wheelbase, medium roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,198 mm | 20 ft 4 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,488 mm | 8 ft 2 in |
| Wheelbase | 4,332 mm | 14 ft 3 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 3,733 mm | 12 ft 3 in |
| Load floor height | 542 mm | 1 ft 9 in |
| Kerb weight (approximate) | 2,191 kg | 4,830 lb |

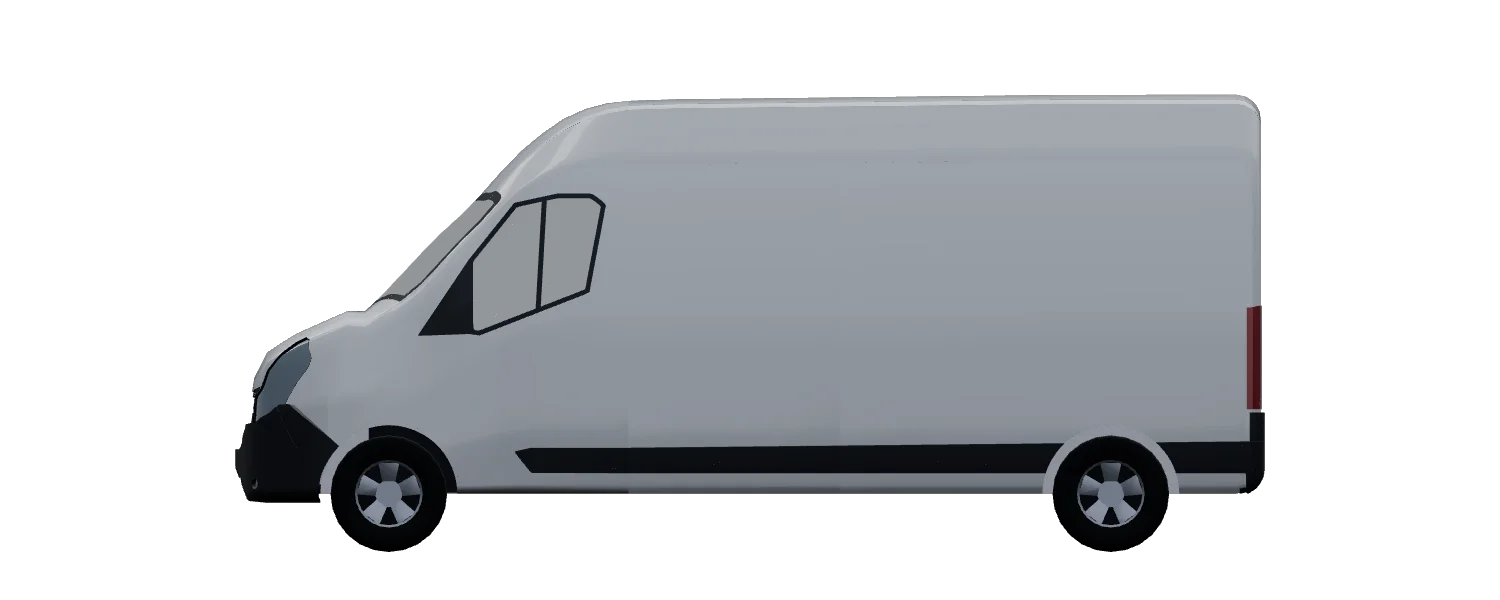

Renault Master L3H3 FWD
The Renault Master L3H3 FWD is 6,198 mm (20 ft 4 in) long, 2,070 mm (6 ft 9 in) wide and 2,744 mm (9 ft) tall, on a 4,332 mm (14 ft 3 in) wheelbase, with a load floor 542 mm (1 ft 9 in) off the ground, and 3,733 mm (12 ft 3 in) of floor behind the bulkhead. It weighs about 2,231 kg (4,919 lb) unladen.
Also known as: Long wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,198 mm | 20 ft 4 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,744 mm | 9 ft |
| Wheelbase | 4,332 mm | 14 ft 3 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 3,733 mm | 12 ft 3 in |
| Load floor height | 542 mm | 1 ft 9 in |
| Kerb weight (approximate) | 2,231 kg | 4,919 lb |
Renault Master L3H2 RWD
The Renault Master L3H2 RWD is 6,198 mm (20 ft 4 in) long, 2,070 mm (6 ft 9 in) wide and 2,549 mm (8 ft 4 in) tall, on a 4,332 mm (14 ft 3 in) wheelbase, with a load floor 674 mm (2 ft 3 in) off the ground, and 3,733 mm (12 ft 3 in) of floor behind the bulkhead. It weighs about 2,453 kg (5,408 lb) unladen.
Also known as: Long wheelbase, medium roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,198 mm | 20 ft 4 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,549 mm | 8 ft 4 in |
| Wheelbase | 4,332 mm | 14 ft 3 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 3,733 mm | 12 ft 3 in |
| Load floor height | 674 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,453 kg | 5,408 lb |
Renault Master L3H3 RWD
The Renault Master L3H3 RWD is 6,198 mm (20 ft 4 in) long, 2,070 mm (6 ft 9 in) wide and 2,815 mm (9 ft 3 in) tall, on a 4,332 mm (14 ft 3 in) wheelbase, with a load floor 674 mm (2 ft 3 in) off the ground, and 3,733 mm (12 ft 3 in) of floor behind the bulkhead. It weighs about 2,495 kg (5,501 lb) unladen.
Also known as: Long wheelbase, high roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,198 mm | 20 ft 4 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,815 mm | 9 ft 3 in |
| Wheelbase | 4,332 mm | 14 ft 3 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 3,733 mm | 12 ft 3 in |
| Load floor height | 674 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,495 kg | 5,501 lb |

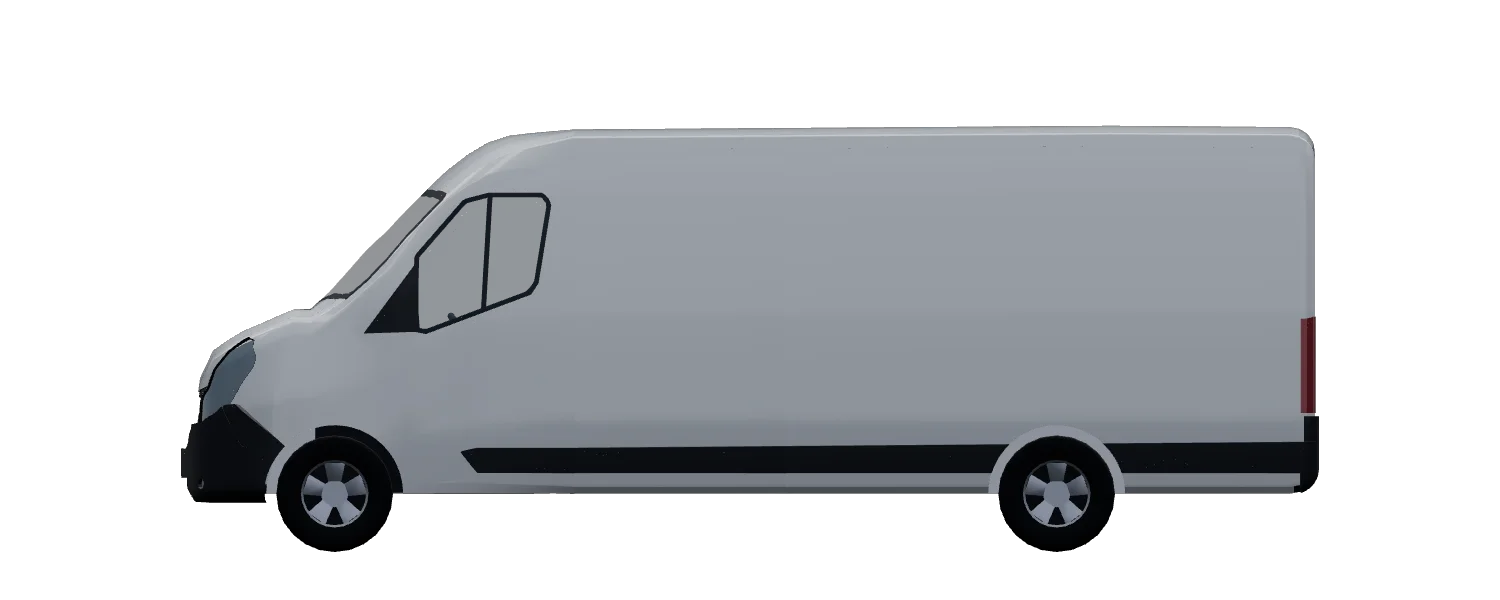

Renault Master L4H2 RWD
The Renault Master L4H2 RWD is 6,848 mm (22 ft 6 in) long, 2,070 mm (6 ft 9 in) wide and 2,557 mm (8 ft 5 in) tall, on a 4,332 mm (14 ft 3 in) wheelbase, with a load floor 674 mm (2 ft 3 in) off the ground, and 4,383 mm (14 ft 5 in) of floor behind the bulkhead. It weighs about 2,513 kg (5,540 lb) unladen.
Also known as: Extra-long wheelbase, medium roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,848 mm | 22 ft 6 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,557 mm | 8 ft 5 in |
| Wheelbase | 4,332 mm | 14 ft 3 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 4,383 mm | 14 ft 5 in |
| Load floor height | 674 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,513 kg | 5,540 lb |

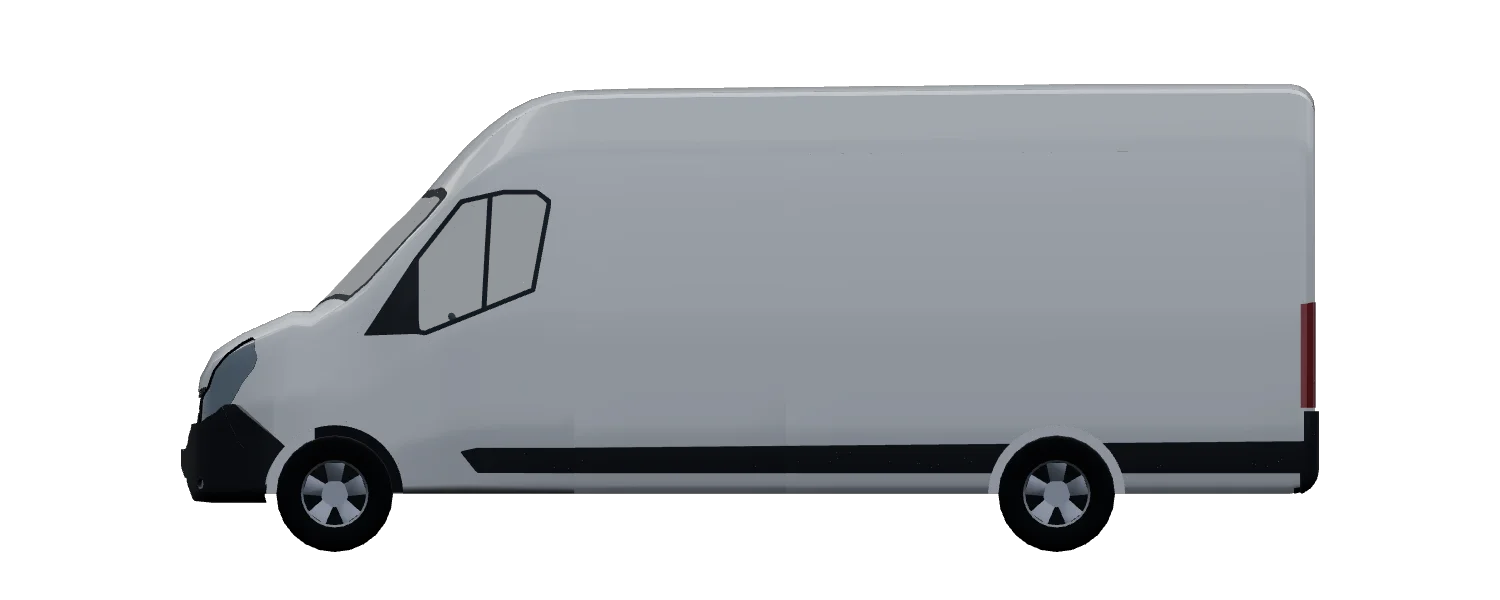

Renault Master L4H3 RWD
The Renault Master L4H3 RWD is 6,848 mm (22 ft 6 in) long, 2,070 mm (6 ft 9 in) wide and 2,808 mm (9 ft 3 in) tall, on a 4,332 mm (14 ft 3 in) wheelbase, with a load floor 674 mm (2 ft 3 in) off the ground, and 4,383 mm (14 ft 5 in) of floor behind the bulkhead. It weighs about 2,555 kg (5,633 lb) unladen.
Also known as: Extra-long wheelbase, high roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,848 mm | 22 ft 6 in |
| Overall width (excluding mirrors) | 2,070 mm | 6 ft 9 in |
| Overall height | 2,808 mm | 9 ft 3 in |
| Wheelbase | 4,332 mm | 14 ft 3 in |
| Side door opening | 1,270 mm | 4 ft 2 in |
| Load length at floor | 4,383 mm | 14 ft 5 in |
| Load floor height | 674 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,555 kg | 5,633 lb |
Every Renault Master version, side by side
8 sizes across 10 versions: one size can be sold in more than one drive layout, which changes the load floor height, the kerb weight and sometimes the overall height, with the manufacturer's published overall figures side by side. Each one is drawn and specified in full above, in both metric and imperial.
| Version | Length | Width | Height | Wheelbase | Load length | Load floor | Kerb weight |
|---|---|---|---|---|---|---|---|
| L1H1 FWD | 5,048 mm16 ft 7 in | 2,070 mm6 ft 9 in | 2,307 mm7 ft 7 in | 3,182 mm10 ft 5 in | 2,583 mm8 ft 6 in | 546 mm1 ft 9 in | 2,038 kg4,493 lb |
| L1H2 FWD | 5,048 mm16 ft 7 in | 2,070 mm6 ft 9 in | 2,500 mm8 ft 2 in | 3,182 mm10 ft 5 in | 2,583 mm8 ft 6 in | 546 mm1 ft 9 in | 2,066 kg4,555 lb |
| L2H2 FWD | 5,548 mm18 ft 2 in | 2,070 mm6 ft 9 in | 2,499 mm8 ft 2 in | 3,682 mm12 ft 1 in | 3,083 mm10 ft 1 in | 544 mm1 ft 9 in | 2,110 kg4,652 lb |
| L2H3 FWD | 5,548 mm18 ft 2 in | 2,070 mm6 ft 9 in | 2,749 mm9 ft | 3,682 mm12 ft 1 in | 3,083 mm10 ft 1 in | 544 mm1 ft 9 in | 2,151 kg4,742 lb |
| L3H2 FWD | 6,198 mm20 ft 4 in | 2,070 mm6 ft 9 in | 2,488 mm8 ft 2 in | 4,332 mm14 ft 3 in | 3,733 mm12 ft 3 in | 542 mm1 ft 9 in | 2,191 kg4,830 lb |
| L3H3 FWD | 6,198 mm20 ft 4 in | 2,070 mm6 ft 9 in | 2,744 mm9 ft | 4,332 mm14 ft 3 in | 3,733 mm12 ft 3 in | 542 mm1 ft 9 in | 2,231 kg4,919 lb |
| L3H2 RWD | 6,198 mm20 ft 4 in | 2,070 mm6 ft 9 in | 2,549 mm8 ft 4 in | 4,332 mm14 ft 3 in | 3,733 mm12 ft 3 in | 674 mm2 ft 3 in | 2,453 kg5,408 lb |
| L3H3 RWD | 6,198 mm20 ft 4 in | 2,070 mm6 ft 9 in | 2,815 mm9 ft 3 in | 4,332 mm14 ft 3 in | 3,733 mm12 ft 3 in | 674 mm2 ft 3 in | 2,495 kg5,501 lb |
| L4H2 RWD | 6,848 mm22 ft 6 in | 2,070 mm6 ft 9 in | 2,557 mm8 ft 5 in | 4,332 mm14 ft 3 in | 4,383 mm14 ft 5 in | 674 mm2 ft 3 in | 2,513 kg5,540 lb |
| L4H3 RWD | 6,848 mm22 ft 6 in | 2,070 mm6 ft 9 in | 2,808 mm9 ft 3 in | 4,332 mm14 ft 3 in | 4,383 mm14 ft 5 in | 674 mm2 ft 3 in | 2,555 kg5,633 lb |
Lengths exclude mirrors. Kerb weight is approximate - see how these figures were sourced at the bottom of the page.
How to read these figures
Kerb weights are researched from published manufacturer data, read on 5 August 2026. Basis: 2.3 Blue dCi 135 diesel, 3.5 t GVW panel van, base/START trim (lowest kerb).
Kerb weight (curb weight in North America) is the unladen mass in running order (all fluids, a 90% full fuel tank and a 75 kg driver), for a base-specification panel van at around 3.5 t gross. It is researched and approximate: a real van with options fitted will weigh more, and VanCAD lets you edit the figure on your own design.
Load length is the manufacturer's published floor length behind the bulkhead, measured at floor level in the bare van. Lining, battens and a false floor all take from it, and the figure says nothing about the height or width available above it.
One interior figure is published here, and it is the manufacturer's own: the load length at floor. Everything else about the inside of the van is deliberately absent. VanCAD's interior shapes come from traced reference models, so our own figures for load height, load width or the gap between the wheel arches would be wrong at the precision somebody cutting a bed frame needs, and a cited-and-wrong number is worse than none. Whether a given bed, shower or bike fits is a question the 3D tool answers by putting it in the van.
VanCAD models the mainstream panel van bodies and drive layouts for each van, not every factory option. A maker may also sell four-wheel-drive, chassis-cab or crew-van versions that are not listed here, so anything on this page about which layouts a van comes in describes the versions VanCAD offers rather than the maker's full range.
Source: www.renault.co.uk
