Volkswagen Crafter dimensions

SY/SZ (2017-present)

Published exterior dimensions for all 6 Volkswagen Crafter panel van sizes, with the wheelbase, the load floor height, the maximum internal load width and height, and the unladen weight you start a conversion from. Every size below can be loaded into the free 3D planner.

The Crafter is the range that starts big. Its shortest body is 5,986 mm, a full metre longer than the smallest Ducato, and the six sizes are really three lengths in two roof heights running out to 7,391 mm, with 3,450 mm to 4,855 mm of floor. There is no small Crafter to compromise into, which makes it a strong first van for a full-time layout with a fixed bed, a shower and a garage, and an awkward one if it has to fit a domestic driveway. Every one of the six is modelled in both front- and rear-wheel drive, which is unusual here and moves the load floor between 570 mm and 670 mm.

The Volkswagen Crafter is the same vehicle as the MAN TGE. Same body, same dimensions, same weight; a different badge and grille.

Volkswagen Crafter L3H2 FWD

The Volkswagen Crafter L3H2 FWD is 5,986 mm (19 ft 8 in) long, 2,040 mm (6 ft 8 in) wide and 2,355 mm (7 ft 9 in) tall, on a 3,640 mm (11 ft 11 in) wheelbase, with a load floor 570 mm (1 ft 10 in) off the ground, and 3,450 mm (11 ft 4 in) of floor behind the bulkhead. It weighs about 2,176 kg (4,797 lb) unladen.

Also known as: Medium wheelbase, standard roof.

Front-wheel drive

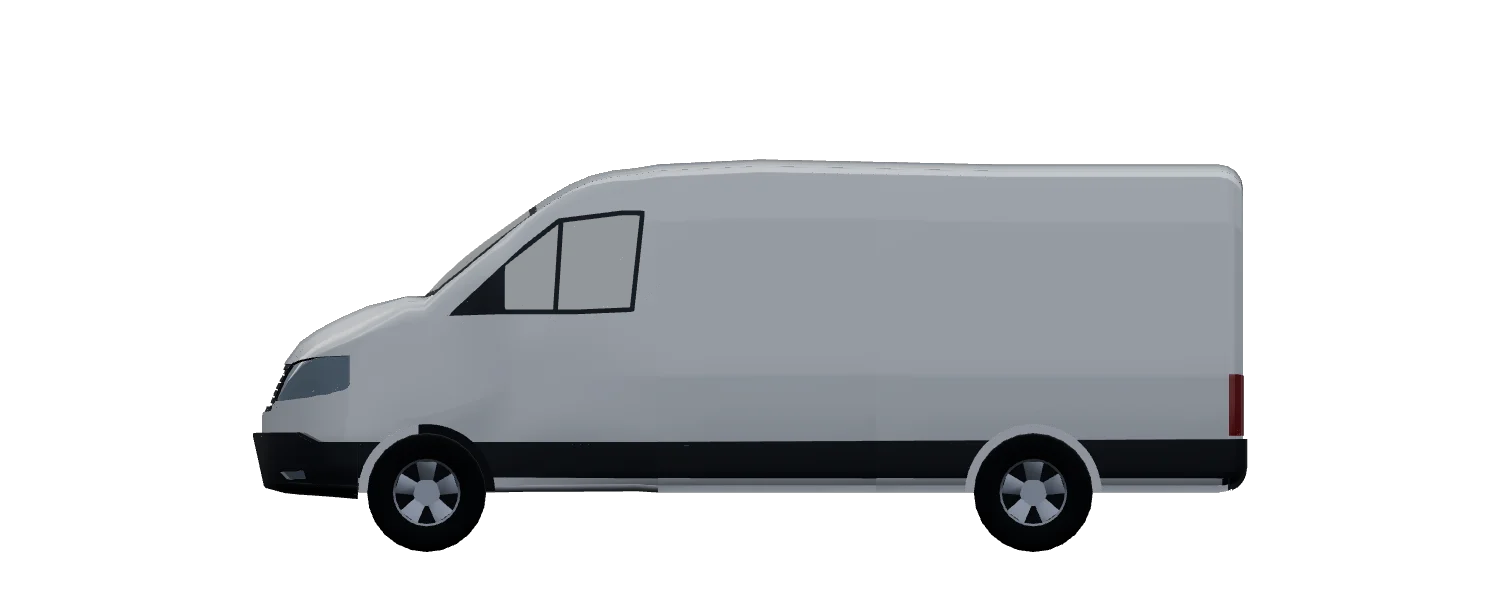

Side elevation of a Volkswagen Crafter L3H2 FWD

Volkswagen Crafter L3H2 FWD dimensions
Measurement	Metric	Imperial
Overall length	5,986 mm	19 ft 8 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,355 mm	7 ft 9 in
Wheelbase	3,640 mm	11 ft 11 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	3,450 mm	11 ft 4 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	1,726 mm	5 ft 8 in
Load floor height	570 mm	1 ft 10 in
Kerb weight (approximate)	2,176 kg	4,797 lb

Plan a Crafter L3H2 FWD layout Compare with another van

Volkswagen Crafter L3H2 RWD

The Volkswagen Crafter L3H2 RWD is 5,986 mm (19 ft 8 in) long, 2,040 mm (6 ft 8 in) wide and 2,355 mm (7 ft 9 in) tall, on a 3,640 mm (11 ft 11 in) wheelbase, with a load floor 670 mm (2 ft 2 in) off the ground, and 3,450 mm (11 ft 4 in) of floor behind the bulkhead. It weighs about 2,236 kg (4,930 lb) unladen.

Also known as: Medium wheelbase, standard roof.

Rear-wheel drive

Side elevation of a Volkswagen Crafter L3H2 RWD

Volkswagen Crafter L3H2 RWD dimensions
Measurement	Metric	Imperial
Overall length	5,986 mm	19 ft 8 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,355 mm	7 ft 9 in
Wheelbase	3,640 mm	11 ft 11 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	3,450 mm	11 ft 4 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	1,626 mm	5 ft 4 in
Load floor height	670 mm	2 ft 2 in
Kerb weight (approximate)	2,236 kg	4,930 lb

Plan a Crafter L3H2 RWD layout Compare with another van

Volkswagen Crafter L3H3 FWD

The Volkswagen Crafter L3H3 FWD is 5,986 mm (19 ft 8 in) long, 2,040 mm (6 ft 8 in) wide and 2,590 mm (8 ft 6 in) tall, on a 3,640 mm (11 ft 11 in) wheelbase, with a load floor 570 mm (1 ft 10 in) off the ground, and 3,450 mm (11 ft 4 in) of floor behind the bulkhead. It weighs about 2,245 kg (4,949 lb) unladen.

Also known as: Medium wheelbase, high roof.

Front-wheel drive

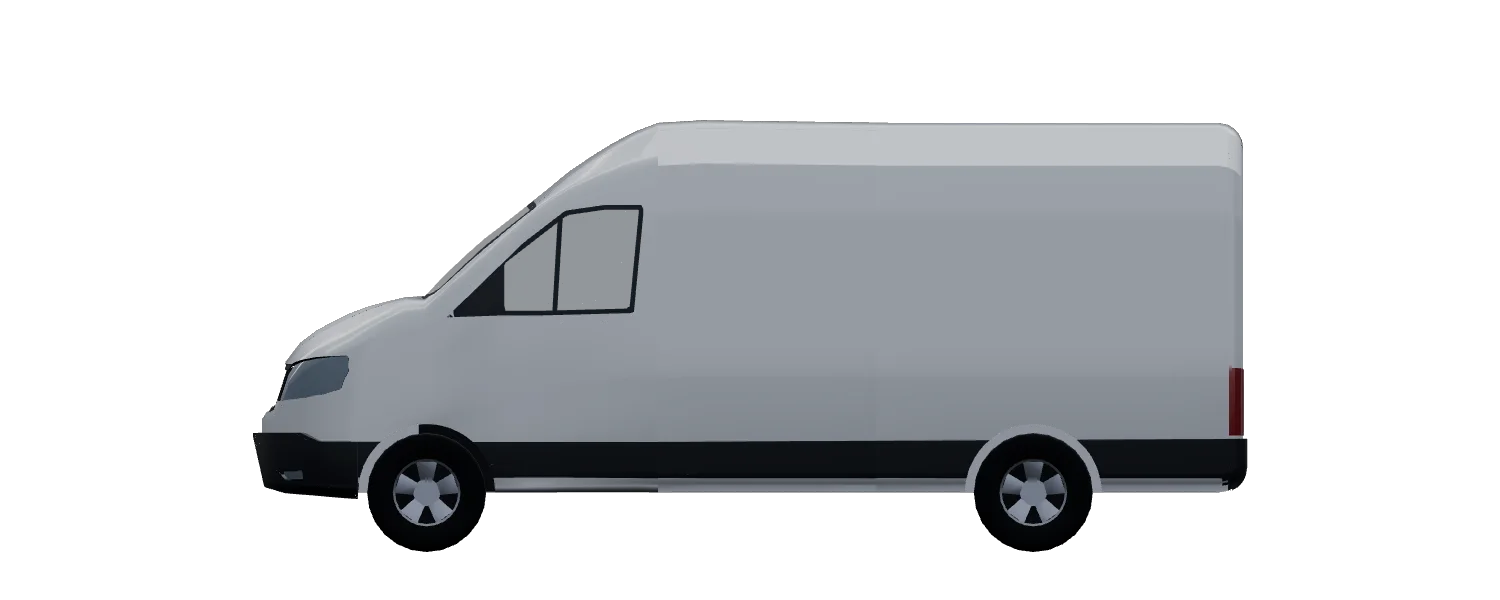

Side elevation of a Volkswagen Crafter L3H3 FWD

Volkswagen Crafter L3H3 FWD dimensions
Measurement	Metric	Imperial
Overall length	5,986 mm	19 ft 8 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,590 mm	8 ft 6 in
Wheelbase	3,640 mm	11 ft 11 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	3,450 mm	11 ft 4 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	1,961 mm	6 ft 5 in
Load floor height	570 mm	1 ft 10 in
Kerb weight (approximate)	2,245 kg	4,949 lb

Plan a Crafter L3H3 FWD layout Compare with another van

Volkswagen Crafter L3H3 RWD

The Volkswagen Crafter L3H3 RWD is 5,986 mm (19 ft 8 in) long, 2,040 mm (6 ft 8 in) wide and 2,590 mm (8 ft 6 in) tall, on a 3,640 mm (11 ft 11 in) wheelbase, with a load floor 670 mm (2 ft 2 in) off the ground, and 3,450 mm (11 ft 4 in) of floor behind the bulkhead. It weighs about 2,305 kg (5,082 lb) unladen.

Also known as: Medium wheelbase, high roof.

Rear-wheel drive

Side elevation of a Volkswagen Crafter L3H3 RWD

Volkswagen Crafter L3H3 RWD dimensions
Measurement	Metric	Imperial
Overall length	5,986 mm	19 ft 8 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,590 mm	8 ft 6 in
Wheelbase	3,640 mm	11 ft 11 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	3,450 mm	11 ft 4 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	1,861 mm	6 ft 1 in
Load floor height	670 mm	2 ft 2 in
Kerb weight (approximate)	2,305 kg	5,082 lb

Plan a Crafter L3H3 RWD layout Compare with another van

Volkswagen Crafter L4H3 FWD

The Volkswagen Crafter L4H3 FWD is 6,836 mm (22 ft 5 in) long, 2,040 mm (6 ft 8 in) wide and 2,590 mm (8 ft 6 in) tall, on a 4,490 mm (14 ft 9 in) wheelbase, with a load floor 570 mm (1 ft 10 in) off the ground, and 4,300 mm (14 ft 1 in) of floor behind the bulkhead. It weighs about 2,349 kg (5,179 lb) unladen.

Also known as: Long wheelbase, high roof.

Front-wheel drive

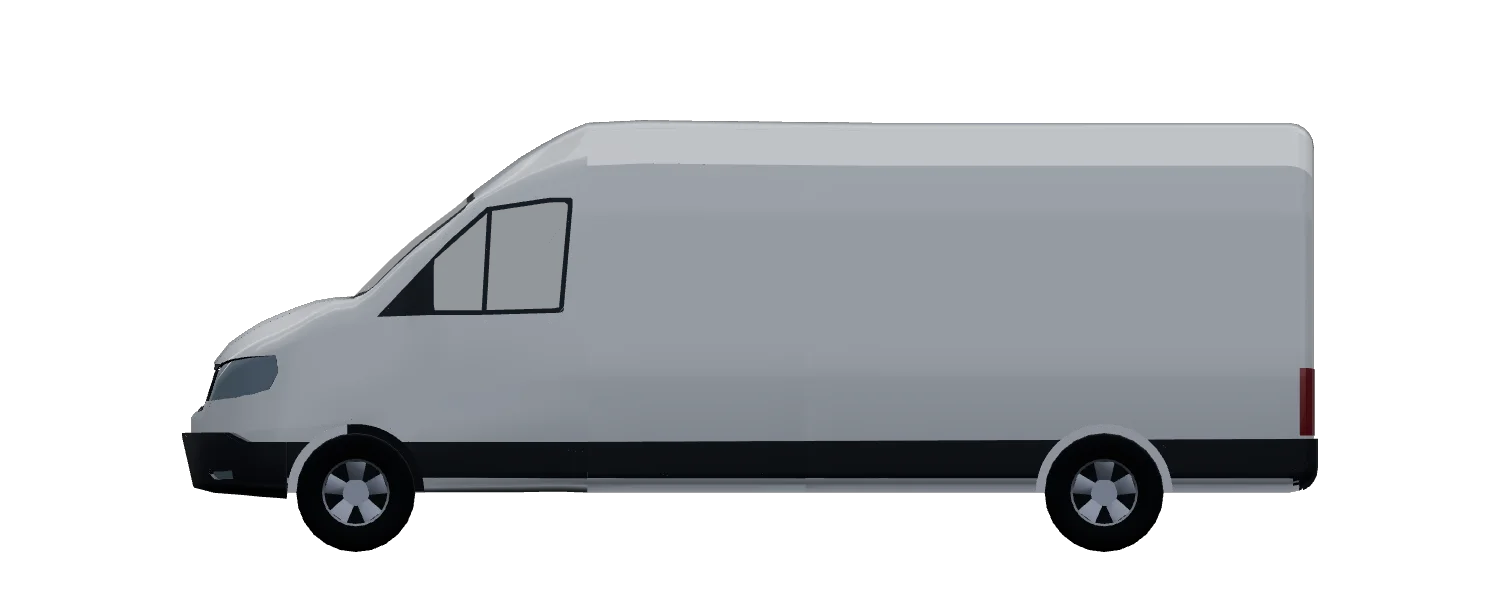

Side elevation of a Volkswagen Crafter L4H3 FWD

Volkswagen Crafter L4H3 FWD dimensions
Measurement	Metric	Imperial
Overall length	6,836 mm	22 ft 5 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,590 mm	8 ft 6 in
Wheelbase	4,490 mm	14 ft 9 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	4,300 mm	14 ft 1 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	1,961 mm	6 ft 5 in
Load floor height	570 mm	1 ft 10 in
Kerb weight (approximate)	2,349 kg	5,179 lb

Plan a Crafter L4H3 FWD layout Compare with another van

Volkswagen Crafter L4H3 RWD

The Volkswagen Crafter L4H3 RWD is 6,836 mm (22 ft 5 in) long, 2,040 mm (6 ft 8 in) wide and 2,590 mm (8 ft 6 in) tall, on a 4,490 mm (14 ft 9 in) wheelbase, with a load floor 670 mm (2 ft 2 in) off the ground, and 4,300 mm (14 ft 1 in) of floor behind the bulkhead. It weighs about 2,417 kg (5,329 lb) unladen.

Also known as: Long wheelbase, high roof.

Rear-wheel drive

Side elevation of a Volkswagen Crafter L4H3 RWD

Volkswagen Crafter L4H3 RWD dimensions
Measurement	Metric	Imperial
Overall length	6,836 mm	22 ft 5 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,590 mm	8 ft 6 in
Wheelbase	4,490 mm	14 ft 9 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	4,300 mm	14 ft 1 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	1,861 mm	6 ft 1 in
Load floor height	670 mm	2 ft 2 in
Kerb weight (approximate)	2,417 kg	5,329 lb

Plan a Crafter L4H3 RWD layout Compare with another van

Volkswagen Crafter L4H4 FWD

The Volkswagen Crafter L4H4 FWD is 6,836 mm (22 ft 5 in) long, 2,040 mm (6 ft 8 in) wide and 2,798 mm (9 ft 2 in) tall, on a 4,490 mm (14 ft 9 in) wheelbase, with a load floor 570 mm (1 ft 10 in) off the ground, and 4,300 mm (14 ft 1 in) of floor behind the bulkhead. It weighs about 2,377 kg (5,240 lb) unladen.

Also known as: Long wheelbase, super-high roof.

Front-wheel drive

Side elevation of a Volkswagen Crafter L4H4 FWD

Volkswagen Crafter L4H4 FWD dimensions
Measurement	Metric	Imperial
Overall length	6,836 mm	22 ft 5 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,798 mm	9 ft 2 in
Wheelbase	4,490 mm	14 ft 9 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	4,300 mm	14 ft 1 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	2,196 mm	7 ft 2 in
Load floor height	570 mm	1 ft 10 in
Kerb weight (approximate)	2,377 kg	5,240 lb

Plan a Crafter L4H4 FWD layout Compare with another van

Volkswagen Crafter L4H4 RWD

The Volkswagen Crafter L4H4 RWD is 6,836 mm (22 ft 5 in) long, 2,040 mm (6 ft 8 in) wide and 2,798 mm (9 ft 2 in) tall, on a 4,490 mm (14 ft 9 in) wheelbase, with a load floor 670 mm (2 ft 2 in) off the ground, and 4,300 mm (14 ft 1 in) of floor behind the bulkhead. It weighs about 2,445 kg (5,390 lb) unladen.

Also known as: Long wheelbase, super-high roof.

Rear-wheel drive

Side elevation of a Volkswagen Crafter L4H4 RWD

Volkswagen Crafter L4H4 RWD dimensions
Measurement	Metric	Imperial
Overall length	6,836 mm	22 ft 5 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,798 mm	9 ft 2 in
Wheelbase	4,490 mm	14 ft 9 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	4,300 mm	14 ft 1 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	2,096 mm	6 ft 11 in
Load floor height	670 mm	2 ft 2 in
Kerb weight (approximate)	2,445 kg	5,390 lb

Plan a Crafter L4H4 RWD layout Compare with another van

Volkswagen Crafter L5H3 FWD

The Volkswagen Crafter L5H3 FWD is 7,391 mm (24 ft 3 in) long, 2,040 mm (6 ft 8 in) wide and 2,590 mm (8 ft 6 in) tall, on a 4,490 mm (14 ft 9 in) wheelbase, with a load floor 570 mm (1 ft 10 in) off the ground, and 4,855 mm (15 ft 11 in) of floor behind the bulkhead. It weighs about 2,416 kg (5,326 lb) unladen.

Also known as: Extra-long wheelbase, high roof; Maxi.

Front-wheel drive

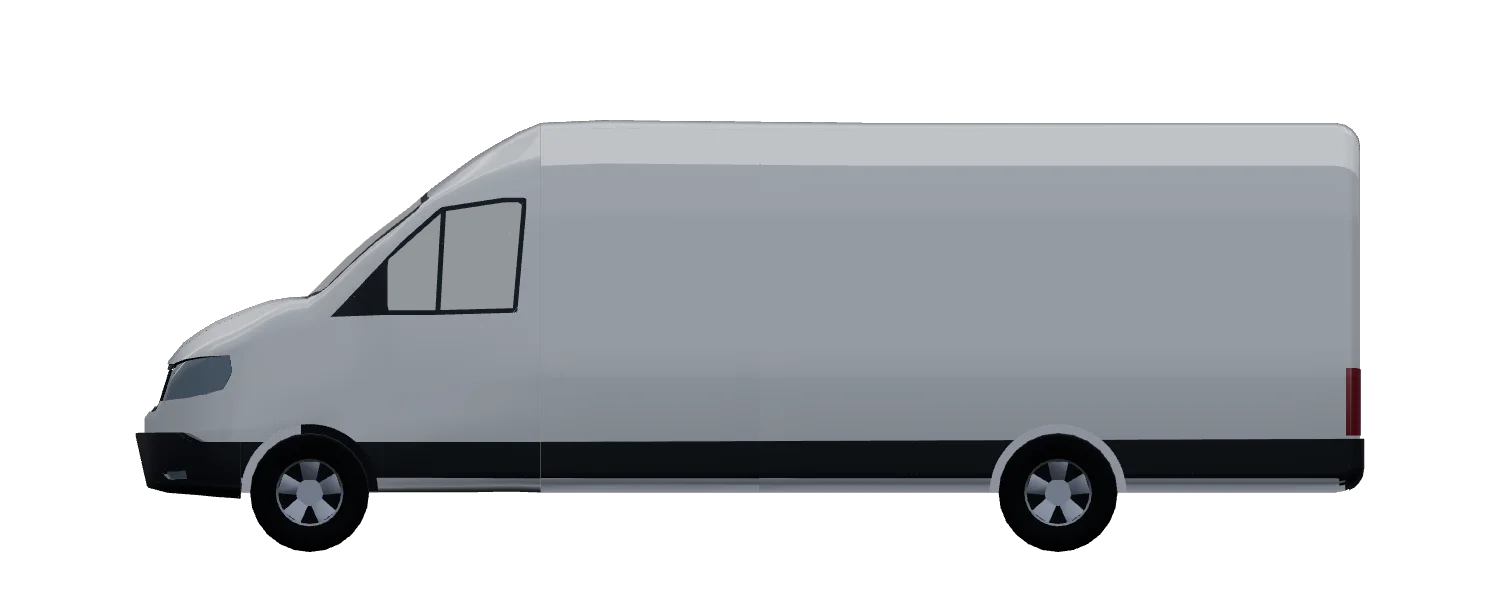

Side elevation of a Volkswagen Crafter L5H3 FWD

Volkswagen Crafter L5H3 FWD dimensions
Measurement	Metric	Imperial
Overall length	7,391 mm	24 ft 3 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,590 mm	8 ft 6 in
Wheelbase	4,490 mm	14 ft 9 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	4,855 mm	15 ft 11 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	1,961 mm	6 ft 5 in
Load floor height	570 mm	1 ft 10 in
Kerb weight (approximate)	2,416 kg	5,326 lb

Plan a Crafter L5H3 FWD layout Compare with another van

Volkswagen Crafter L5H3 RWD

The Volkswagen Crafter L5H3 RWD is 7,391 mm (24 ft 3 in) long, 2,040 mm (6 ft 8 in) wide and 2,590 mm (8 ft 6 in) tall, on a 4,490 mm (14 ft 9 in) wheelbase, with a load floor 670 mm (2 ft 2 in) off the ground, and 4,855 mm (15 ft 11 in) of floor behind the bulkhead. It weighs about 2,488 kg (5,485 lb) unladen.

Also known as: Extra-long wheelbase, high roof; Maxi.

Rear-wheel drive

Side elevation of a Volkswagen Crafter L5H3 RWD

Volkswagen Crafter L5H3 RWD dimensions
Measurement	Metric	Imperial
Overall length	7,391 mm	24 ft 3 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,590 mm	8 ft 6 in
Wheelbase	4,490 mm	14 ft 9 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	4,855 mm	15 ft 11 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	1,861 mm	6 ft 1 in
Load floor height	670 mm	2 ft 2 in
Kerb weight (approximate)	2,488 kg	5,485 lb

Plan a Crafter L5H3 RWD layout Compare with another van

Volkswagen Crafter L5H4 FWD

The Volkswagen Crafter L5H4 FWD is 7,391 mm (24 ft 3 in) long, 2,040 mm (6 ft 8 in) wide and 2,798 mm (9 ft 2 in) tall, on a 4,490 mm (14 ft 9 in) wheelbase, with a load floor 570 mm (1 ft 10 in) off the ground, and 4,855 mm (15 ft 11 in) of floor behind the bulkhead. It weighs about 2,444 kg (5,388 lb) unladen.

Also known as: Extra-long wheelbase, super-high roof; Maxi.

Front-wheel drive

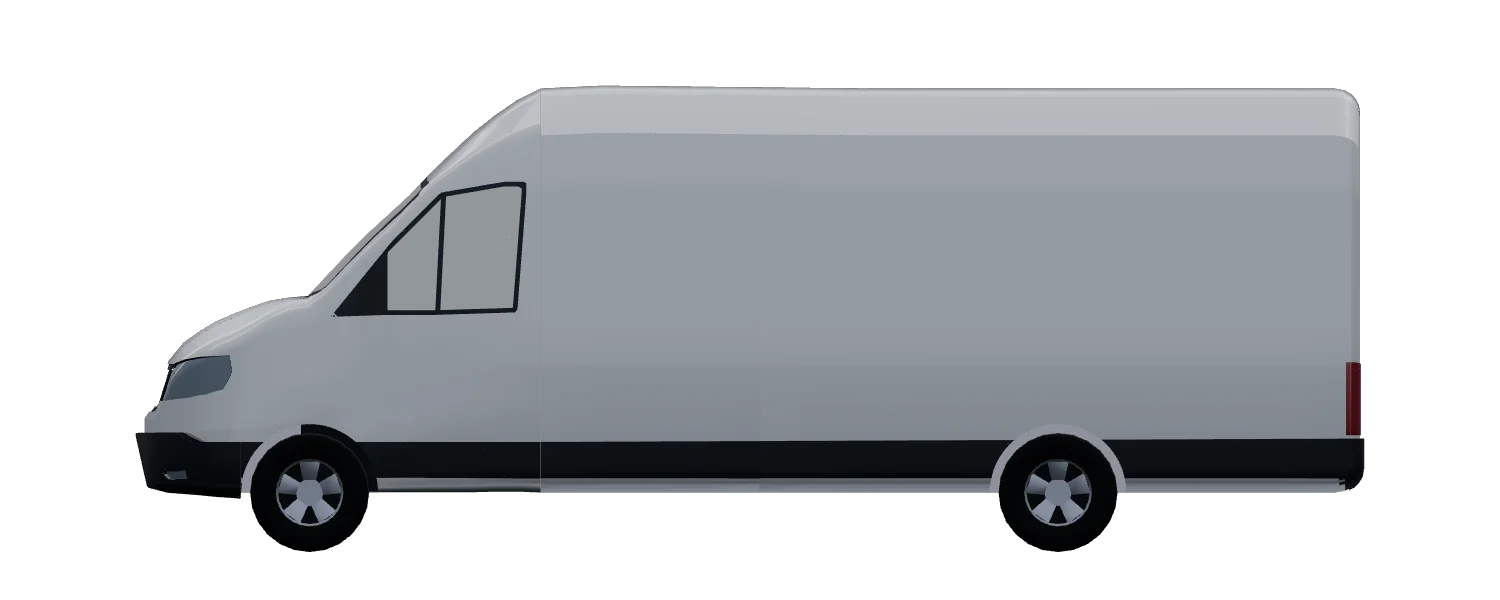

Side elevation of a Volkswagen Crafter L5H4 FWD

Volkswagen Crafter L5H4 FWD dimensions
Measurement	Metric	Imperial
Overall length	7,391 mm	24 ft 3 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,798 mm	9 ft 2 in
Wheelbase	4,490 mm	14 ft 9 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	4,855 mm	15 ft 11 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	2,196 mm	7 ft 2 in
Load floor height	570 mm	1 ft 10 in
Kerb weight (approximate)	2,444 kg	5,388 lb

Plan a Crafter L5H4 FWD layout Compare with another van

Volkswagen Crafter L5H4 RWD

The Volkswagen Crafter L5H4 RWD is 7,391 mm (24 ft 3 in) long, 2,040 mm (6 ft 8 in) wide and 2,798 mm (9 ft 2 in) tall, on a 4,490 mm (14 ft 9 in) wheelbase, with a load floor 670 mm (2 ft 2 in) off the ground, and 4,855 mm (15 ft 11 in) of floor behind the bulkhead. It weighs about 2,516 kg (5,547 lb) unladen.

Also known as: Extra-long wheelbase, super-high roof; Maxi.

Rear-wheel drive

Side elevation of a Volkswagen Crafter L5H4 RWD

Volkswagen Crafter L5H4 RWD dimensions
Measurement	Metric	Imperial
Overall length	7,391 mm	24 ft 3 in
Overall width (excluding mirrors)	2,040 mm	6 ft 8 in
Overall height	2,798 mm	9 ft 2 in
Wheelbase	4,490 mm	14 ft 9 in
Side door opening	1,310 mm	4 ft 4 in
Load length at floor	4,855 mm	15 ft 11 in
Maximum internal load width	1,832 mm	6 ft
Maximum internal load height	2,096 mm	6 ft 11 in
Load floor height	670 mm	2 ft 2 in
Kerb weight (approximate)	2,516 kg	5,547 lb

Plan a Crafter L5H4 RWD layout Compare with another van

Every Volkswagen Crafter version, side by side

6 sizes across 12 versions: one size can be sold in more than one drive layout, which changes the load floor height, the kerb weight and sometimes the overall height, with the manufacturer's published overall figures side by side. Each one is drawn and specified in full above, in both metric and imperial.

Volkswagen Crafter dimensions by version
Version	Length	Width	Height	Wheelbase	Load length	Max load width	Max load height	Load floor	Kerb weight
L3H2 FWD	5,986 mm19 ft 8 in	2,040 mm6 ft 8 in	2,355 mm7 ft 9 in	3,640 mm11 ft 11 in	3,450 mm11 ft 4 in	1,832 mm6 ft	1,726 mm5 ft 8 in	570 mm1 ft 10 in	2,176 kg4,797 lb
L3H2 RWD	5,986 mm19 ft 8 in	2,040 mm6 ft 8 in	2,355 mm7 ft 9 in	3,640 mm11 ft 11 in	3,450 mm11 ft 4 in	1,832 mm6 ft	1,626 mm5 ft 4 in	670 mm2 ft 2 in	2,236 kg4,930 lb
L3H3 FWD	5,986 mm19 ft 8 in	2,040 mm6 ft 8 in	2,590 mm8 ft 6 in	3,640 mm11 ft 11 in	3,450 mm11 ft 4 in	1,832 mm6 ft	1,961 mm6 ft 5 in	570 mm1 ft 10 in	2,245 kg4,949 lb
L3H3 RWD	5,986 mm19 ft 8 in	2,040 mm6 ft 8 in	2,590 mm8 ft 6 in	3,640 mm11 ft 11 in	3,450 mm11 ft 4 in	1,832 mm6 ft	1,861 mm6 ft 1 in	670 mm2 ft 2 in	2,305 kg5,082 lb
L4H3 FWD	6,836 mm22 ft 5 in	2,040 mm6 ft 8 in	2,590 mm8 ft 6 in	4,490 mm14 ft 9 in	4,300 mm14 ft 1 in	1,832 mm6 ft	1,961 mm6 ft 5 in	570 mm1 ft 10 in	2,349 kg5,179 lb
L4H3 RWD	6,836 mm22 ft 5 in	2,040 mm6 ft 8 in	2,590 mm8 ft 6 in	4,490 mm14 ft 9 in	4,300 mm14 ft 1 in	1,832 mm6 ft	1,861 mm6 ft 1 in	670 mm2 ft 2 in	2,417 kg5,329 lb
L4H4 FWD	6,836 mm22 ft 5 in	2,040 mm6 ft 8 in	2,798 mm9 ft 2 in	4,490 mm14 ft 9 in	4,300 mm14 ft 1 in	1,832 mm6 ft	2,196 mm7 ft 2 in	570 mm1 ft 10 in	2,377 kg5,240 lb
L4H4 RWD	6,836 mm22 ft 5 in	2,040 mm6 ft 8 in	2,798 mm9 ft 2 in	4,490 mm14 ft 9 in	4,300 mm14 ft 1 in	1,832 mm6 ft	2,096 mm6 ft 11 in	670 mm2 ft 2 in	2,445 kg5,390 lb
L5H3 FWD	7,391 mm24 ft 3 in	2,040 mm6 ft 8 in	2,590 mm8 ft 6 in	4,490 mm14 ft 9 in	4,855 mm15 ft 11 in	1,832 mm6 ft	1,961 mm6 ft 5 in	570 mm1 ft 10 in	2,416 kg5,326 lb
L5H3 RWD	7,391 mm24 ft 3 in	2,040 mm6 ft 8 in	2,590 mm8 ft 6 in	4,490 mm14 ft 9 in	4,855 mm15 ft 11 in	1,832 mm6 ft	1,861 mm6 ft 1 in	670 mm2 ft 2 in	2,488 kg5,485 lb
L5H4 FWD	7,391 mm24 ft 3 in	2,040 mm6 ft 8 in	2,798 mm9 ft 2 in	4,490 mm14 ft 9 in	4,855 mm15 ft 11 in	1,832 mm6 ft	2,196 mm7 ft 2 in	570 mm1 ft 10 in	2,444 kg5,388 lb
L5H4 RWD	7,391 mm24 ft 3 in	2,040 mm6 ft 8 in	2,798 mm9 ft 2 in	4,490 mm14 ft 9 in	4,855 mm15 ft 11 in	1,832 mm6 ft	2,096 mm6 ft 11 in	670 mm2 ft 2 in	2,516 kg5,547 lb

Lengths exclude mirrors. Kerb weight is approximate - see how these figures were sourced at the bottom of the page.
