Fiat Talento dimensions
3rd gen (X82, 2014-2021)
Published exterior dimensions for all 4 Fiat Talento panel van sizes, with the wheelbase, the load floor height, the maximum internal load width and height, and the unladen weight you start a conversion from. Every size below can be loaded into the free 3D planner.
The Talento is Fiat's name for the Renault Trafic, carried for only a few years before Fiat moved the badge elsewhere, which makes it the rarest of the four names this van wears. Mechanically there is nothing in it: the same 4,999 mm and 5,399 mm bodies, the same 1,956 mm width, the same 552 mm to the load floor. If one turns up at the right money, look at the roof rather than the badge. A low roof and a high roof are 524 mm apart on this van, and that gap decides the whole build long before the name on the tailgate does.
The Fiat Talento is the same vehicle as the Renault Trafic, Vauxhall Vivaro, Opel Vivaro, Nissan NV300 and Nissan Primastar. Same body, same dimensions, same weight; a different badge and grille.
See also: Renault Trafic dimensions, Vauxhall Vivaro dimensions, Opel Vivaro dimensions, Nissan NV300 dimensions, Nissan Primastar dimensions.

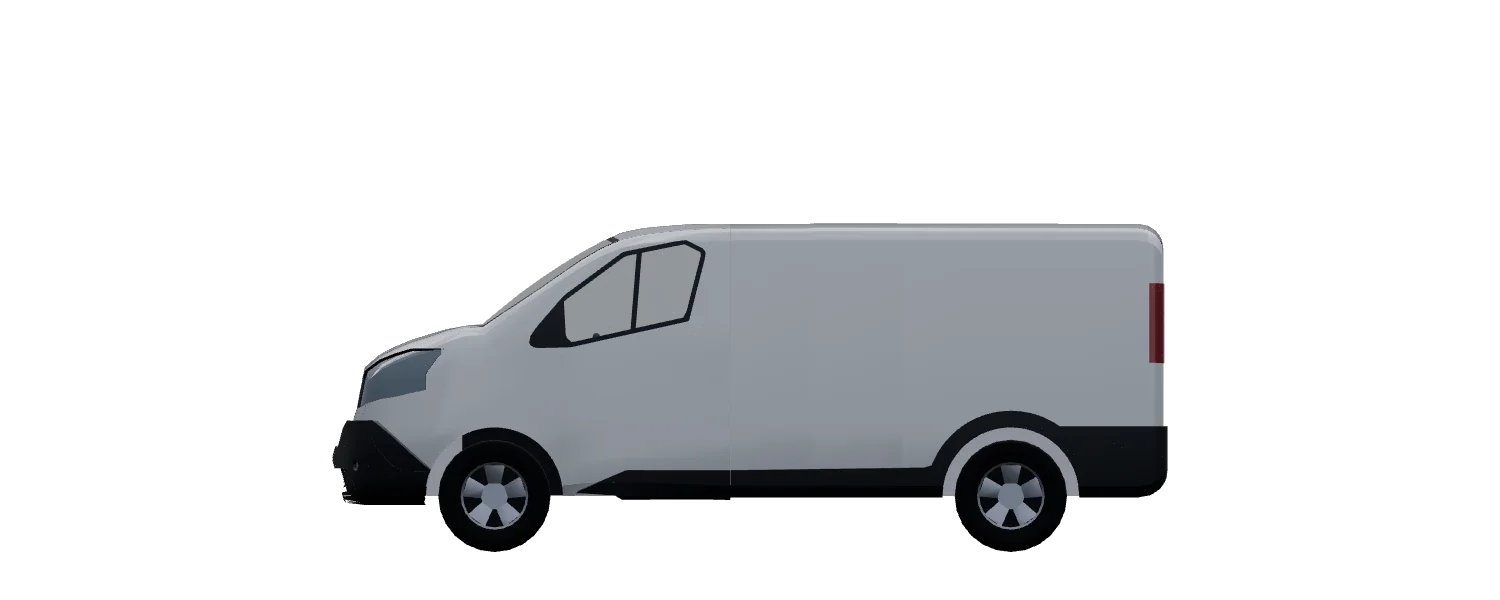

Fiat Talento L1H1
The Fiat Talento L1H1 is 4,999 mm (16 ft 5 in) long, 1,956 mm (6 ft 5 in) wide and 1,971 mm (6 ft 6 in) tall, on a 3,098 mm (10 ft 2 in) wheelbase, with a load floor 552 mm (1 ft 10 in) off the ground, and 2,537 mm (8 ft 4 in) of floor behind the bulkhead. It weighs about 1,736 kg (3,827 lb) unladen.
Also known as: Short wheelbase, standard roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 4,999 mm | 16 ft 5 in |
| Overall width (excluding mirrors) | 1,956 mm | 6 ft 5 in |
| Overall height | 1,971 mm | 6 ft 6 in |
| Wheelbase | 3,098 mm | 10 ft 2 in |
| Side door opening | 1,030 mm | 3 ft 5 in |
| Load length at floor | 2,537 mm | 8 ft 4 in |
| Maximum internal load width | 1,662 mm | 5 ft 5 in |
| Maximum internal load height | 1,387 mm | 4 ft 7 in |
| Load floor height | 552 mm | 1 ft 10 in |
| Kerb weight (approximate) | 1,736 kg | 3,827 lb |

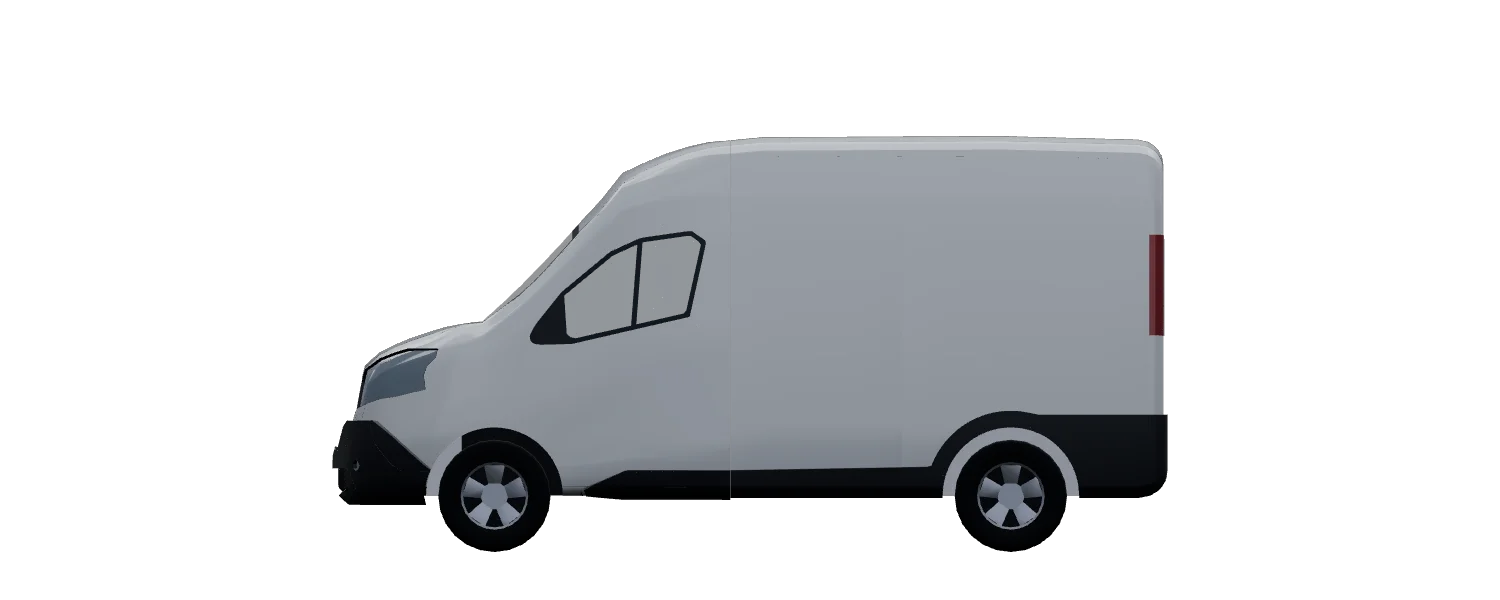

Fiat Talento L1H2
The Fiat Talento L1H2 is 4,999 mm (16 ft 5 in) long, 1,956 mm (6 ft 5 in) wide and 2,495 mm (8 ft 2 in) tall, on a 3,098 mm (10 ft 2 in) wheelbase, with a load floor 552 mm (1 ft 10 in) off the ground, and 2,537 mm (8 ft 4 in) of floor behind the bulkhead. It weighs about 1,835 kg (4,045 lb) unladen.
Also known as: Short wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 4,999 mm | 16 ft 5 in |
| Overall width (excluding mirrors) | 1,956 mm | 6 ft 5 in |
| Overall height | 2,495 mm | 8 ft 2 in |
| Wheelbase | 3,098 mm | 10 ft 2 in |
| Side door opening | 1,030 mm | 3 ft 5 in |
| Load length at floor | 2,537 mm | 8 ft 4 in |
| Maximum internal load width | 1,662 mm | 5 ft 5 in |
| Maximum internal load height | 1,898 mm | 6 ft 3 in |
| Load floor height | 552 mm | 1 ft 10 in |
| Kerb weight (approximate) | 1,835 kg | 4,045 lb |
Fiat Talento L2H1
The Fiat Talento L2H1 is 5,399 mm (17 ft 9 in) long, 1,956 mm (6 ft 5 in) wide and 1,971 mm (6 ft 6 in) tall, on a 3,498 mm (11 ft 6 in) wheelbase, with a load floor 552 mm (1 ft 10 in) off the ground, and 2,937 mm (9 ft 8 in) of floor behind the bulkhead. It weighs about 1,766 kg (3,893 lb) unladen.
Also known as: Long wheelbase, standard roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,399 mm | 17 ft 9 in |
| Overall width (excluding mirrors) | 1,956 mm | 6 ft 5 in |
| Overall height | 1,971 mm | 6 ft 6 in |
| Wheelbase | 3,498 mm | 11 ft 6 in |
| Side door opening | 1,030 mm | 3 ft 5 in |
| Load length at floor | 2,937 mm | 9 ft 8 in |
| Maximum internal load width | 1,662 mm | 5 ft 5 in |
| Maximum internal load height | 1,387 mm | 4 ft 7 in |
| Load floor height | 552 mm | 1 ft 10 in |
| Kerb weight (approximate) | 1,766 kg | 3,893 lb |

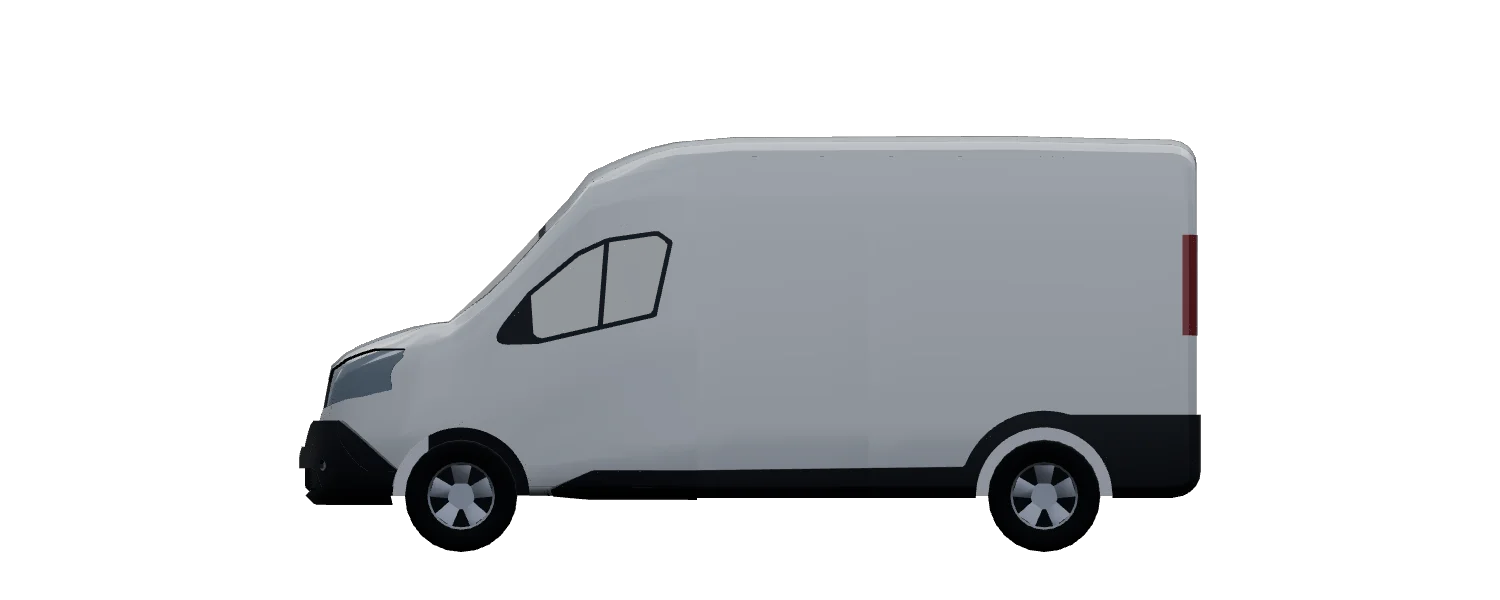

Fiat Talento L2H2
The Fiat Talento L2H2 is 5,399 mm (17 ft 9 in) long, 1,956 mm (6 ft 5 in) wide and 2,495 mm (8 ft 2 in) tall, on a 3,498 mm (11 ft 6 in) wheelbase, with a load floor 552 mm (1 ft 10 in) off the ground, and 2,937 mm (9 ft 8 in) of floor behind the bulkhead. It weighs about 1,895 kg (4,178 lb) unladen.
Also known as: Long wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,399 mm | 17 ft 9 in |
| Overall width (excluding mirrors) | 1,956 mm | 6 ft 5 in |
| Overall height | 2,495 mm | 8 ft 2 in |
| Wheelbase | 3,498 mm | 11 ft 6 in |
| Side door opening | 1,030 mm | 3 ft 5 in |
| Load length at floor | 2,937 mm | 9 ft 8 in |
| Maximum internal load width | 1,662 mm | 5 ft 5 in |
| Maximum internal load height | 1,898 mm | 6 ft 3 in |
| Load floor height | 552 mm | 1 ft 10 in |
| Kerb weight (approximate) | 1,895 kg | 4,178 lb |
Every Fiat Talento version, side by side
4 sizes, with the manufacturer's published overall figures side by side. Each one is drawn and specified in full above, in both metric and imperial.
| Version | Length | Width | Height | Wheelbase | Load length | Max load width | Max load height | Load floor | Kerb weight |
|---|---|---|---|---|---|---|---|---|---|
| L1H1 | 4,999 mm16 ft 5 in | 1,956 mm6 ft 5 in | 1,971 mm6 ft 6 in | 3,098 mm10 ft 2 in | 2,537 mm8 ft 4 in | 1,662 mm5 ft 5 in | 1,387 mm4 ft 7 in | 552 mm1 ft 10 in | 1,736 kg3,827 lb |
| L1H2 | 4,999 mm16 ft 5 in | 1,956 mm6 ft 5 in | 2,495 mm8 ft 2 in | 3,098 mm10 ft 2 in | 2,537 mm8 ft 4 in | 1,662 mm5 ft 5 in | 1,898 mm6 ft 3 in | 552 mm1 ft 10 in | 1,835 kg4,045 lb |
| L2H1 | 5,399 mm17 ft 9 in | 1,956 mm6 ft 5 in | 1,971 mm6 ft 6 in | 3,498 mm11 ft 6 in | 2,937 mm9 ft 8 in | 1,662 mm5 ft 5 in | 1,387 mm4 ft 7 in | 552 mm1 ft 10 in | 1,766 kg3,893 lb |
| L2H2 | 5,399 mm17 ft 9 in | 1,956 mm6 ft 5 in | 2,495 mm8 ft 2 in | 3,498 mm11 ft 6 in | 2,937 mm9 ft 8 in | 1,662 mm5 ft 5 in | 1,898 mm6 ft 3 in | 552 mm1 ft 10 in | 1,895 kg4,178 lb |
Lengths exclude mirrors. Kerb weight is approximate - see how these figures were sourced at the bottom of the page.
Compare the Fiat Talento
Rival vans (4)
One size up (1)
Two sizes of one van (1)
How to read these figures
Kerb weights are researched from published Renault Trafic data - the same vehicle, read on 18 August 2026. Basis: dCi 90/95 Business, FWD, 2.74-3.02 t GVW - the base trim, which is the lowest of the three Renault publishes (Business / Business+ / Sport).
Kerb weight (curb weight in North America) is the unladen mass in running order (all fluids, a 90% full fuel tank and a 75 kg driver), for a base-specification panel van. It is researched and approximate: a real van with options fitted will weigh more, and VanCAD lets you edit the figure on your own design.
Load length is the manufacturer's published floor length behind the bulkhead, measured at floor level in the bare van. Lining, battens and a false floor all take from it, and the figure says nothing about the height or width available above it.
Interior figures are the manufacturer's published load length at floor, maximum internal load width and maximum internal load height, where available. These are before conversion: lining, insulation and flooring reduce usable space, and maximum dimensions do not apply everywhere inside the van. Check your own vehicle before cutting or building. VanCAD's traced interior shapes are illustrative and are never used as published measurements.
Maximum internal load width and height sources (Renault Trafic): www.renault-trucks.co.uk
VanCAD models the mainstream panel van bodies and drive layouts for each van, not every factory option. A maker may also sell four-wheel-drive, chassis-cab or crew-van versions that are not listed here, so anything on this page about which layouts a van comes in describes the versions VanCAD offers rather than the maker's full range.
Source: globalvans.co.uk
Will your layout fit?
Load a Fiat Talento into the browser, place a bed, a kitchen and a shower at real millimetre sizes, and read back the weight you have added. Free, with no install.
