Ford Transit dimensions
V363 (2014-present, 2019 facelift)
Published exterior dimensions for all 5 Ford Transit panel van sizes, with the wheelbase, the load floor height, the maximum internal load width and height, and the unladen weight you start a conversion from. Every size below can be loaded into the free 3D planner.
The Transit is the only van VanCAD models in all three drive layouts, and four of its five bodies come in front-, rear- and all-wheel drive. They are not interchangeable: the front-wheel-drive floor starts at 613 mm off the ground and the rear- and all-wheel-drive versions at 713 mm, a full 100 mm of standing height traded for traction. Five body sizes, thirteen versions in all, which is more ways to spec one van than anything else here and a good reason to check exactly which one you are being sold before you draw a layout against it.

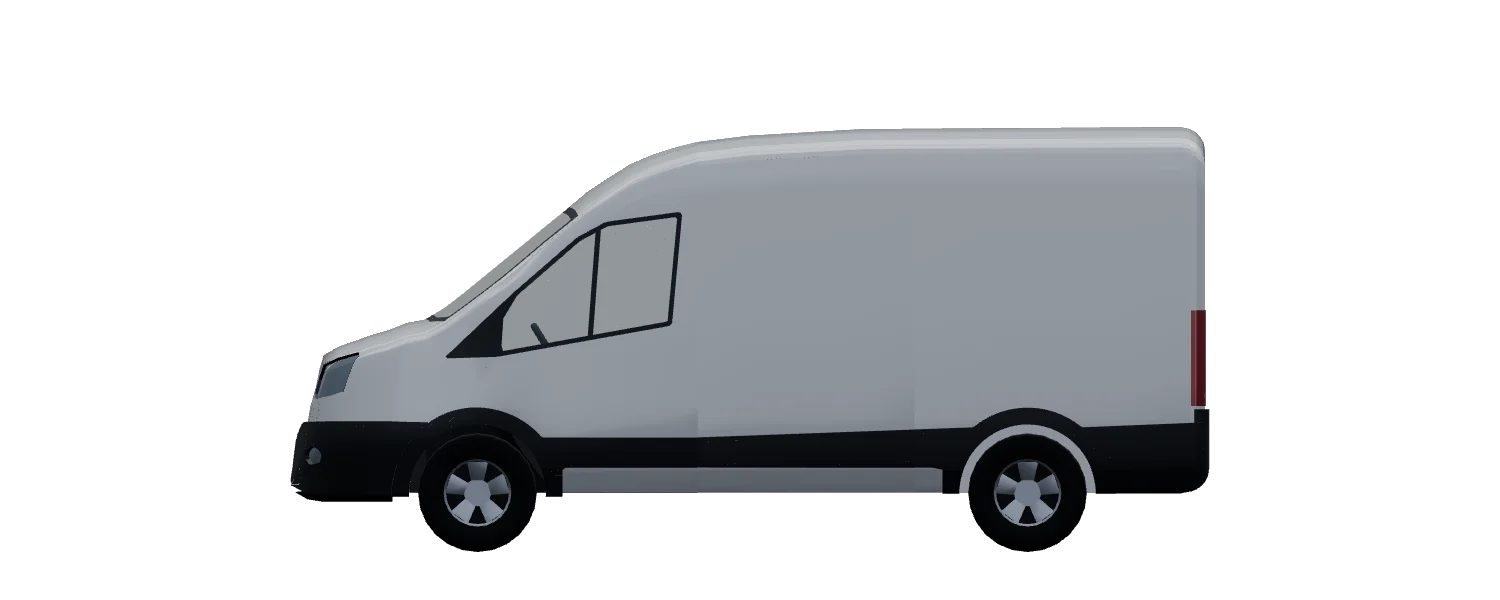

Ford Transit L2H2 FWD
The Ford Transit L2H2 FWD is 5,531 mm (18 ft 2 in) long, 2,059 mm (6 ft 9 in) wide and 2,550 mm (8 ft 4 in) tall, on a 3,300 mm (10 ft 10 in) wheelbase, with a load floor 613 mm (2 ft) off the ground, and 2,946 mm (9 ft 8 in) of floor behind the bulkhead. It weighs about 2,095 kg (4,619 lb) unladen.
Also known as: Short wheelbase, medium roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,531 mm | 18 ft 2 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,550 mm | 8 ft 4 in |
| Wheelbase | 3,300 mm | 10 ft 10 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 2,946 mm | 9 ft 8 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 1,886 mm | 6 ft 2 in |
| Load floor height | 613 mm | 2 ft |
| Kerb weight (approximate) | 2,095 kg | 4,619 lb |
Ford Transit L2H2 RWD
The Ford Transit L2H2 RWD is 5,531 mm (18 ft 2 in) long, 2,059 mm (6 ft 9 in) wide and 2,550 mm (8 ft 4 in) tall, on a 3,300 mm (10 ft 10 in) wheelbase, with a load floor 713 mm (2 ft 4 in) off the ground, and 2,946 mm (9 ft 8 in) of floor behind the bulkhead. It weighs about 2,185 kg (4,817 lb) unladen.
Also known as: Short wheelbase, medium roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,531 mm | 18 ft 2 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,550 mm | 8 ft 4 in |
| Wheelbase | 3,300 mm | 10 ft 10 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 2,946 mm | 9 ft 8 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 1,786 mm | 5 ft 10 in |
| Load floor height | 713 mm | 2 ft 4 in |
| Kerb weight (approximate) | 2,185 kg | 4,817 lb |
Ford Transit L2H2 AWD
The Ford Transit L2H2 AWD is 5,531 mm (18 ft 2 in) long, 2,059 mm (6 ft 9 in) wide and 2,550 mm (8 ft 4 in) tall, on a 3,300 mm (10 ft 10 in) wheelbase, with a load floor 713 mm (2 ft 4 in) off the ground, and 2,946 mm (9 ft 8 in) of floor behind the bulkhead. It weighs about 2,265 kg (4,993 lb) unladen.
Also known as: Short wheelbase, medium roof.
All-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,531 mm | 18 ft 2 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,550 mm | 8 ft 4 in |
| Wheelbase | 3,300 mm | 10 ft 10 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 2,946 mm | 9 ft 8 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 1,786 mm | 5 ft 10 in |
| Load floor height | 713 mm | 2 ft 4 in |
| Kerb weight (approximate) | 2,265 kg | 4,993 lb |

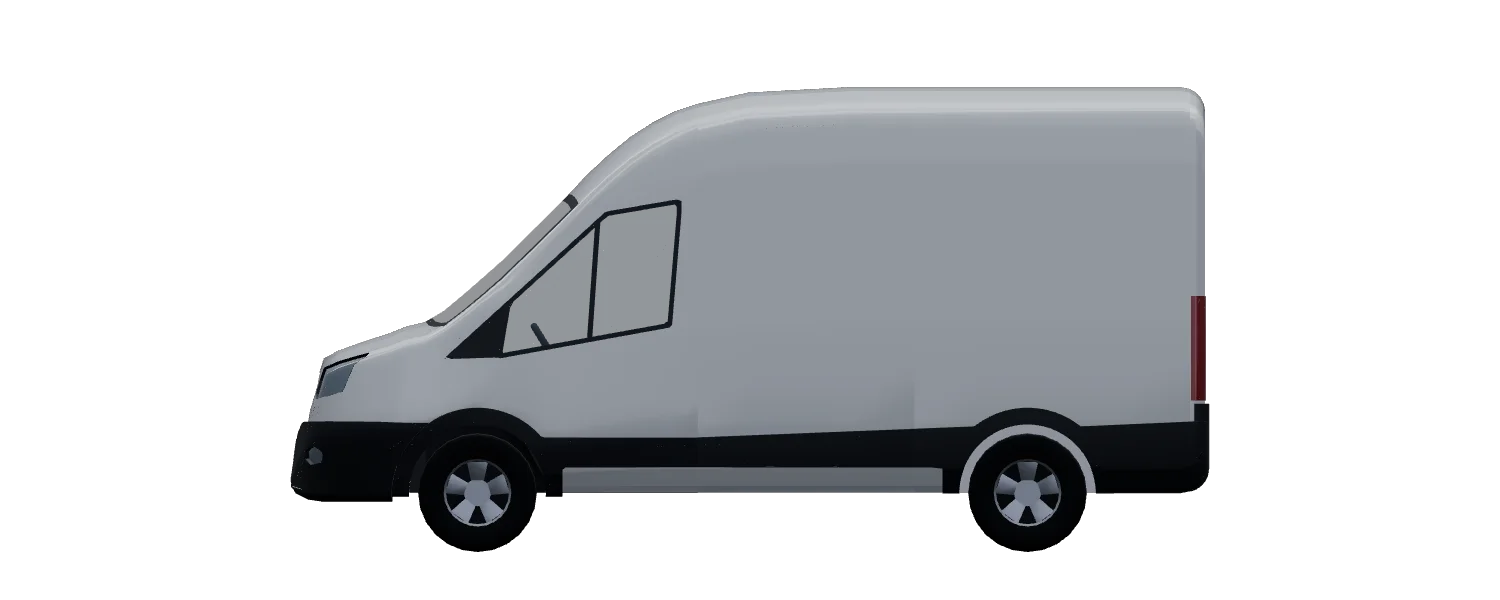

Ford Transit L2H3 FWD
The Ford Transit L2H3 FWD is 5,531 mm (18 ft 2 in) long, 2,059 mm (6 ft 9 in) wide and 2,789 mm (9 ft 2 in) tall, on a 3,300 mm (10 ft 10 in) wheelbase, with a load floor 613 mm (2 ft) off the ground, and 2,946 mm (9 ft 8 in) of floor behind the bulkhead. It weighs about 2,140 kg (4,718 lb) unladen.
Also known as: Short wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,531 mm | 18 ft 2 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,789 mm | 9 ft 2 in |
| Wheelbase | 3,300 mm | 10 ft 10 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 2,946 mm | 9 ft 8 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 2,125 mm | 7 ft |
| Load floor height | 613 mm | 2 ft |
| Kerb weight (approximate) | 2,140 kg | 4,718 lb |
Ford Transit L2H3 RWD
The Ford Transit L2H3 RWD is 5,531 mm (18 ft 2 in) long, 2,059 mm (6 ft 9 in) wide and 2,789 mm (9 ft 2 in) tall, on a 3,300 mm (10 ft 10 in) wheelbase, with a load floor 713 mm (2 ft 4 in) off the ground, and 2,946 mm (9 ft 8 in) of floor behind the bulkhead. It weighs about 2,230 kg (4,916 lb) unladen.
Also known as: Short wheelbase, high roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,531 mm | 18 ft 2 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,789 mm | 9 ft 2 in |
| Wheelbase | 3,300 mm | 10 ft 10 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 2,946 mm | 9 ft 8 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 2,025 mm | 6 ft 8 in |
| Load floor height | 713 mm | 2 ft 4 in |
| Kerb weight (approximate) | 2,230 kg | 4,916 lb |
Ford Transit L2H3 AWD
The Ford Transit L2H3 AWD is 5,531 mm (18 ft 2 in) long, 2,059 mm (6 ft 9 in) wide and 2,789 mm (9 ft 2 in) tall, on a 3,300 mm (10 ft 10 in) wheelbase, with a load floor 713 mm (2 ft 4 in) off the ground, and 2,946 mm (9 ft 8 in) of floor behind the bulkhead. It weighs about 2,310 kg (5,093 lb) unladen.
Also known as: Short wheelbase, high roof.
All-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,531 mm | 18 ft 2 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,789 mm | 9 ft 2 in |
| Wheelbase | 3,300 mm | 10 ft 10 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 2,946 mm | 9 ft 8 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 2,025 mm | 6 ft 8 in |
| Load floor height | 713 mm | 2 ft 4 in |
| Kerb weight (approximate) | 2,310 kg | 5,093 lb |
Ford Transit L3H2 FWD
The Ford Transit L3H2 FWD is 5,981 mm (19 ft 7 in) long, 2,059 mm (6 ft 9 in) wide and 2,547 mm (8 ft 4 in) tall, on a 3,750 mm (12 ft 4 in) wheelbase, with a load floor 613 mm (2 ft) off the ground, and 3,494 mm (11 ft 6 in) of floor behind the bulkhead. It weighs about 2,149 kg (4,738 lb) unladen.
Also known as: Long wheelbase, medium roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,981 mm | 19 ft 7 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,547 mm | 8 ft 4 in |
| Wheelbase | 3,750 mm | 12 ft 4 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 3,494 mm | 11 ft 6 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 1,886 mm | 6 ft 2 in |
| Load floor height | 613 mm | 2 ft |
| Kerb weight (approximate) | 2,149 kg | 4,738 lb |
Ford Transit L3H2 RWD
The Ford Transit L3H2 RWD is 5,981 mm (19 ft 7 in) long, 2,059 mm (6 ft 9 in) wide and 2,547 mm (8 ft 4 in) tall, on a 3,750 mm (12 ft 4 in) wheelbase, with a load floor 713 mm (2 ft 4 in) off the ground, and 3,494 mm (11 ft 6 in) of floor behind the bulkhead. It weighs about 2,237 kg (4,932 lb) unladen.
Also known as: Long wheelbase, medium roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,981 mm | 19 ft 7 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,547 mm | 8 ft 4 in |
| Wheelbase | 3,750 mm | 12 ft 4 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 3,494 mm | 11 ft 6 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 1,786 mm | 5 ft 10 in |
| Load floor height | 713 mm | 2 ft 4 in |
| Kerb weight (approximate) | 2,237 kg | 4,932 lb |
Ford Transit L3H2 AWD
The Ford Transit L3H2 AWD is 5,981 mm (19 ft 7 in) long, 2,059 mm (6 ft 9 in) wide and 2,547 mm (8 ft 4 in) tall, on a 3,750 mm (12 ft 4 in) wheelbase, with a load floor 713 mm (2 ft 4 in) off the ground, and 3,494 mm (11 ft 6 in) of floor behind the bulkhead. It weighs about 2,317 kg (5,108 lb) unladen.
Also known as: Long wheelbase, medium roof.
All-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,981 mm | 19 ft 7 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,547 mm | 8 ft 4 in |
| Wheelbase | 3,750 mm | 12 ft 4 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 3,494 mm | 11 ft 6 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 1,786 mm | 5 ft 10 in |
| Load floor height | 713 mm | 2 ft 4 in |
| Kerb weight (approximate) | 2,317 kg | 5,108 lb |

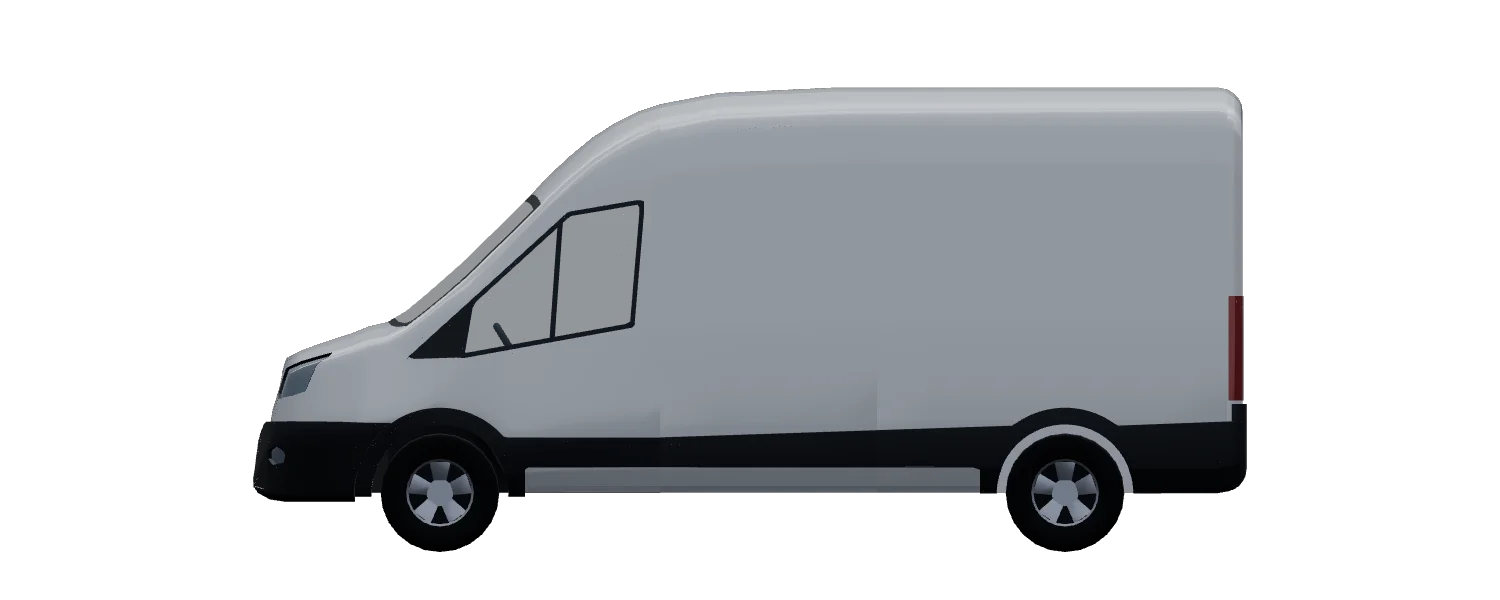

Ford Transit L3H3 FWD
The Ford Transit L3H3 FWD is 5,981 mm (19 ft 7 in) long, 2,059 mm (6 ft 9 in) wide and 2,786 mm (9 ft 2 in) tall, on a 3,750 mm (12 ft 4 in) wheelbase, with a load floor 613 mm (2 ft) off the ground, and 3,494 mm (11 ft 6 in) of floor behind the bulkhead. It weighs about 2,194 kg (4,837 lb) unladen.
Also known as: Long wheelbase, high roof.
Front-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,981 mm | 19 ft 7 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,786 mm | 9 ft 2 in |
| Wheelbase | 3,750 mm | 12 ft 4 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 3,494 mm | 11 ft 6 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 2,125 mm | 7 ft |
| Load floor height | 613 mm | 2 ft |
| Kerb weight (approximate) | 2,194 kg | 4,837 lb |
Ford Transit L3H3 RWD
The Ford Transit L3H3 RWD is 5,981 mm (19 ft 7 in) long, 2,059 mm (6 ft 9 in) wide and 2,786 mm (9 ft 2 in) tall, on a 3,750 mm (12 ft 4 in) wheelbase, with a load floor 713 mm (2 ft 4 in) off the ground, and 3,494 mm (11 ft 6 in) of floor behind the bulkhead. It weighs about 2,282 kg (5,031 lb) unladen.
Also known as: Long wheelbase, high roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,981 mm | 19 ft 7 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,786 mm | 9 ft 2 in |
| Wheelbase | 3,750 mm | 12 ft 4 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 3,494 mm | 11 ft 6 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 2,025 mm | 6 ft 8 in |
| Load floor height | 713 mm | 2 ft 4 in |
| Kerb weight (approximate) | 2,282 kg | 5,031 lb |
Ford Transit L3H3 AWD
The Ford Transit L3H3 AWD is 5,981 mm (19 ft 7 in) long, 2,059 mm (6 ft 9 in) wide and 2,786 mm (9 ft 2 in) tall, on a 3,750 mm (12 ft 4 in) wheelbase, with a load floor 713 mm (2 ft 4 in) off the ground, and 3,494 mm (11 ft 6 in) of floor behind the bulkhead. It weighs about 2,362 kg (5,207 lb) unladen.
Also known as: Long wheelbase, high roof.
All-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,981 mm | 19 ft 7 in |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,786 mm | 9 ft 2 in |
| Wheelbase | 3,750 mm | 12 ft 4 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 3,494 mm | 11 ft 6 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 2,025 mm | 6 ft 8 in |
| Load floor height | 713 mm | 2 ft 4 in |
| Kerb weight (approximate) | 2,362 kg | 5,207 lb |

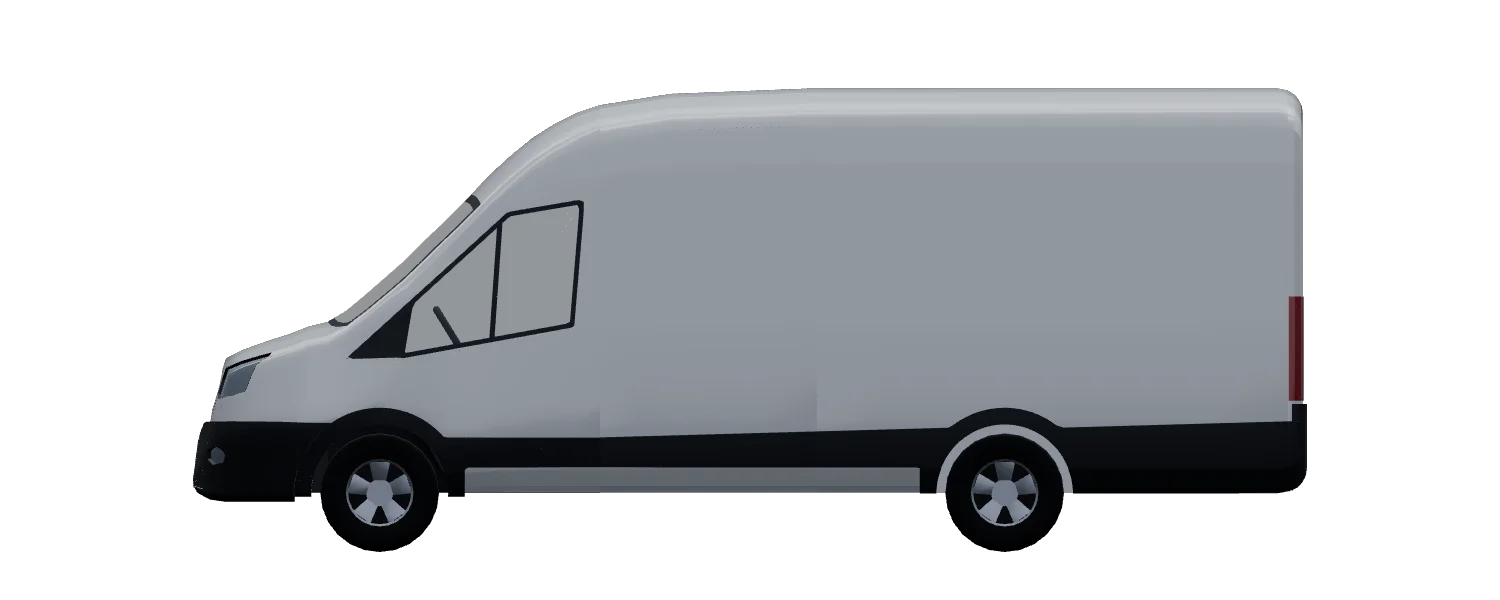

Ford Transit L4H3 RWD
The Ford Transit L4H3 RWD is 6,704 mm (22 ft) long, 2,059 mm (6 ft 9 in) wide and 2,781 mm (9 ft 1 in) tall, on a 3,750 mm (12 ft 4 in) wheelbase, with a load floor 713 mm (2 ft 4 in) off the ground, and 4,217 mm (13 ft 10 in) of floor behind the bulkhead. It weighs about 2,393 kg (5,276 lb) unladen.
Also known as: Extra-long wheelbase, high roof; Jumbo.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,704 mm | 22 ft |
| Overall width (excluding mirrors) | 2,059 mm | 6 ft 9 in |
| Overall height | 2,781 mm | 9 ft 1 in |
| Wheelbase | 3,750 mm | 12 ft 4 in |
| Side door opening | 1,300 mm | 4 ft 3 in |
| Load length at floor | 4,217 mm | 13 ft 10 in |
| Maximum internal load width | 1,784 mm | 5 ft 10 in |
| Maximum internal load height | 2,025 mm | 6 ft 8 in |
| Load floor height | 713 mm | 2 ft 4 in |
| Kerb weight (approximate) | 2,393 kg | 5,276 lb |
Every Ford Transit version, side by side
5 sizes across 13 versions: one size can be sold in more than one drive layout, which changes the load floor height, the kerb weight and sometimes the overall height, with the manufacturer's published overall figures side by side. Each one is drawn and specified in full above, in both metric and imperial.
| Version | Length | Width | Height | Wheelbase | Load length | Max load width | Max load height | Load floor | Kerb weight |
|---|---|---|---|---|---|---|---|---|---|
| L2H2 FWD | 5,531 mm18 ft 2 in | 2,059 mm6 ft 9 in | 2,550 mm8 ft 4 in | 3,300 mm10 ft 10 in | 2,946 mm9 ft 8 in | 1,784 mm5 ft 10 in | 1,886 mm6 ft 2 in | 613 mm2 ft | 2,095 kg4,619 lb |
| L2H2 RWD | 5,531 mm18 ft 2 in | 2,059 mm6 ft 9 in | 2,550 mm8 ft 4 in | 3,300 mm10 ft 10 in | 2,946 mm9 ft 8 in | 1,784 mm5 ft 10 in | 1,786 mm5 ft 10 in | 713 mm2 ft 4 in | 2,185 kg4,817 lb |
| L2H2 AWD | 5,531 mm18 ft 2 in | 2,059 mm6 ft 9 in | 2,550 mm8 ft 4 in | 3,300 mm10 ft 10 in | 2,946 mm9 ft 8 in | 1,784 mm5 ft 10 in | 1,786 mm5 ft 10 in | 713 mm2 ft 4 in | 2,265 kg4,993 lb |
| L2H3 FWD | 5,531 mm18 ft 2 in | 2,059 mm6 ft 9 in | 2,789 mm9 ft 2 in | 3,300 mm10 ft 10 in | 2,946 mm9 ft 8 in | 1,784 mm5 ft 10 in | 2,125 mm7 ft | 613 mm2 ft | 2,140 kg4,718 lb |
| L2H3 RWD | 5,531 mm18 ft 2 in | 2,059 mm6 ft 9 in | 2,789 mm9 ft 2 in | 3,300 mm10 ft 10 in | 2,946 mm9 ft 8 in | 1,784 mm5 ft 10 in | 2,025 mm6 ft 8 in | 713 mm2 ft 4 in | 2,230 kg4,916 lb |
| L2H3 AWD | 5,531 mm18 ft 2 in | 2,059 mm6 ft 9 in | 2,789 mm9 ft 2 in | 3,300 mm10 ft 10 in | 2,946 mm9 ft 8 in | 1,784 mm5 ft 10 in | 2,025 mm6 ft 8 in | 713 mm2 ft 4 in | 2,310 kg5,093 lb |
| L3H2 FWD | 5,981 mm19 ft 7 in | 2,059 mm6 ft 9 in | 2,547 mm8 ft 4 in | 3,750 mm12 ft 4 in | 3,494 mm11 ft 6 in | 1,784 mm5 ft 10 in | 1,886 mm6 ft 2 in | 613 mm2 ft | 2,149 kg4,738 lb |
| L3H2 RWD | 5,981 mm19 ft 7 in | 2,059 mm6 ft 9 in | 2,547 mm8 ft 4 in | 3,750 mm12 ft 4 in | 3,494 mm11 ft 6 in | 1,784 mm5 ft 10 in | 1,786 mm5 ft 10 in | 713 mm2 ft 4 in | 2,237 kg4,932 lb |
| L3H2 AWD | 5,981 mm19 ft 7 in | 2,059 mm6 ft 9 in | 2,547 mm8 ft 4 in | 3,750 mm12 ft 4 in | 3,494 mm11 ft 6 in | 1,784 mm5 ft 10 in | 1,786 mm5 ft 10 in | 713 mm2 ft 4 in | 2,317 kg5,108 lb |
| L3H3 FWD | 5,981 mm19 ft 7 in | 2,059 mm6 ft 9 in | 2,786 mm9 ft 2 in | 3,750 mm12 ft 4 in | 3,494 mm11 ft 6 in | 1,784 mm5 ft 10 in | 2,125 mm7 ft | 613 mm2 ft | 2,194 kg4,837 lb |
| L3H3 RWD | 5,981 mm19 ft 7 in | 2,059 mm6 ft 9 in | 2,786 mm9 ft 2 in | 3,750 mm12 ft 4 in | 3,494 mm11 ft 6 in | 1,784 mm5 ft 10 in | 2,025 mm6 ft 8 in | 713 mm2 ft 4 in | 2,282 kg5,031 lb |
| L3H3 AWD | 5,981 mm19 ft 7 in | 2,059 mm6 ft 9 in | 2,786 mm9 ft 2 in | 3,750 mm12 ft 4 in | 3,494 mm11 ft 6 in | 1,784 mm5 ft 10 in | 2,025 mm6 ft 8 in | 713 mm2 ft 4 in | 2,362 kg5,207 lb |
| L4H3 RWD | 6,704 mm22 ft | 2,059 mm6 ft 9 in | 2,781 mm9 ft 1 in | 3,750 mm12 ft 4 in | 4,217 mm13 ft 10 in | 1,784 mm5 ft 10 in | 2,025 mm6 ft 8 in | 713 mm2 ft 4 in | 2,393 kg5,276 lb |
Lengths exclude mirrors. Kerb weight is approximate - see how these figures were sourced at the bottom of the page.
Compare the Ford Transit
Rival vans (16)
- Ford Transit vs Mercedes-Benz Sprinter
- Ford Transit vs Renault Master
- Ford Transit vs Volkswagen Crafter
- Ford Transit vs Iveco Daily
- Fiat Ducato vs Ford Transit
- Ford Transit vs Vauxhall Movano (pre-2021)
- Ford Transit vs Opel Movano (pre-2021)
- Ford Transit vs Nissan NV400
- Ford Transit vs Nissan Interstar
- Ford Transit vs MAN TGE
- Ford Transit vs Peugeot Boxer
- Citroën Relay vs Ford Transit
- Citroën Jumper vs Ford Transit
- Ford Transit vs Toyota Proace Max
- Ford Transit vs Vauxhall Movano (2021 on)
- Ford Transit vs Opel Movano (2021 on)
One size up (1)
Two sizes of one van (3)
How to read these figures
Kerb weights are researched from published manufacturer data, read on 5 August 2026. Basis: 2.0 EcoBlue 130 PS diesel, 3500 kg GVW (350 series), base FWD (kerb ~engine-tune-independent).
Kerb weight (curb weight in North America) is the unladen mass in running order (all fluids, a 90% full fuel tank and a 75 kg driver), for a base-specification panel van. It is researched and approximate: a real van with options fitted will weigh more, and VanCAD lets you edit the figure on your own design.
Load length is the manufacturer's published floor length behind the bulkhead, measured at floor level in the bare van. Lining, battens and a false floor all take from it, and the figure says nothing about the height or width available above it.
Interior figures are the manufacturer's published load length at floor, maximum internal load width and maximum internal load height, where available. These are before conversion: lining, insulation and flooring reduce usable space, and maximum dimensions do not apply everywhere inside the van. Check your own vehicle before cutting or building. VanCAD's traced interior shapes are illustrative and are never used as published measurements.
Maximum internal load width and height sources (Ford Transit): www.ford.co.uk
VanCAD models the mainstream panel van bodies and drive layouts for each van, not every factory option. A maker may also sell four-wheel-drive, chassis-cab or crew-van versions that are not listed here, so anything on this page about which layouts a van comes in describes the versions VanCAD offers rather than the maker's full range.
Source: www.ford.co.uk
Will your layout fit?
Load a Ford Transit into the browser, place a bed, a kitchen and a shower at real millimetre sizes, and read back the weight you have added. Free, with no install.
