Iveco Daily dimensions
6th gen (2014-present, 2019 facelift), 35S single rear wheel
Published exterior dimensions for all 9 Iveco Daily panel van sizes, with the wheelbase, the load floor height and the unladen weight you start a conversion from. Every size below can be loaded into the free 3D planner.
The Daily is the outlier here, and its numbers say so repeatedly. It is the only van VanCAD models as rear-wheel drive throughout, which puts its load floor at 695 mm on every body. That is the highest floor on this site you cannot get away from by picking a different drive layout, and it is the first thing to design around. What that buys is size: nine bodies, more than any other badge, topping out at a 7,680 mm L5H2 with 5,125 mm of floor, and an L3H3 that is the tallest van here at 2,860 mm. If you want the most interior for the money and the step up does not bother you, it is the one to look at. If you park on a normal drive, it is probably not.

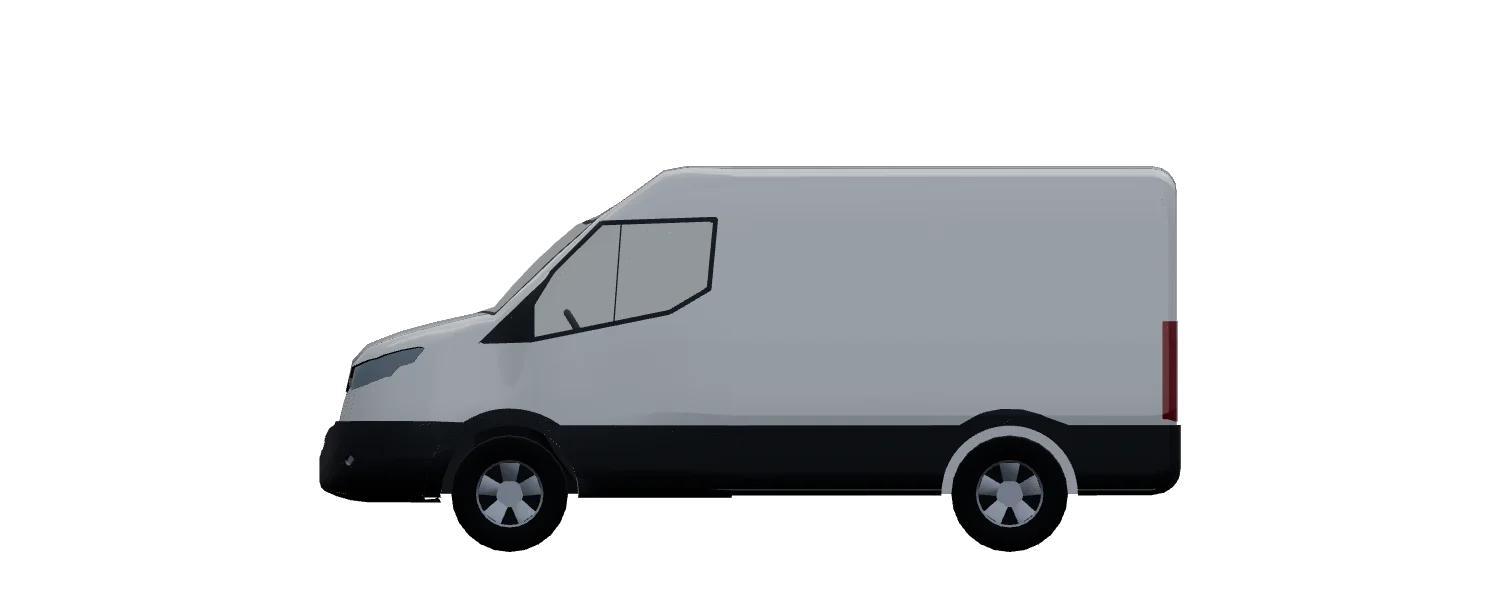

Iveco Daily L1H1
The Iveco Daily L1H1 is 5,198 mm (17 ft 1 in) long, 2,010 mm (6 ft 7 in) wide and 2,315 mm (7 ft 7 in) tall, on a 3,000 mm (9 ft 10 in) wheelbase, with a load floor 695 mm (2 ft 3 in) off the ground, and 2,610 mm (8 ft 7 in) of floor behind the bulkhead. It weighs about 2,070 kg (4,564 lb) unladen.
Also known as: Short wheelbase, low roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,198 mm | 17 ft 1 in |
| Overall width (excluding mirrors) | 2,010 mm | 6 ft 7 in |
| Overall height | 2,315 mm | 7 ft 7 in |
| Wheelbase | 3,000 mm | 9 ft 10 in |
| Side door opening | 1,200 mm | 3 ft 11 in |
| Load length at floor | 2,610 mm | 8 ft 7 in |
| Load floor height | 695 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,070 kg | 4,564 lb |

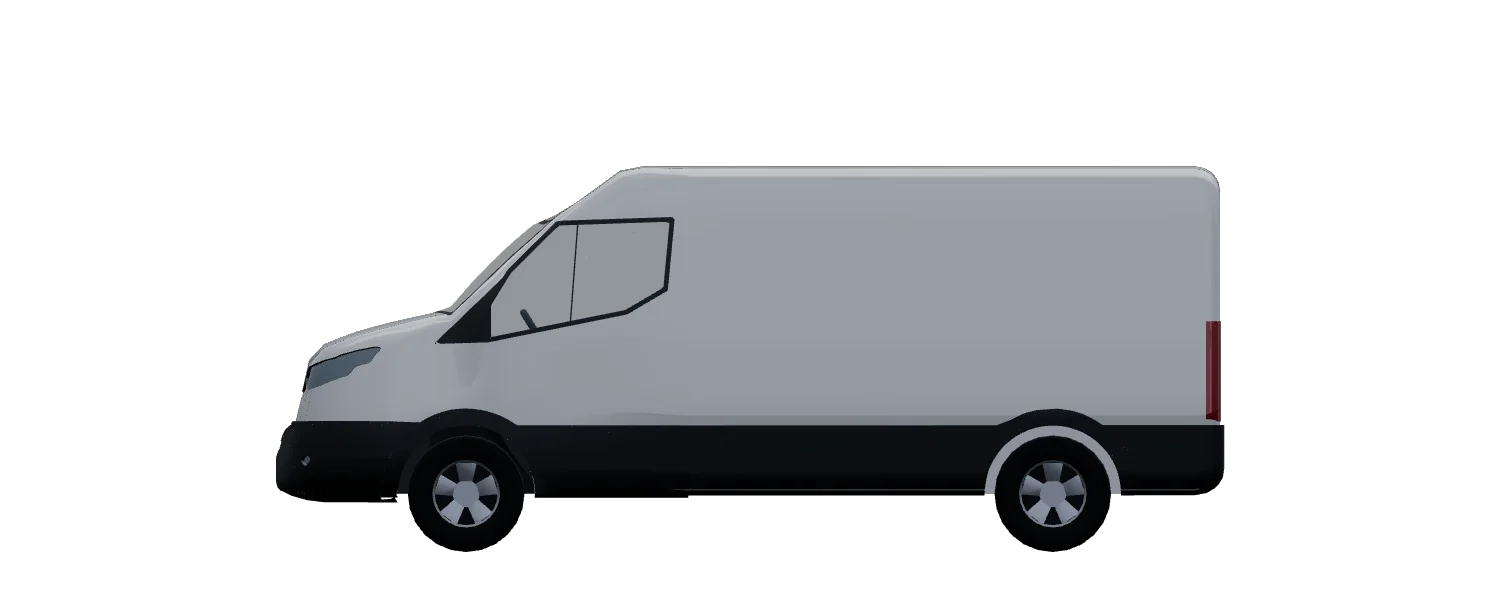

Iveco Daily L2H1
The Iveco Daily L2H1 is 5,720 mm (18 ft 9 in) long, 2,010 mm (6 ft 7 in) wide and 2,314 mm (7 ft 7 in) tall, on a 3,520 mm (11 ft 7 in) wheelbase, with a load floor 695 mm (2 ft 3 in) off the ground, and 3,130 mm (10 ft 3 in) of floor behind the bulkhead. It weighs about 2,160 kg (4,762 lb) unladen.
Also known as: Medium wheelbase, low roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,720 mm | 18 ft 9 in |
| Overall width (excluding mirrors) | 2,010 mm | 6 ft 7 in |
| Overall height | 2,314 mm | 7 ft 7 in |
| Wheelbase | 3,520 mm | 11 ft 7 in |
| Side door opening | 1,200 mm | 3 ft 11 in |
| Load length at floor | 3,130 mm | 10 ft 3 in |
| Load floor height | 695 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,160 kg | 4,762 lb |

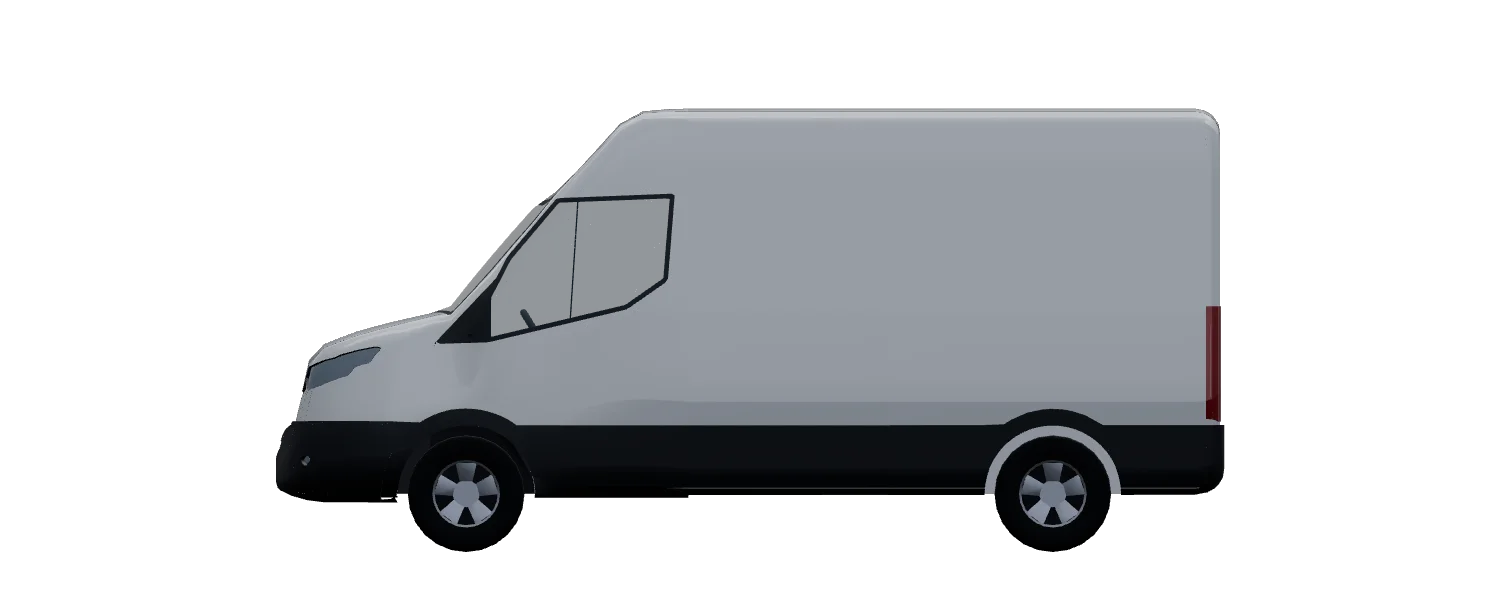

Iveco Daily L2H2
The Iveco Daily L2H2 is 5,720 mm (18 ft 9 in) long, 2,010 mm (6 ft 7 in) wide and 2,660 mm (8 ft 9 in) tall, on a 3,520 mm (11 ft 7 in) wheelbase, with a load floor 695 mm (2 ft 3 in) off the ground, and 3,130 mm (10 ft 3 in) of floor behind the bulkhead. It weighs about 2,200 kg (4,850 lb) unladen.
Also known as: Medium wheelbase, medium roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 5,720 mm | 18 ft 9 in |
| Overall width (excluding mirrors) | 2,010 mm | 6 ft 7 in |
| Overall height | 2,660 mm | 8 ft 9 in |
| Wheelbase | 3,520 mm | 11 ft 7 in |
| Side door opening | 1,200 mm | 3 ft 11 in |
| Load length at floor | 3,130 mm | 10 ft 3 in |
| Load floor height | 695 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,200 kg | 4,850 lb |

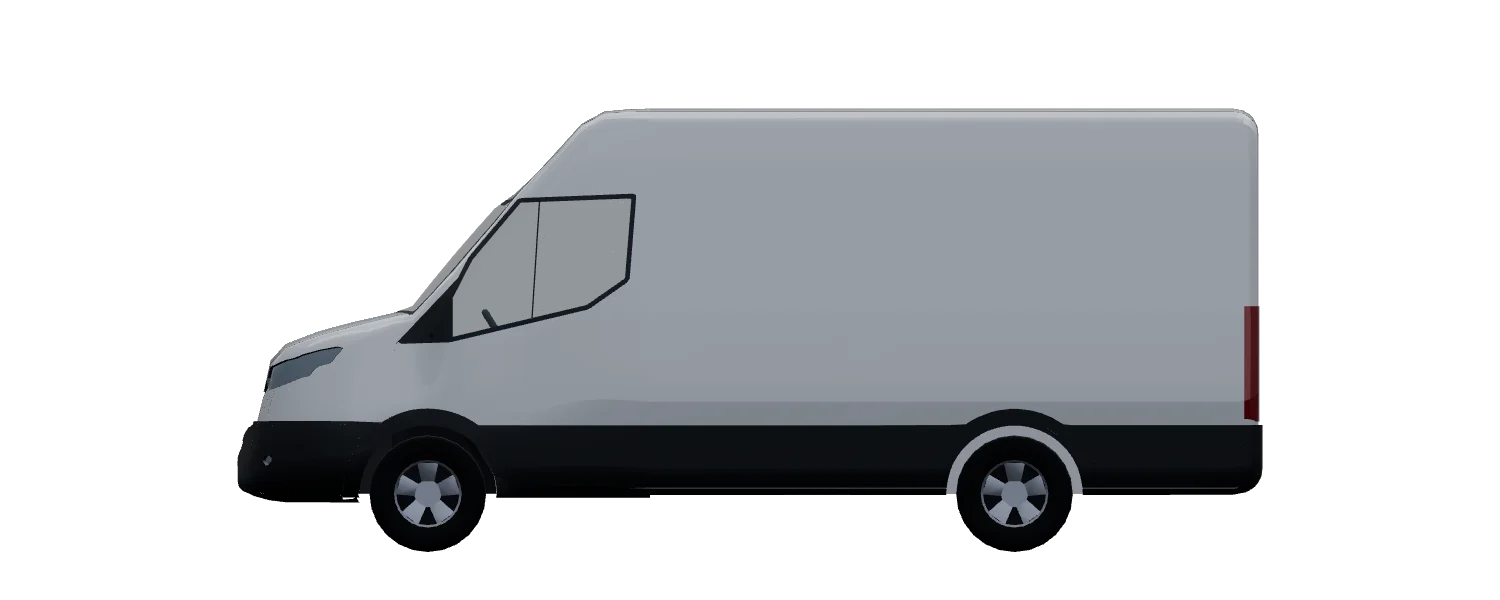

Iveco Daily L3H2
The Iveco Daily L3H2 is 6,180 mm (20 ft 3 in) long, 2,010 mm (6 ft 7 in) wide and 2,660 mm (8 ft 9 in) tall, on a 3,520 mm (11 ft 7 in) wheelbase, with a load floor 695 mm (2 ft 3 in) off the ground, and 3,540 mm (11 ft 7 in) of floor behind the bulkhead. It weighs about 2,360 kg (5,203 lb) unladen.
Also known as: Long wheelbase, medium roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,180 mm | 20 ft 3 in |
| Overall width (excluding mirrors) | 2,010 mm | 6 ft 7 in |
| Overall height | 2,660 mm | 8 ft 9 in |
| Wheelbase | 3,520 mm | 11 ft 7 in |
| Side door opening | 1,200 mm | 3 ft 11 in |
| Load length at floor | 3,540 mm | 11 ft 7 in |
| Load floor height | 695 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,360 kg | 5,203 lb |
Iveco Daily L3H3
The Iveco Daily L3H3 is 6,180 mm (20 ft 3 in) long, 2,010 mm (6 ft 7 in) wide and 2,860 mm (9 ft 5 in) tall, on a 3,520 mm (11 ft 7 in) wheelbase, with a load floor 695 mm (2 ft 3 in) off the ground, and 3,540 mm (11 ft 7 in) of floor behind the bulkhead. It weighs about 2,405 kg (5,302 lb) unladen.
Also known as: Long wheelbase, high roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 6,180 mm | 20 ft 3 in |
| Overall width (excluding mirrors) | 2,010 mm | 6 ft 7 in |
| Overall height | 2,860 mm | 9 ft 5 in |
| Wheelbase | 3,520 mm | 11 ft 7 in |
| Side door opening | 1,200 mm | 3 ft 11 in |
| Load length at floor | 3,540 mm | 11 ft 7 in |
| Load floor height | 695 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,405 kg | 5,302 lb |

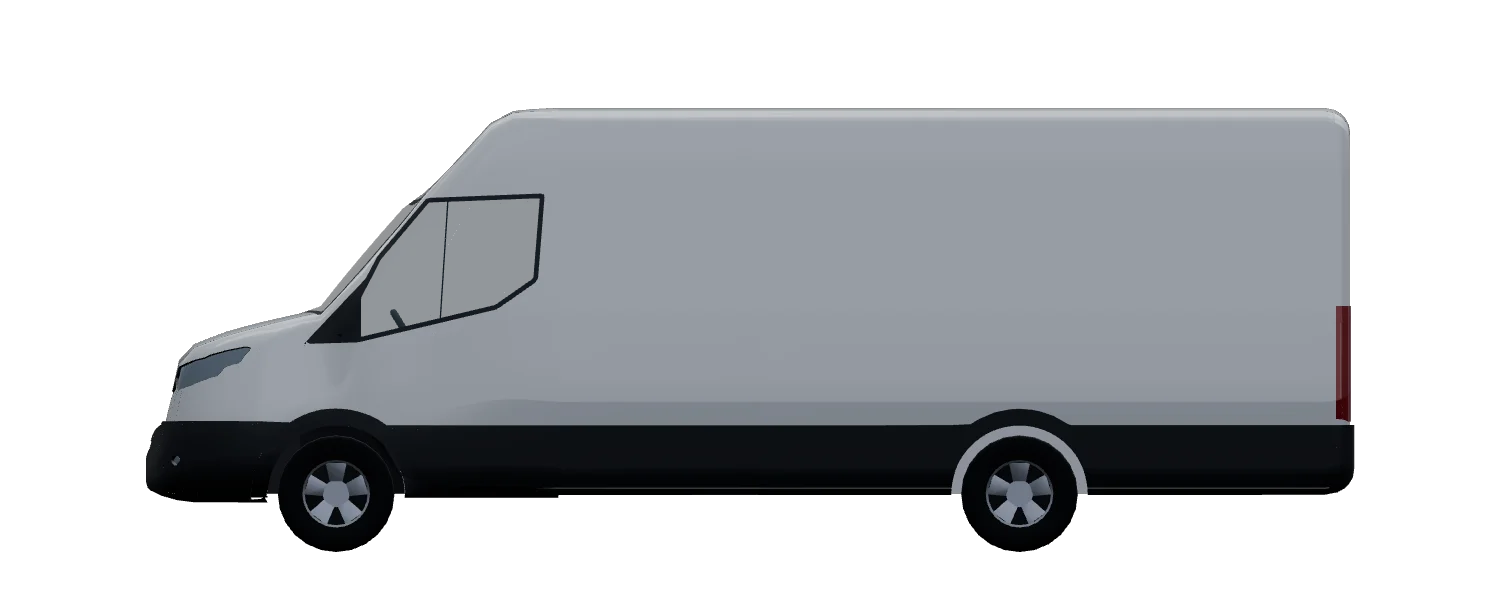

Iveco Daily L4H2
The Iveco Daily L4H2 is 7,280 mm (23 ft 11 in) long, 2,010 mm (6 ft 7 in) wide and 2,663 mm (8 ft 9 in) tall, on a 4,100 mm (13 ft 5 in) wheelbase, with a load floor 695 mm (2 ft 3 in) off the ground, and 4,680 mm (15 ft 4 in) of floor behind the bulkhead. It weighs about 2,560 kg (5,644 lb) unladen.
Also known as: Extra-long wheelbase, medium roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 7,280 mm | 23 ft 11 in |
| Overall width (excluding mirrors) | 2,010 mm | 6 ft 7 in |
| Overall height | 2,663 mm | 8 ft 9 in |
| Wheelbase | 4,100 mm | 13 ft 5 in |
| Side door opening | 1,200 mm | 3 ft 11 in |
| Load length at floor | 4,680 mm | 15 ft 4 in |
| Load floor height | 695 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,560 kg | 5,644 lb |

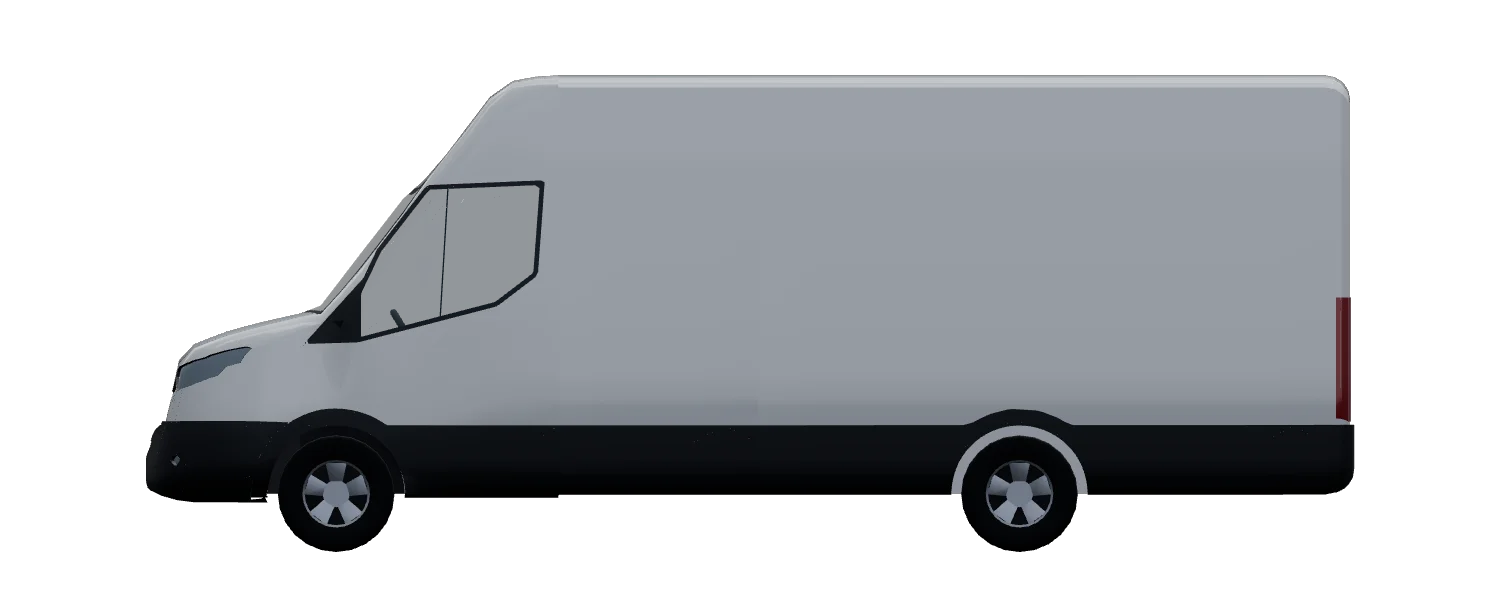

Iveco Daily L4H3
The Iveco Daily L4H3 is 7,280 mm (23 ft 11 in) long, 2,010 mm (6 ft 7 in) wide and 2,860 mm (9 ft 5 in) tall, on a 4,100 mm (13 ft 5 in) wheelbase, with a load floor 695 mm (2 ft 3 in) off the ground, and 4,680 mm (15 ft 4 in) of floor behind the bulkhead. It weighs about 2,605 kg (5,743 lb) unladen.
Also known as: Extra-long wheelbase, high roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 7,280 mm | 23 ft 11 in |
| Overall width (excluding mirrors) | 2,010 mm | 6 ft 7 in |
| Overall height | 2,860 mm | 9 ft 5 in |
| Wheelbase | 4,100 mm | 13 ft 5 in |
| Side door opening | 1,200 mm | 3 ft 11 in |
| Load length at floor | 4,680 mm | 15 ft 4 in |
| Load floor height | 695 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,605 kg | 5,743 lb |

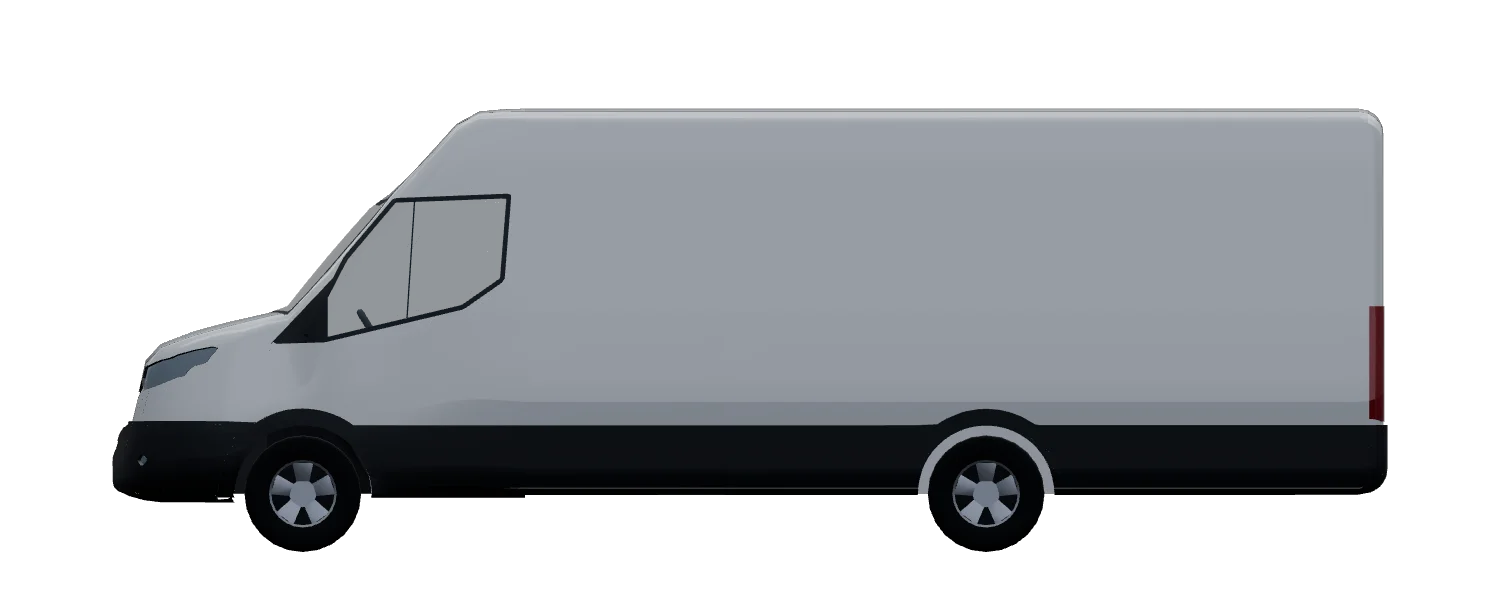

Iveco Daily L5H2
The Iveco Daily L5H2 is 7,680 mm (25 ft 2 in) long, 2,010 mm (6 ft 7 in) wide and 2,660 mm (8 ft 9 in) tall, on a 4,100 mm (13 ft 5 in) wheelbase, with a load floor 695 mm (2 ft 3 in) off the ground, and 5,125 mm (16 ft 10 in) of floor behind the bulkhead. It weighs about 2,635 kg (5,809 lb) unladen.
Also known as: Maxi wheelbase, medium roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 7,680 mm | 25 ft 2 in |
| Overall width (excluding mirrors) | 2,010 mm | 6 ft 7 in |
| Overall height | 2,660 mm | 8 ft 9 in |
| Wheelbase | 4,100 mm | 13 ft 5 in |
| Side door opening | 1,200 mm | 3 ft 11 in |
| Load length at floor | 5,125 mm | 16 ft 10 in |
| Load floor height | 695 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,635 kg | 5,809 lb |

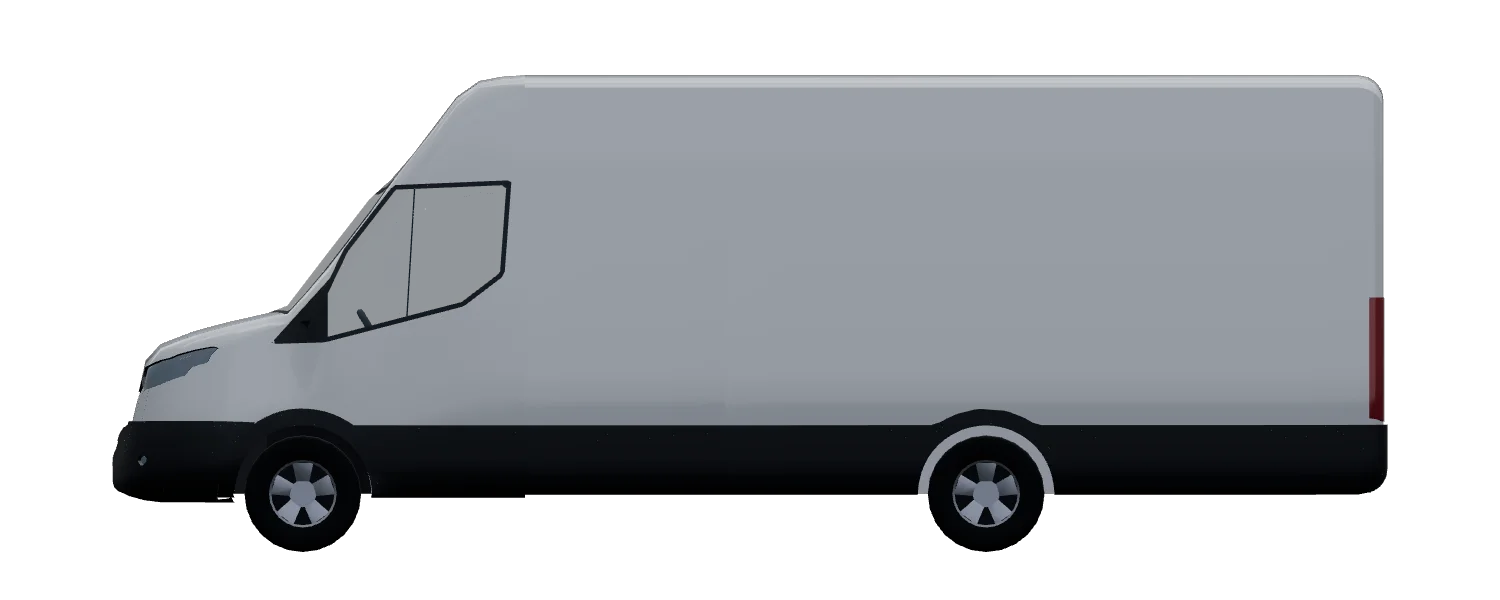

Iveco Daily L5H3
The Iveco Daily L5H3 is 7,680 mm (25 ft 2 in) long, 2,010 mm (6 ft 7 in) wide and 2,860 mm (9 ft 5 in) tall, on a 4,100 mm (13 ft 5 in) wheelbase, with a load floor 695 mm (2 ft 3 in) off the ground, and 5,125 mm (16 ft 10 in) of floor behind the bulkhead. It weighs about 2,680 kg (5,908 lb) unladen.
Also known as: Maxi wheelbase, high roof.
Rear-wheel drive
| Measurement | Metric | Imperial |
|---|---|---|
| Overall length | 7,680 mm | 25 ft 2 in |
| Overall width (excluding mirrors) | 2,010 mm | 6 ft 7 in |
| Overall height | 2,860 mm | 9 ft 5 in |
| Wheelbase | 4,100 mm | 13 ft 5 in |
| Side door opening | 1,200 mm | 3 ft 11 in |
| Load length at floor | 5,125 mm | 16 ft 10 in |
| Load floor height | 695 mm | 2 ft 3 in |
| Kerb weight (approximate) | 2,680 kg | 5,908 lb |
Every Iveco Daily version, side by side
9 sizes, with the manufacturer's published overall figures side by side. Each one is drawn and specified in full above, in both metric and imperial.
| Version | Length | Width | Height | Wheelbase | Load length | Load floor | Kerb weight |
|---|---|---|---|---|---|---|---|
| L1H1 | 5,198 mm17 ft 1 in | 2,010 mm6 ft 7 in | 2,315 mm7 ft 7 in | 3,000 mm9 ft 10 in | 2,610 mm8 ft 7 in | 695 mm2 ft 3 in | 2,070 kg4,564 lb |
| L2H1 | 5,720 mm18 ft 9 in | 2,010 mm6 ft 7 in | 2,314 mm7 ft 7 in | 3,520 mm11 ft 7 in | 3,130 mm10 ft 3 in | 695 mm2 ft 3 in | 2,160 kg4,762 lb |
| L2H2 | 5,720 mm18 ft 9 in | 2,010 mm6 ft 7 in | 2,660 mm8 ft 9 in | 3,520 mm11 ft 7 in | 3,130 mm10 ft 3 in | 695 mm2 ft 3 in | 2,200 kg4,850 lb |
| L3H2 | 6,180 mm20 ft 3 in | 2,010 mm6 ft 7 in | 2,660 mm8 ft 9 in | 3,520 mm11 ft 7 in | 3,540 mm11 ft 7 in | 695 mm2 ft 3 in | 2,360 kg5,203 lb |
| L3H3 | 6,180 mm20 ft 3 in | 2,010 mm6 ft 7 in | 2,860 mm9 ft 5 in | 3,520 mm11 ft 7 in | 3,540 mm11 ft 7 in | 695 mm2 ft 3 in | 2,405 kg5,302 lb |
| L4H2 | 7,280 mm23 ft 11 in | 2,010 mm6 ft 7 in | 2,663 mm8 ft 9 in | 4,100 mm13 ft 5 in | 4,680 mm15 ft 4 in | 695 mm2 ft 3 in | 2,560 kg5,644 lb |
| L4H3 | 7,280 mm23 ft 11 in | 2,010 mm6 ft 7 in | 2,860 mm9 ft 5 in | 4,100 mm13 ft 5 in | 4,680 mm15 ft 4 in | 695 mm2 ft 3 in | 2,605 kg5,743 lb |
| L5H2 | 7,680 mm25 ft 2 in | 2,010 mm6 ft 7 in | 2,660 mm8 ft 9 in | 4,100 mm13 ft 5 in | 5,125 mm16 ft 10 in | 695 mm2 ft 3 in | 2,635 kg5,809 lb |
| L5H3 | 7,680 mm25 ft 2 in | 2,010 mm6 ft 7 in | 2,860 mm9 ft 5 in | 4,100 mm13 ft 5 in | 5,125 mm16 ft 10 in | 695 mm2 ft 3 in | 2,680 kg5,908 lb |
Lengths exclude mirrors. Kerb weight is approximate - see how these figures were sourced at the bottom of the page.
How to read these figures
Kerb weights are researched from published manufacturer data, read on 5 August 2026. Basis: 2.3 F1A diesel (35S12-class), 3.5 t (35S) single-rear-wheel, base output.
Kerb weight (curb weight in North America) is the unladen mass in running order (all fluids, a 90% full fuel tank and a 75 kg driver), for a base-specification panel van at around 3.5 t gross. It is researched and approximate: a real van with options fitted will weigh more, and VanCAD lets you edit the figure on your own design.
Load length is the manufacturer's published floor length behind the bulkhead, measured at floor level in the bare van. Lining, battens and a false floor all take from it, and the figure says nothing about the height or width available above it.
One interior figure is published here, and it is the manufacturer's own: the load length at floor. Everything else about the inside of the van is deliberately absent. VanCAD's interior shapes come from traced reference models, so our own figures for load height, load width or the gap between the wheel arches would be wrong at the precision somebody cutting a bed frame needs, and a cited-and-wrong number is worse than none. Whether a given bed, shower or bike fits is a question the 3D tool answers by putting it in the van.
VanCAD models the mainstream panel van bodies and drive layouts for each van, not every factory option. A maker may also sell four-wheel-drive, chassis-cab or crew-van versions that are not listed here, so anything on this page about which layouts a van comes in describes the versions VanCAD offers rather than the maker's full range.
Source: www.iveco.com
